Performance Chart - 1040
311879F 33

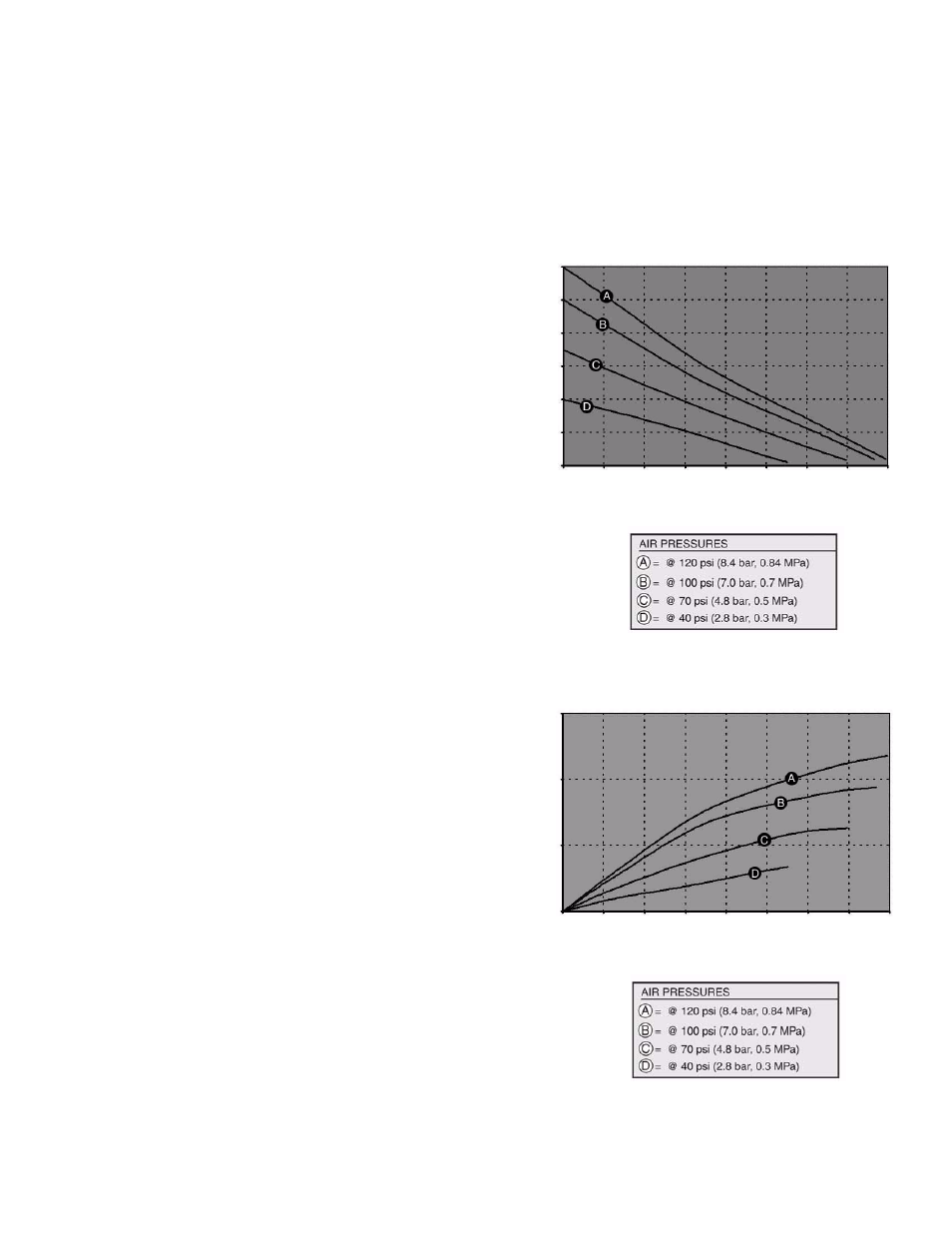

Performance Chart - 1040
Test Conditions: Pump tested in water with inlet submerged
Fluid Pressure Curves
A at 120 psi (0.7 MPa, 7 bar) operating air pressure
B at 100 psi (0.7 MPa, 7 bar) operating air pressure
C at 70 psi (0.48 MPa, 4.8 bar) operating air pressure
D at 40 psi (0.28 MPa, 2.8 bar) operating air pressure
To find Fluid Outlet Pressure
(psi/MPa/bar) at a specific fluid flow (gpm/lpm) and
operating air pressure (psi/MPa/bar):
1. Locate fluid flow rate along bottom of chart.
2. Follow vertical line up to intersection with selected
operating air pressure curve.
3. Follow left to scale to read fluid outlet pressure.
Air Consumption Curves
A at 120 psi (0.7 MPa, 7 bar) operating air pressure
B at 100 psi (0.7 MPa, 7 bar) operating air pressure
C at 70 psi (0.48 MPa, 4.8 bar) operating air pressure
D at 40 psi (0.28 MPa, 2.8 bar) operating air pressure
To find Pump Air Consumption
(scfm or m
3
/min) at a specific fluid flow (gpm/lpm) and
operating air pressure (psi/MPa/bar):
1. Locate fluid flow rate along bottom of chart.
2. Read vertical line up to intersection with selected
operating air pressure curve.
3. Follow left to scale to read air consumption.
5 10 15 20 25 30 35 40
20
40
60
80
100
120
Fluid Outlet
Pres
sur
e
Fluid Flow
0
(0.84, 8.4)
(0.7, 7)
(0.55, 5.5)
(0.41, 4.1)
(0.28, 2.8)
(0.14, 1.4)
(19) (38) (57) (76) (95) (114) (133) (152)
20
40
60
0
(0.41, 4.1)
(0.28, 2.8)
(0.14, 1.4)
5 10 15 20 25 30 35 40
(19) (38) (57) (76) (95) (114) (133) (152)
Air Consumption
ps
i (MP
a,
bar)
gpm (lpm)
Fluid Flow
gpm (lpm)
s
c
fm (m
3
/m
in
)
TI8736A
TI8742A
TI8737A
TI8742A
