Hitachi CMP4221 User Manual
Page 36
36
ENGLISH

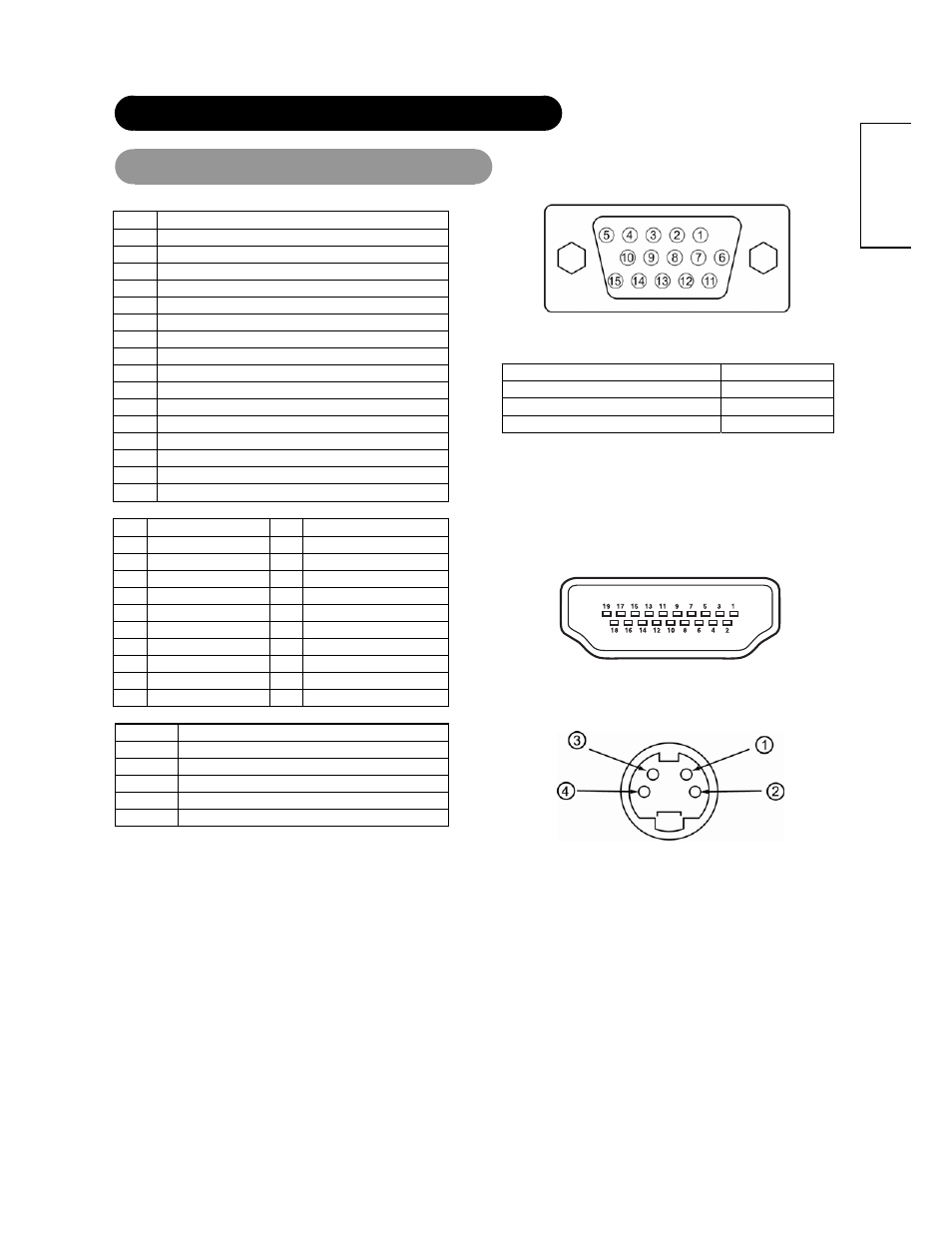

PRODUCT PECIFICATIONS (Continued)
Signal Input
RGB Input (D-sub 15-pin connector)
Pin Input
signal
1 R
2
G or sync on green
3 B
4 No
connection
5 No
connection
6 R.GND
7 G.GND
8 B.GND
9 No
connection
10 GND
11 No
connection
12 SDA
13
H. sync or H/V composite sync
14 V.sync.
V.CLK
15 SCL
Frame GND
HDMI Input
Pin
Input signal
Pin
Input signal
1
TMDS Data2
11
TMDS Clock Shield
2
TMDS Data2 Shield
12
TMDS Clock-
3 TMDS
Data2- 13
CEC
4
TMDS Data 1
14
Reserved(N.C. on device)
5 TMDS
Data1
Shield 15
SCL
6 TMDS
Data1- 16
SDA
7
TMDS Data0
17
DDC/CED Ground
8
TMDS Data0 Shield
18
5V Power
9
TMDS Data0-
19
Hot Plug Detect
10 TMDS
Clock
S-input connector pin specifications
Pin Input
signal
1 Y
2 Y-GND
3 C
4 C-GND
Frame GND
x When different kinds of input signals are simultaneously input to the
monitor via a graphics board or the like, the monitor will automatically
select the signals in the following priority order:
Sync signal type
Priority
H/V separate sync.
1
H/V composite sync.
2
sync.on Green *
3
*
Even in the case of the recommended signals shown on the following
page, there may be instances when correct display is not possible. In
this case, use H/V separate sync, or H/V composite sync.
