COMPONENT NAMES
NOMS D ES COM PO SANT S
Main Unit
Panel

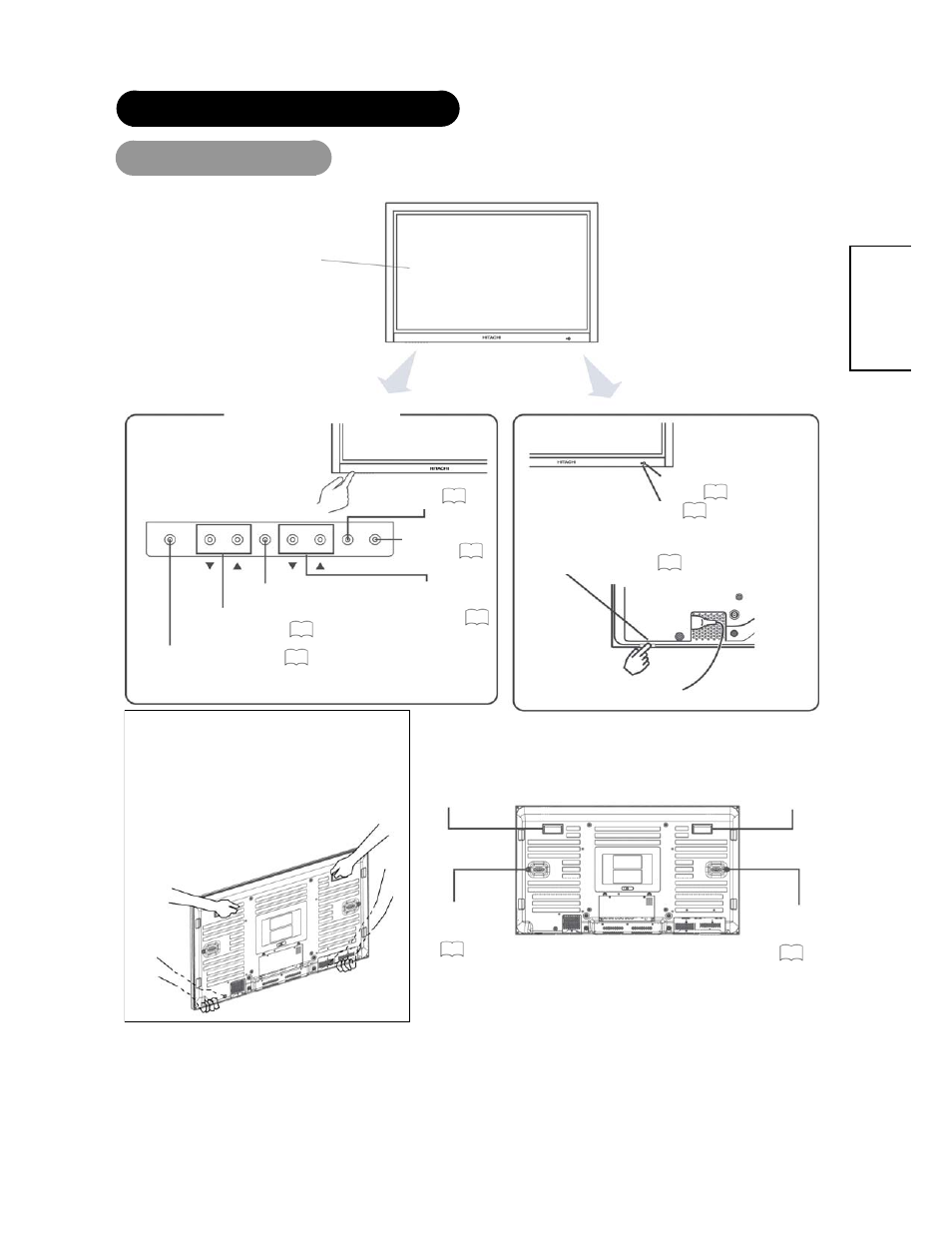

Control Panel
x Adjustment buttons are located
on the bottom.
x The back cover is provided with
indications to distinguish the
adjustment buttons.
x ( ) indicates the function while the MENU is displayed on the screen.
SUB-POWER button (See page 16 )
VOLUME UP/DOWN buttons
( W XADJUST buttons) 17
OK button
PROGRAM UP/DOWN
buttons
( S TSELECT button.) 19
SOURCE button
17
MENU button 19
Remote-control
sensor 11
Indicating lamp 16
Main power switch (See page 16 )
• The main power switch is located at the back, on the lower
surface.
Handgrips
External
Speaker
Terminals
13
External
Speaker
Terminals
13
Handgrips Rear
Caution when moving the main unit
• As this product is heavy, whenever it is moved, two
people are required to transport it safely.
• Whenever the unit is moved it should be lifted forwards
using the two handgrips at the back, and the unit should
then be held at the base on both sides for stability.
Handgrips
Front
