HP High-Definition LCD TV Service Manual
91

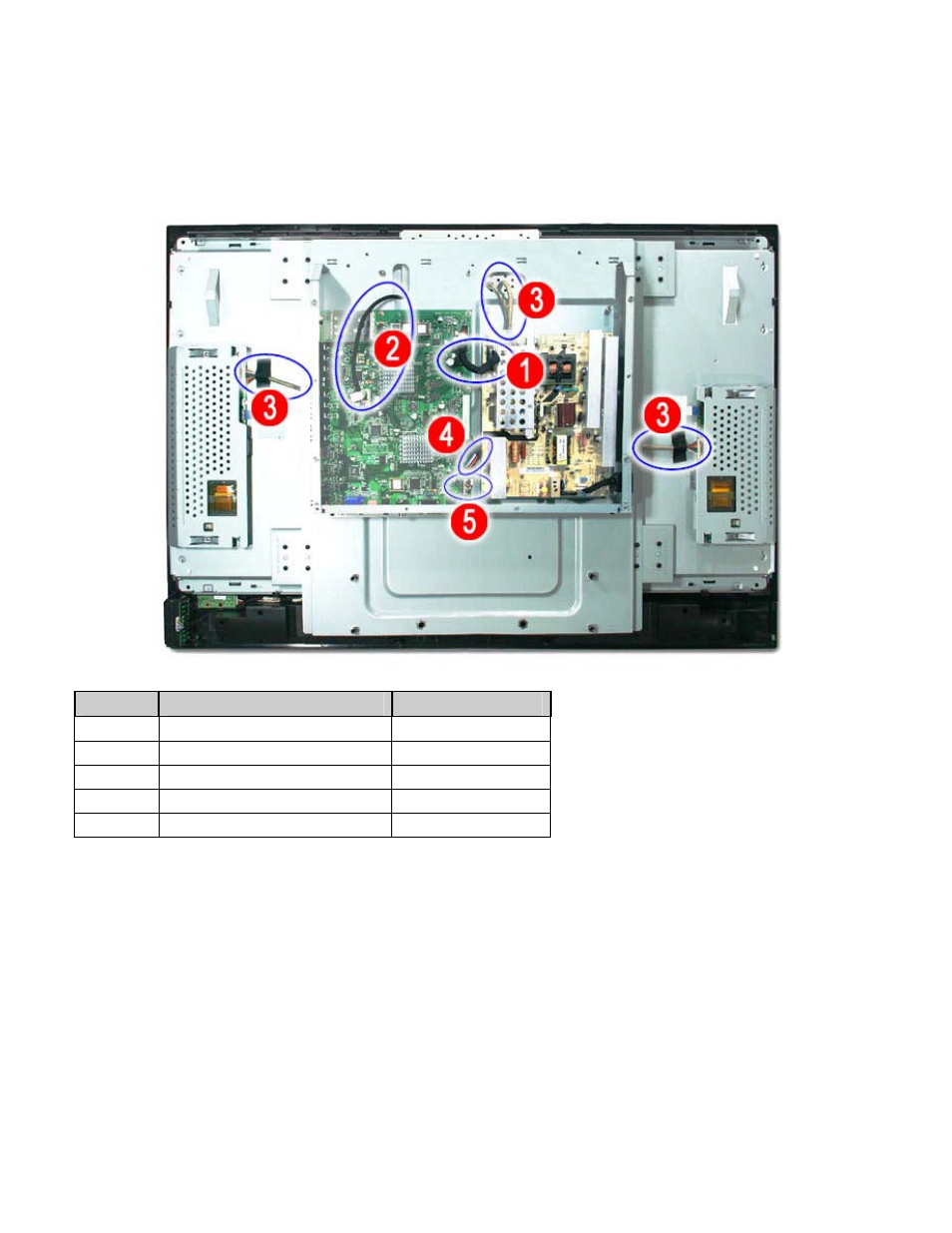

Wires and Cables Wiring
Main Board
No.
Specification
Input and output signal
1 PSU
Ù
Main board
Vs, 5V, 12V
2 Panel
Ù
Main board
XY signal
3 Power
supply
Ù
Inverter board
24V
4 Speaker
Ù
Main board
Audio signal
5 Keypad,
IR
Ù
Main board
ADC signal
