HP High-Definition LCD TV Service Manual

Disassembling the Pedestal

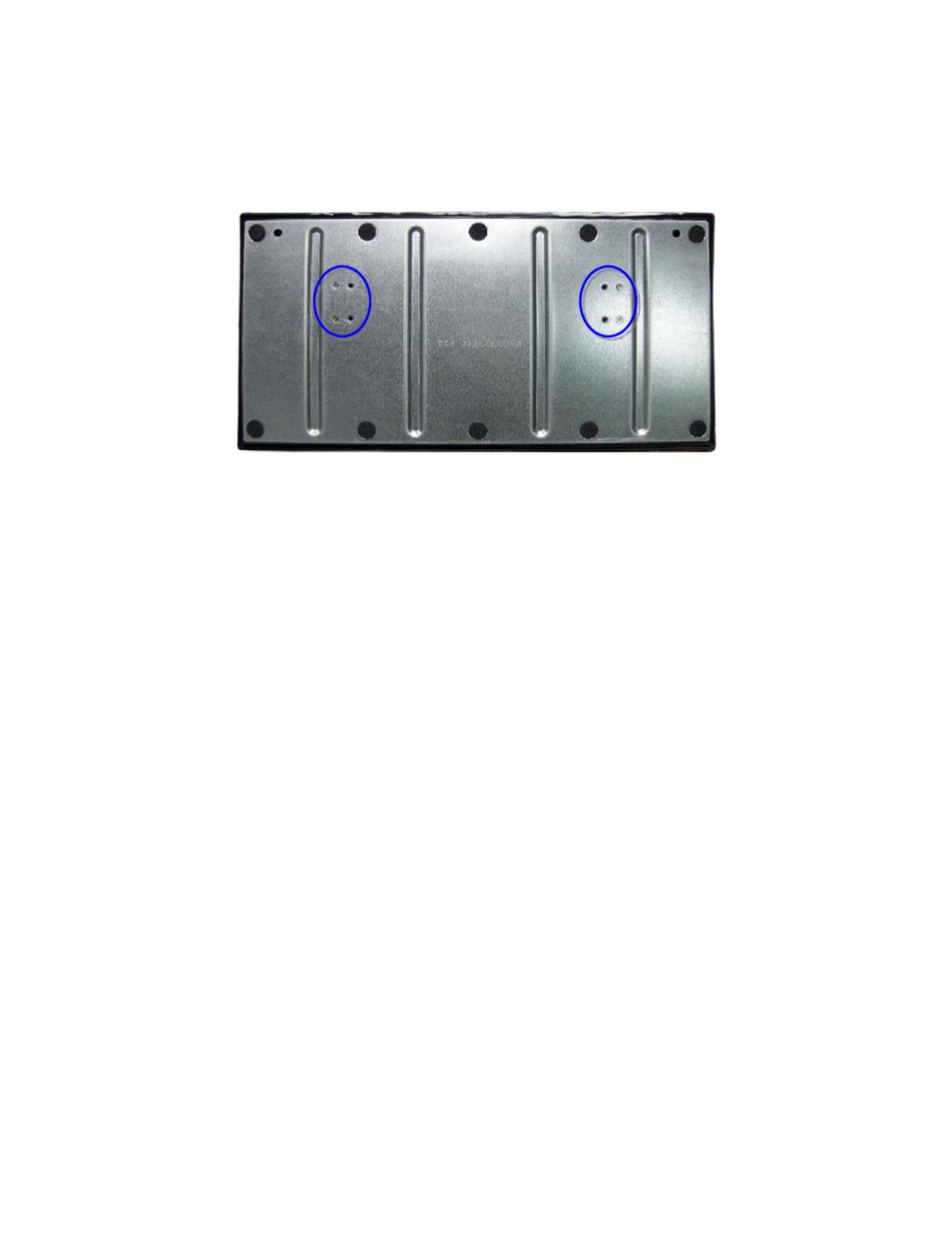

1 Position the pedestal so you can access the screws from the bottom of the pedestal.
2 Remove the four screws that hold the two pieces of the pedestal together.

Note: Hole usage varies depending on model.

Model LT3200/LT3700 shown

3 Separate the two pieces of the pedestal.
