HP High-Definition LCD TV Service Manual

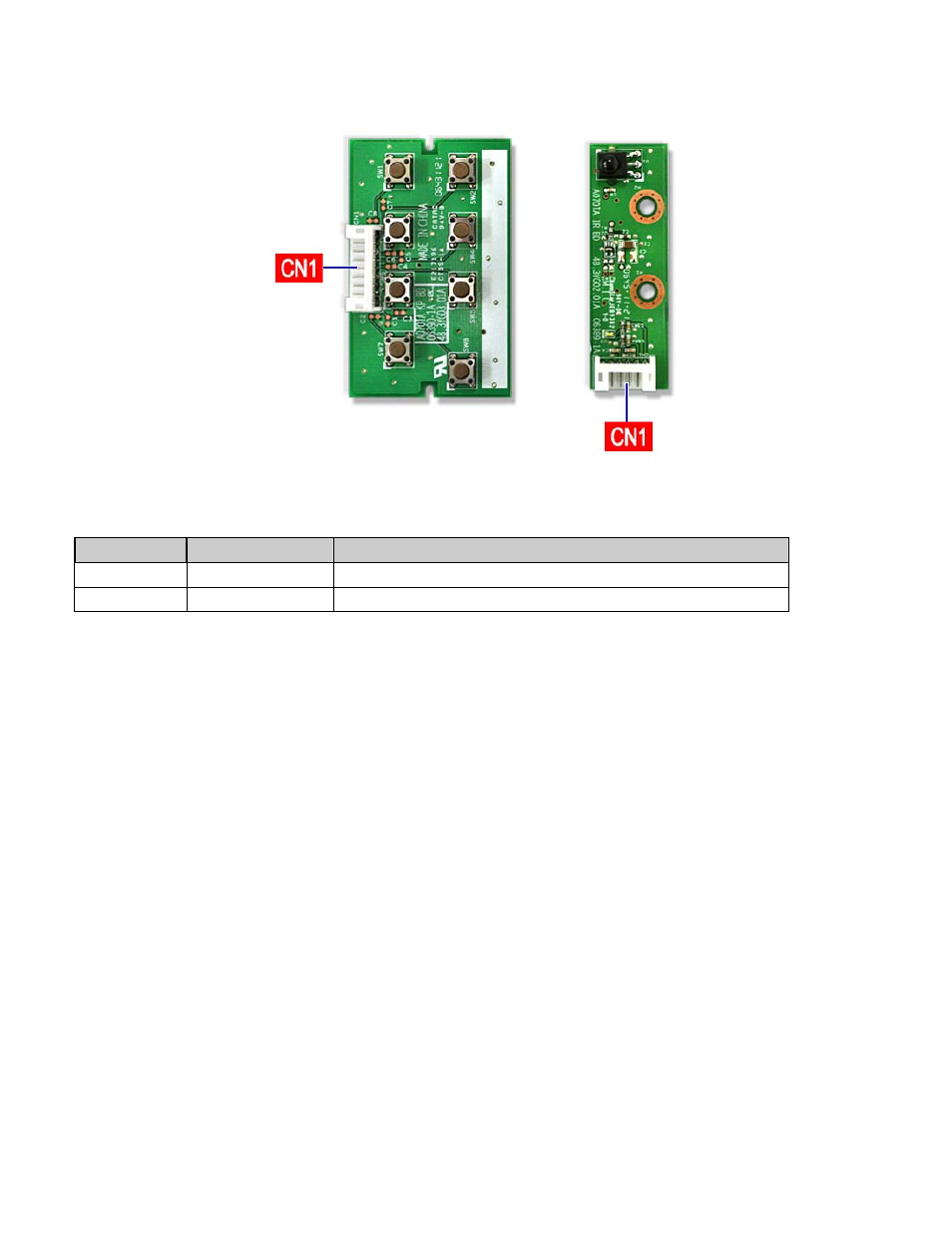

Keypad and IR Boards

Keypad

Board

Connector

Specification

Description

CN1

9 pins/ROHS

Keypad control signal from main board CN12

CN1

6 pins/ROHS

IR signal and LED control from main board CN12
