Read carefully and understand all installation instructions before installing the
beer dispenser. If after completing the process you are still unsure whether the
beer dispenser has been properly installed, we recommend that you contact a
qualified installer.
Installing the Casters
Follow the steps below to install the casters.
1. Empty the inside of the cabinet completely
and lay the beer dispenser down sideways.
We recommend that you place a piece of
cardboard or cloth underneath the cabinet to
prevent dents or scratches to the cabinet.
2. Insert the casters into the holes on the bottom
corners of the cabinet. Tighten each caster by turning the nut clockwise with
the wrench provided.
3. Once all four casters have been tightened evenly, stand the cabinet in an
upright position.
Installing the Beer Tap
Follow the steps below to install the beer tap.
1. First, remove the cabinet tap hole cover
located on the worktop. Firmly grasp
cover, twist and pull upward.
Note: Store this plug in a safe place
as it will be required when
converting the beer dispenser
into a beverage center.
2. Place the gasket over the hoses on the
bottom of the draft arm.
3. Pass the beer tubes through the gasket
to the base of the draft arm.
4. Push both the hoses and the beer
hose through the hole in the worktop
until the draft arm is resting on top
of the cabinet.
5. Align the holes of the draft arm with the gasket and pilot holes on the worktop
of cabinet. Make sure that the faucets are facing the front.
6. Secure the draft arm to the cabinet by inserting four large Phillips Head screws
into the holes and tightening.

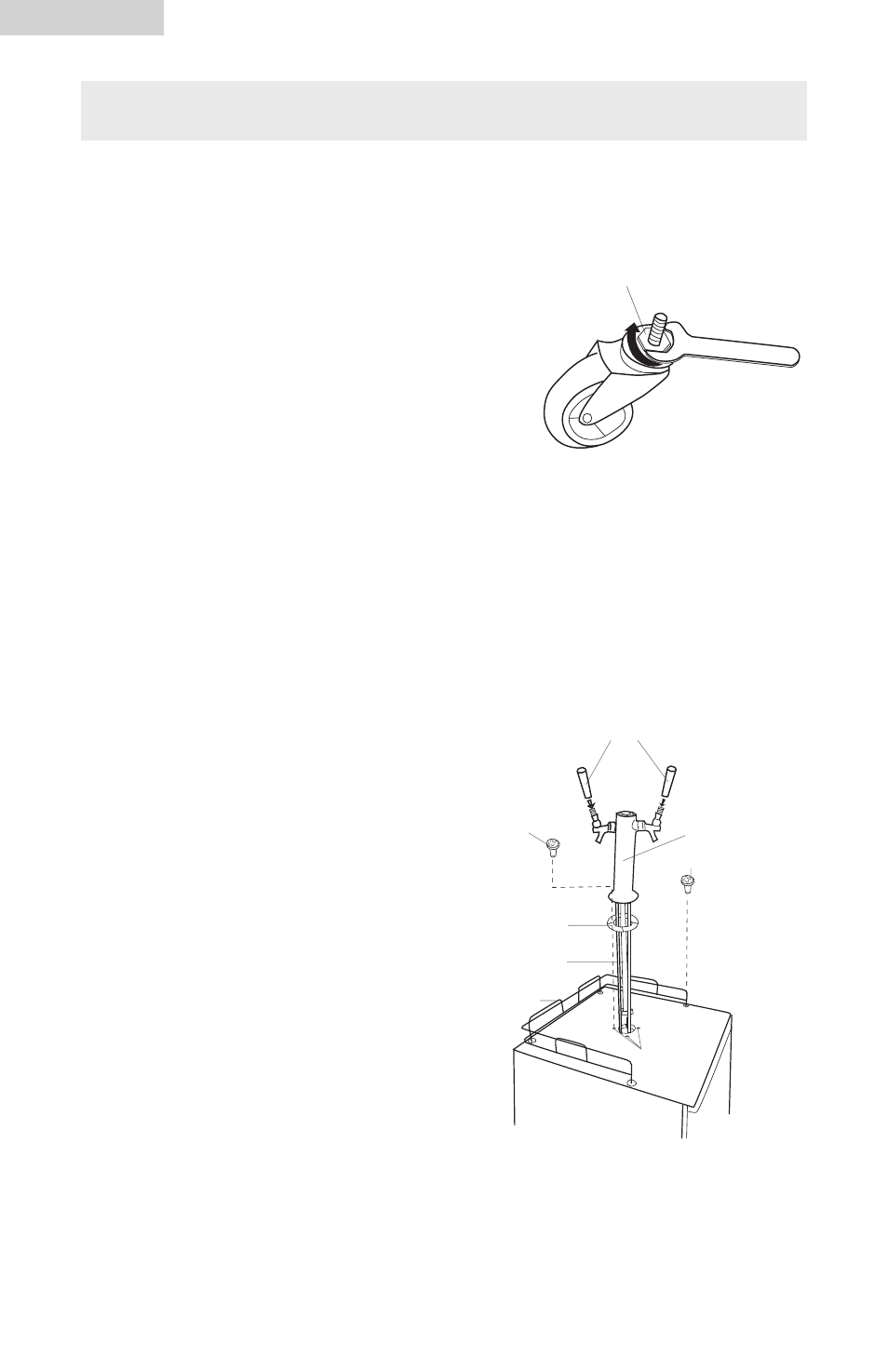

Caster
Wrench
Nut
Large Philip Head
Small Phillips Head
Draft Arm Assembly
Gasket
Beer Hose
Guard Rail
Handle
pilot holes
