Page 16

Setup 16

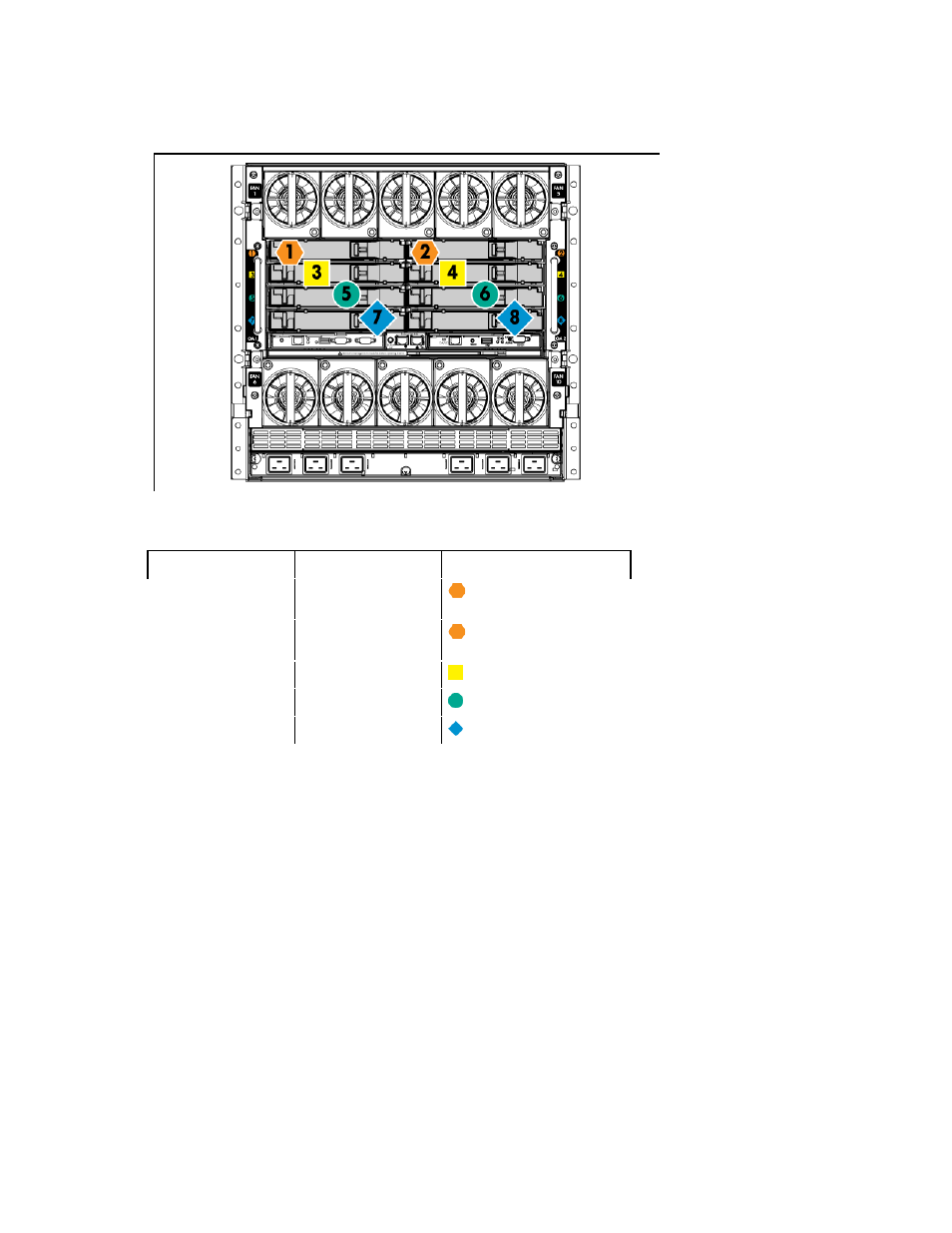

Interconnect bay numbering and device mapping
•
HP BladeSystem c7000 Enclosure
To support network connections for specific signals, install an interconnect module in the bay corresponding
to the embedded NIC or mezzanine signals.
Server blade signal Interconnect bay
Interconnect bay labels
Flex-10 NIC 1
(embedded)
1
Flex-10 NIC 2
(embedded)
2
Mezzanine 1
3 and 4
Mezzanine 2
5 and 6
7 and 8
For detailed port mapping information, see the HP BladeSystem enclosure installation poster or the
HP BladeSystem enclosure setup and installation guide on the HP website
