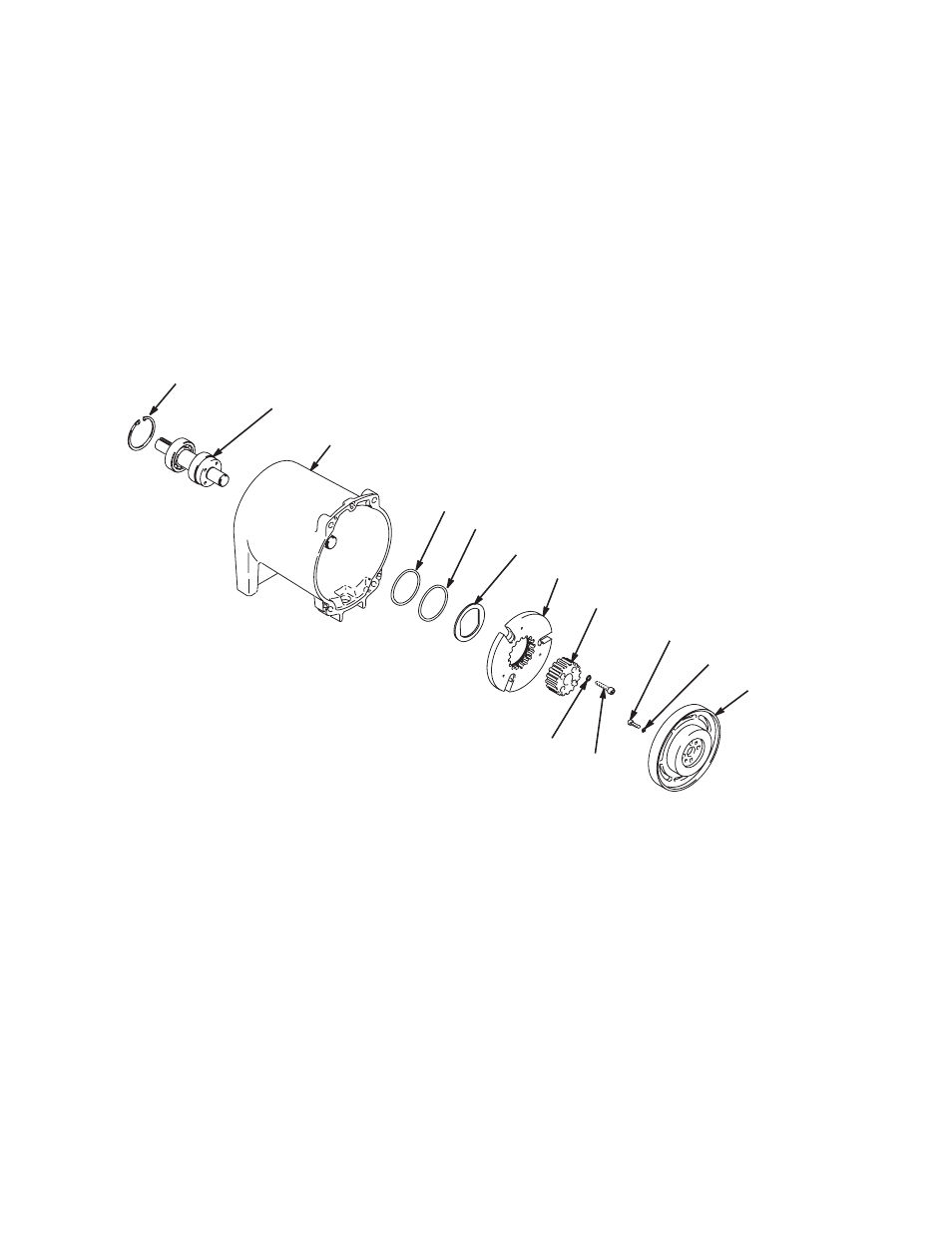

Clutch Housing - Parts Drawing and List
Ref Part Description Qty
19 287519 HOUSING, clutch 1
Includes 19b, 19c, 19e, 19j & 19k
19b 114962 RING, retaining, internal 1
19c 287422 SHAFT, drive, input 1
19e 15E887 HOUSING, clutch 1
19j 115078 O-RING 1
19k 115079 O-RING 1
21 15E894 STOP, armature 1
23 108803* SCREW, hex, socket head 4
24 105510* WASHER, lock, spring (hi-collar) 8
25 * ARMATURE, clutch, 5 in. 1
26 193510* HUB, armature 1
27 * ROTOR, clutch, 5 in. 1
28 101682* SCREW, cap, sch 4
* Included in Clutch Repair Kit 241113
Ref Part Description Qty
19c
19b
23
24
19e
25
26
24
28
27
21
19j
19k
