Displacement Pump

311046H

17

5.

F

IG

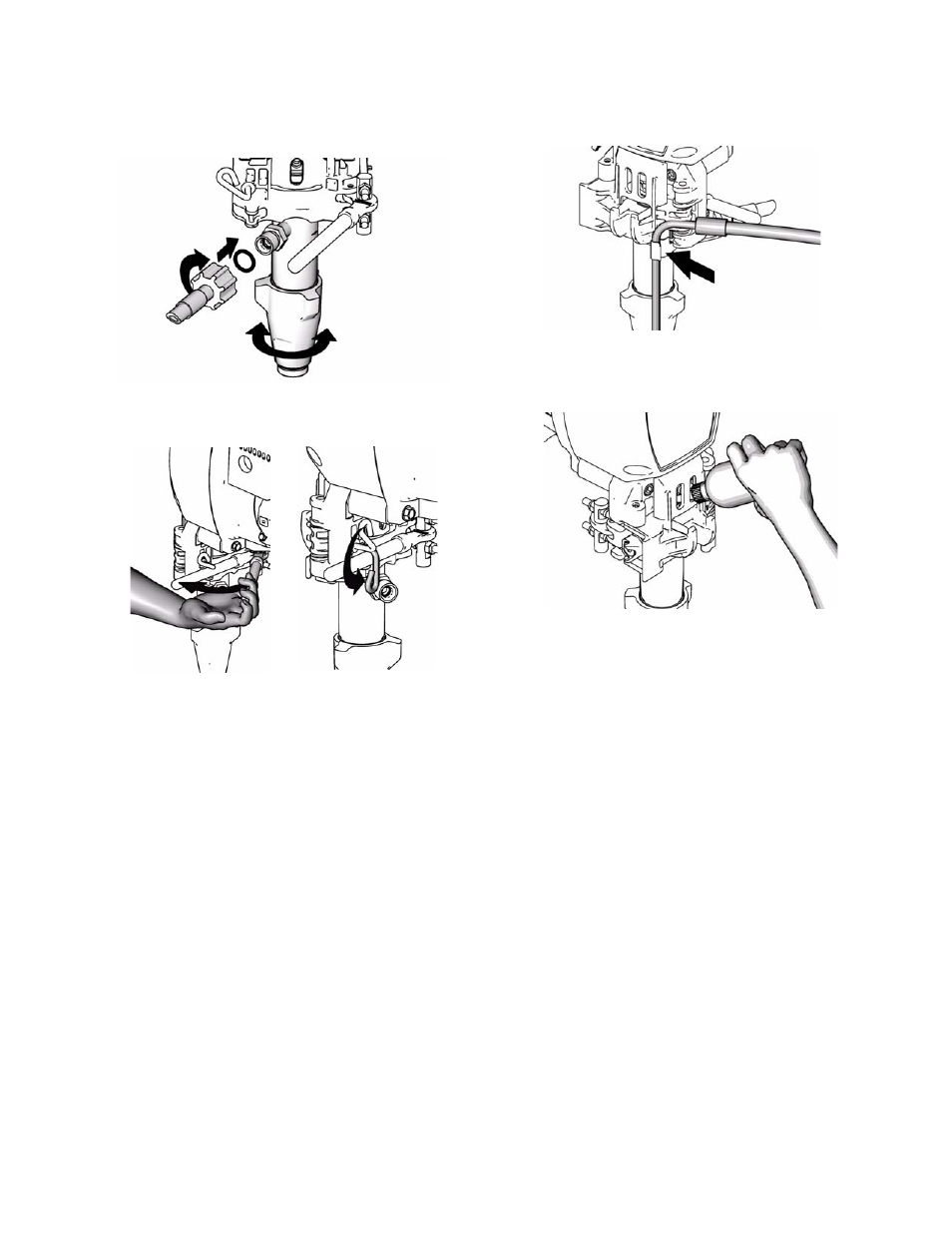

. 22. Rotate pump to align with material hose. Connect

material hose and hand tighten to 70 in-lb

F

IG

. 22

6.

F

IG

. 23. Tighten latch and rotate latch lock into locked position.

F

IG

. 23

7.

F

IG

. 24. Attach drain hose to sprayer.

F

IG

. 24

8.

F

IG

. 25. Fill pump with Graco TSL until fluid flows onto top

of seal.

F

IG

. 25
