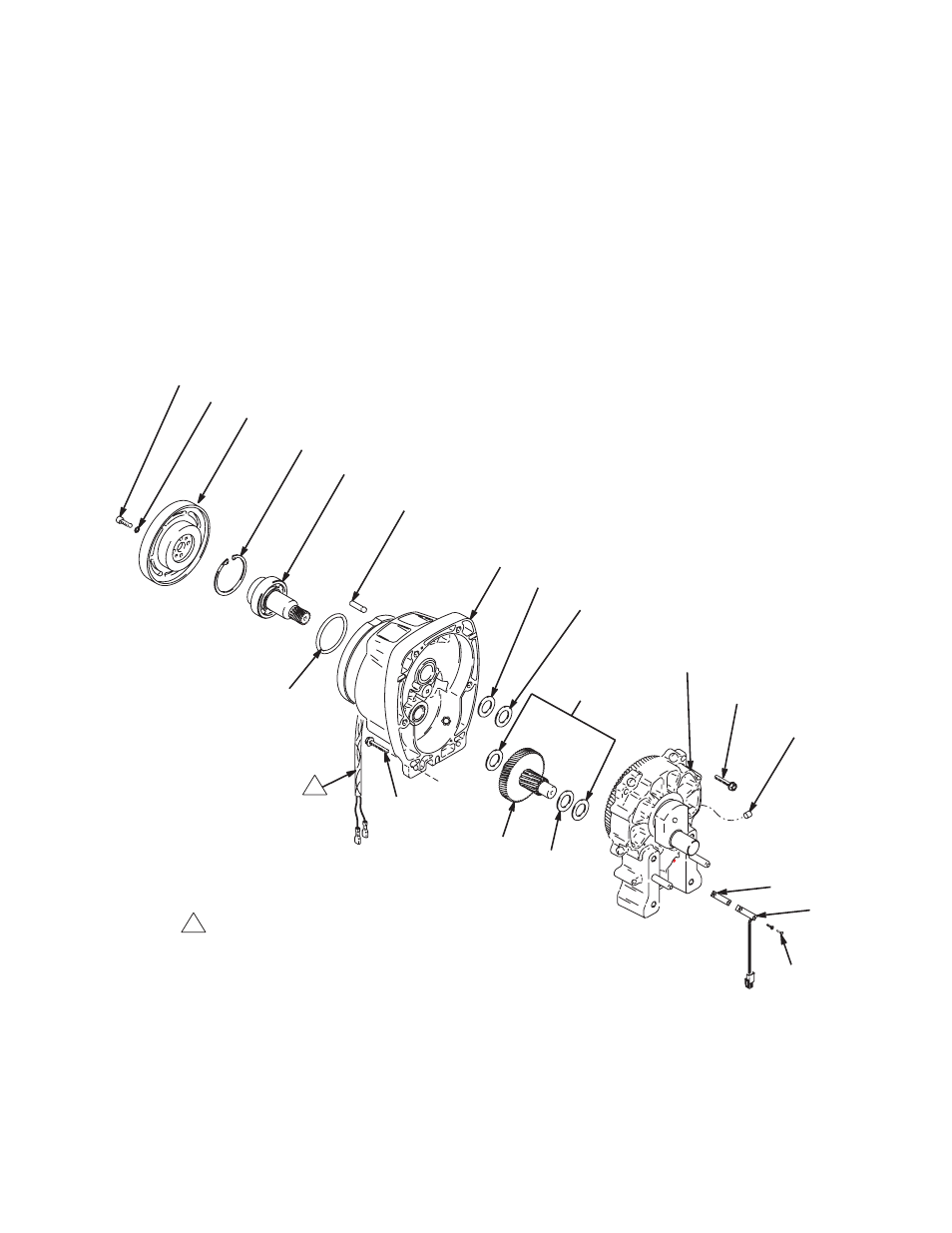

Pinion and Drive Housing - Parts Drawing and List
Ref No. 29: Pinion Housing 287465 Ref No. 33: Drive Housing 287700
Ref Part Description Qty
29 287476 PINION HOUSING & COIL 1
29a 241114 PINION SHAFT 1
29b 112770 RETAINING RING, large 1
29c 105489 PIN 2
29d 114683 O-RING 1
Ref Part Description Qty
33 HOUSING, drive 1
33a 194173 WASHER 1
33b 116192 WASHER 1
* Premium models and TexSpray 5900HD convertible.
C
A
B
D
B
A
Pinion Housing (29) includes Clutch Field
