Parts
20 311046H

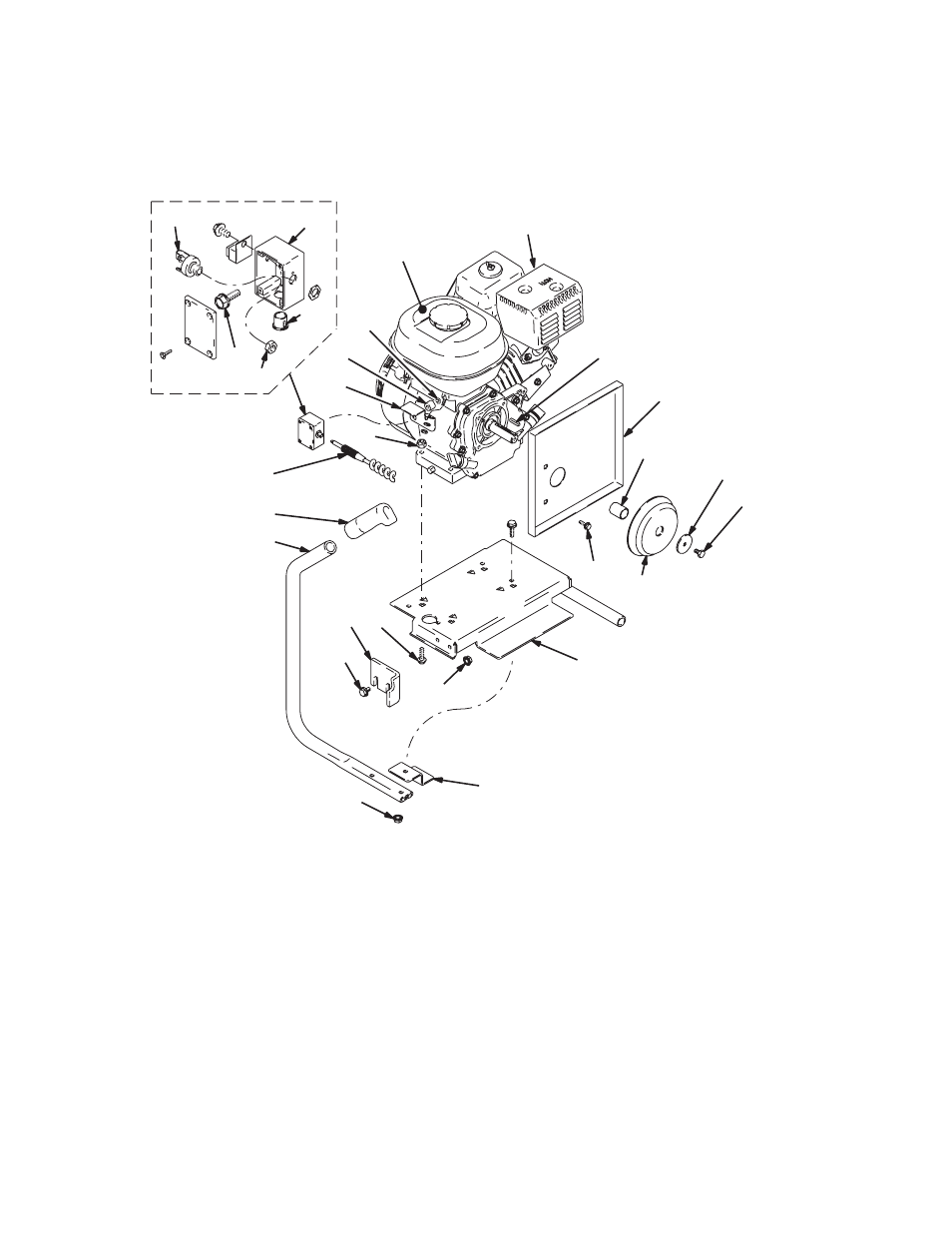

Engine Detail
Engine Detail - Parts List
129
143
17
17
128
131
124
126
127
18
130
140 141
139
138
135
137
115
15
144
125
20
61
142 Ref
16
17
136
ti5750a
135
(Ref)
Ref Part Description Qty
15 114530 ENGINE, gas, 5.5 Honda 1
16 114653 SCREW, cap, flange hd 4
17 110996 NUT, flng hd, hex 6
18 183401 KEY, parallel 1
20 121727 SCREW, cap, hex hd 1
61 112717 WASHER 1
115 194126 LABEL, warning 1
124 245272 BASE, mounting 1
125 116139 GRIP, handle 2
126 198689 BRACKET, belt guard (motor) 1
127 112406 SCREW 3
128 198997 BRACKET, tension 1
129 198693 HANDLE, slide, engine 2
130 198695 BRACKET, torsion bar 1
131 110963 SCREW, cap, hex hd, flange 2
135 114816 NUT, hex 1
136 116149 SPACER 1
137 194414 BRACKET, J-box 1
138 114813 SCREW, mach, hex washer hd 1
139 114678 BUSHING, snap 1
140 194181 BOX, junction, engine 1
141 114805 JACK, 1/4 engine 1
143 15E896 PULLEY, engine 1
144 15B314 SLEEVE, motor shaft 1
Ref Part Description Qty
