HP ze2000 User Manual
Page 154
Removal and Replacement Procedures
Maintenance and Service Guide
5–61
7. Flex the left edge of the top cover out 1 until the 1394
connector 2 disengages from the top cover.
8. Lift the left side of the system board 3 until the 1394
connector is clear.
9. Flex the front edge of the top cover 4 until the audio
connectors 5 and LED section 6 of the system board
disengage from the top cover.

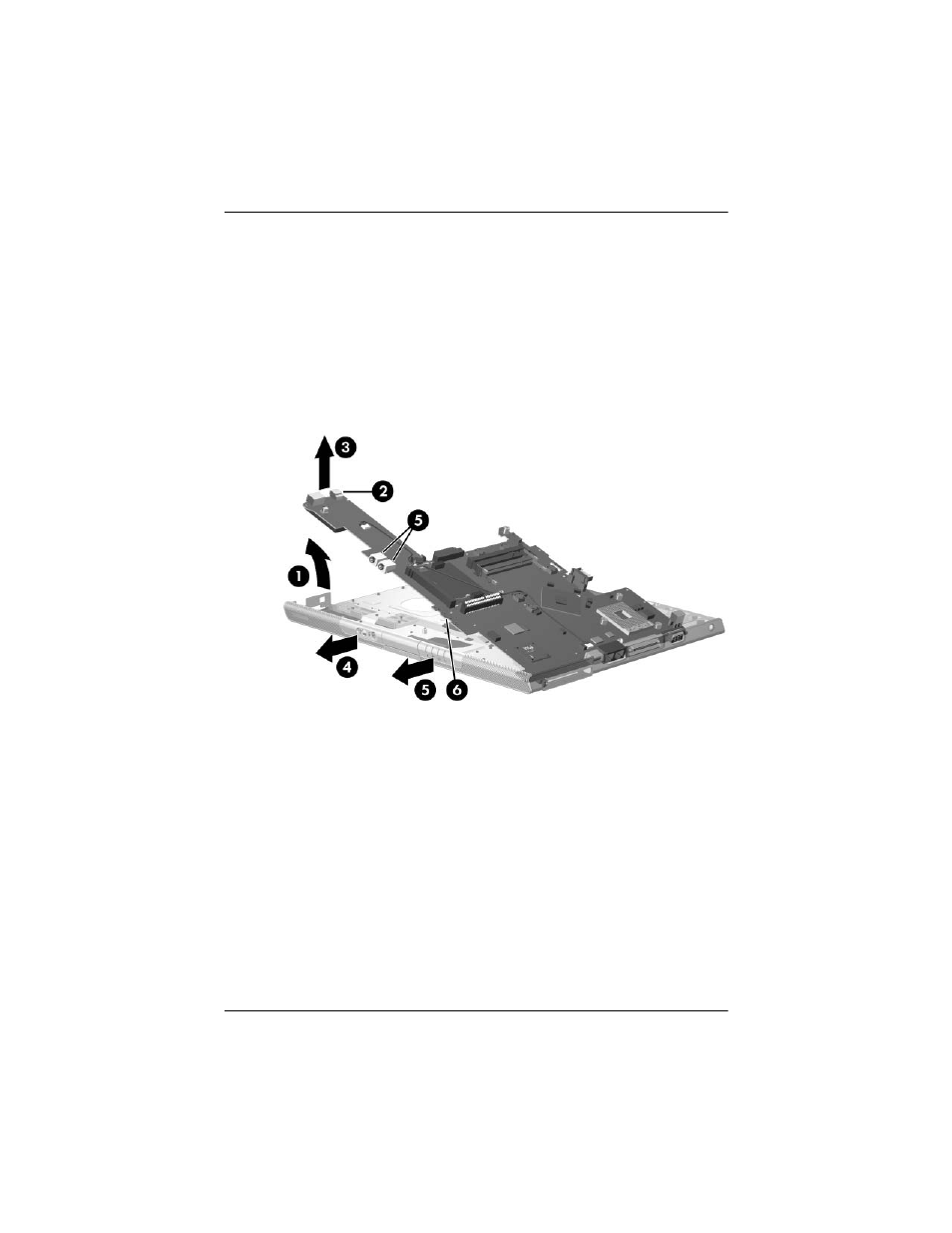

Releasing the System Board
