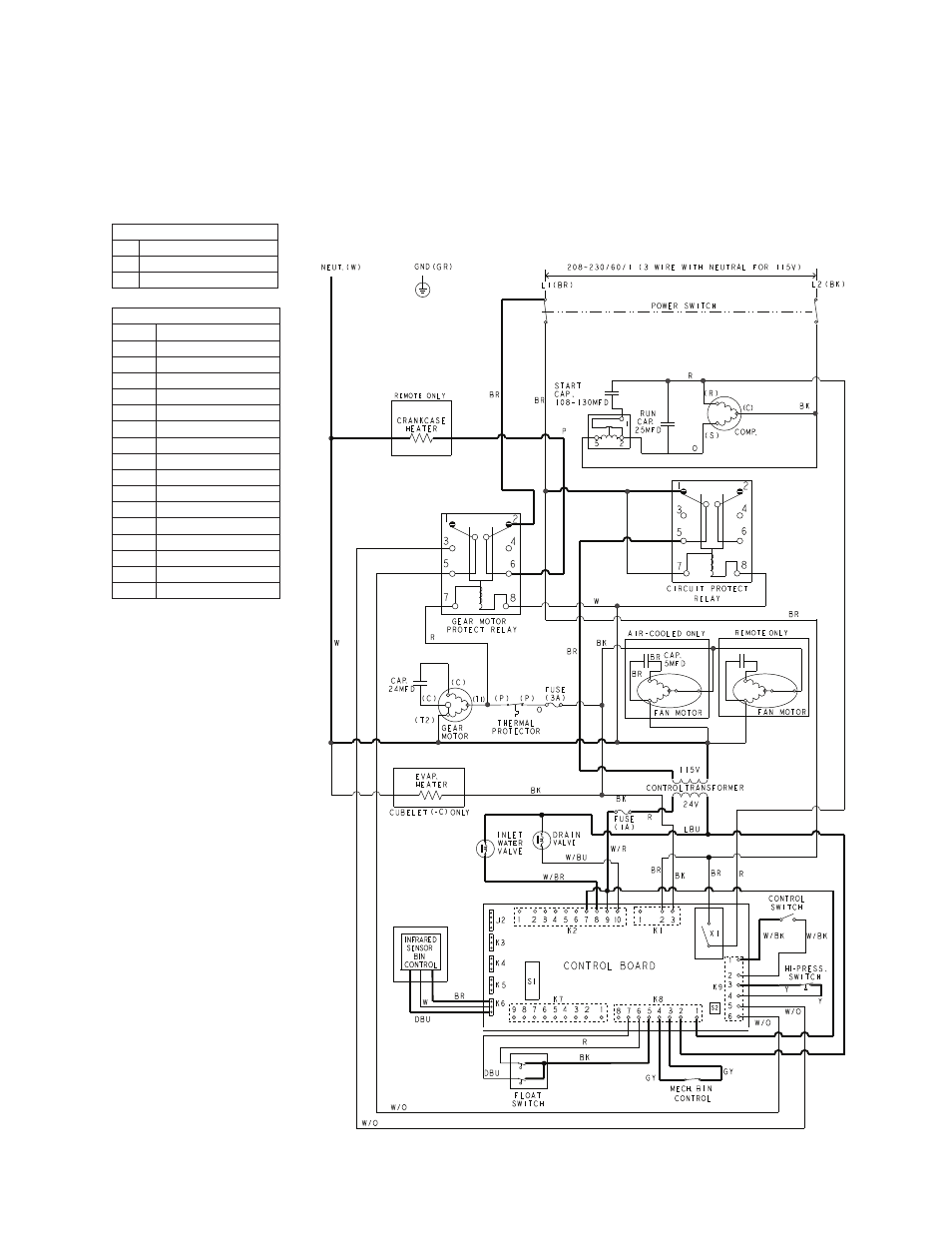

3. Sequence Wiring Diagram
a) Fill Cycle.
Power supply is turned on. Inlet water valve energizes and reservoir fills.
CONTROL BOARD
S1 SERVICE BUTTON
S2 DIP SWITCH
X1 COMPRESSOR RELAY
WIRE COLOR CODE
R RED
BK BLACK
BR BROWN
O ORANGE
Y YELLOW
GR GREEN
GY GRAY
P PINK
V VIOLET
W WHITE
LBU LIGHT BLUE
DBY DARK BLUE
W/BU WHITE / BLUE
W/R WHITE / RED
W/BK WHITE / BLACK
W/BR WHITE / BROWN
W/0 WHITE / ORANGE
