Page 18 For technical questions, please call 1-800-444-3353. SKU 93212
The Tailstock Quill is locked in place with 4.
the Tailstock Quill Fix Holder (146). Turn
it clockwise to lock the Quill in place and
counterclockwise to loosen it. Tighten the
Nut (6) underneath the Quill to eliminate
any play in the Quill.
5. To adjust the Tailstock slightly to the right
or left of center, loosen the Screw (197)
on the bottom of the Tailstock. Adjust,
then tighten.

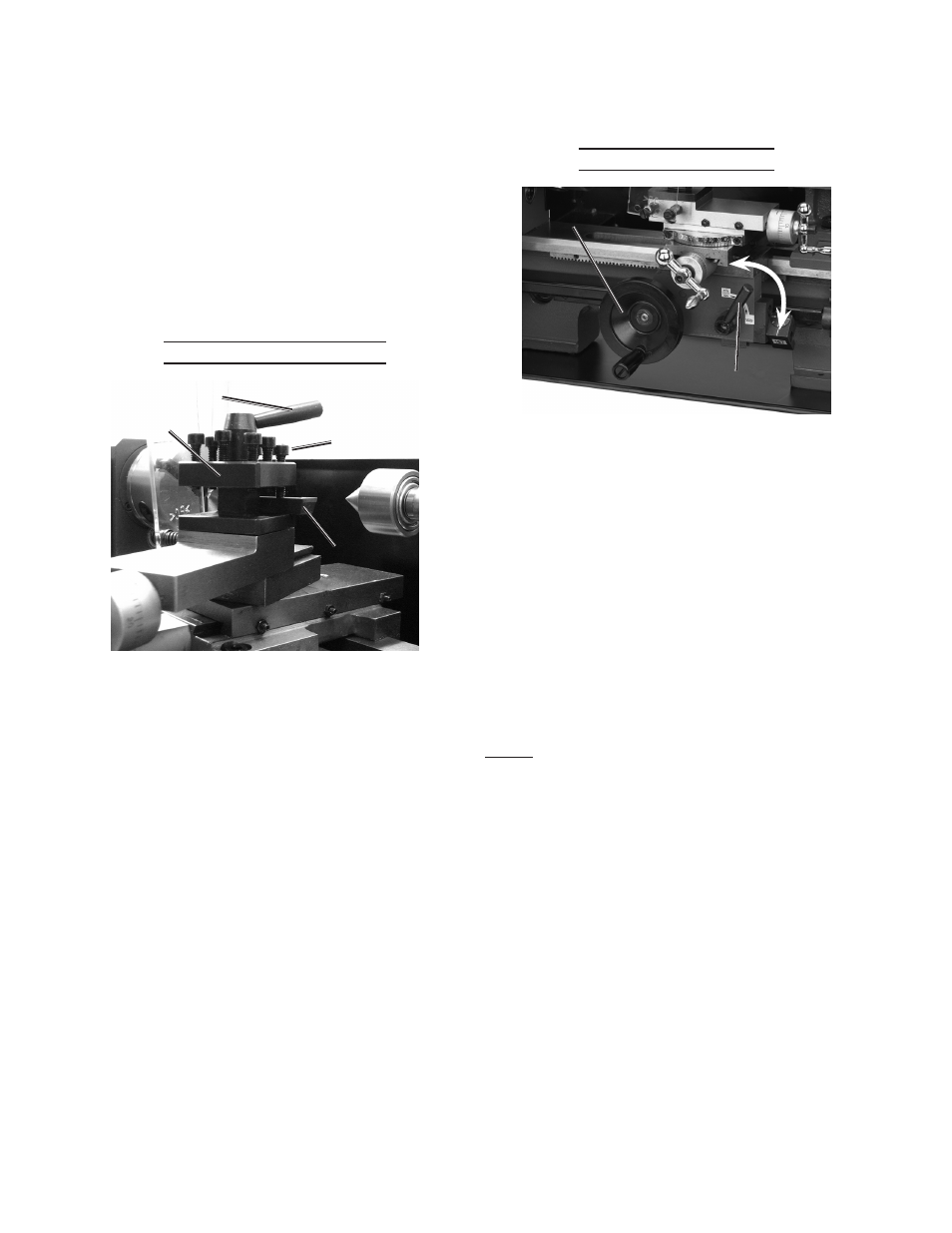

tool Post adjustment
Figure 19
Cutter
(Sold separately)
Tool Post Lever (111)
Tool Post Bolt (110)
Tool Post (112)
To adjust the position of the Tool Post
(112):
Turn the Tool Post Lever (111) a.
counterclockwise to loosen the Tool
Post.
Rotate the Tool Post as needed.
b.
Hold the Tool Post in position while c.
turning the Tool Post Lever clockwise,
tightening the Tool Post in place.
To install a cutting tool (Sold separately):
Use the 1/4” Hex Wrench (part of 311) a.
to raise enough Tool Post Bolts (110)
to hold the tool. Use at least two Tool
Post Bolts to hold the tool in place (Turn
counterclockwise to raise).
Slide the tool under the raised screws
b.
and hold it while lowering the screws
until they are securely holding the tool in
place.
automatic Feeding
Feed Control
Wheel (84b)
Automatic Feel Lever (79)
Figure 20
ON
OFF
The Automatic Feed Lever (79) controls
whether the Carriage (93) moves
automatically, or manually.
When the Lever is Up, the Lathe is in
Manual mode. Use the Feed Control
Wheel (84b) to slide the Carriage to the
right or left.
When the Lever is Down, the Lathe is
in automatic mode. The carriage will
automatically move to the right or left
depending on whether it is set to forward
or reverse.
note: The Feed Control Wheel (84b) is locked
when the automatic feed is ON.
reV 10b
