Havis-Shields KK-F-ST-SS User Manual
Page 2
KK-F-ST-SS-INST-9-06

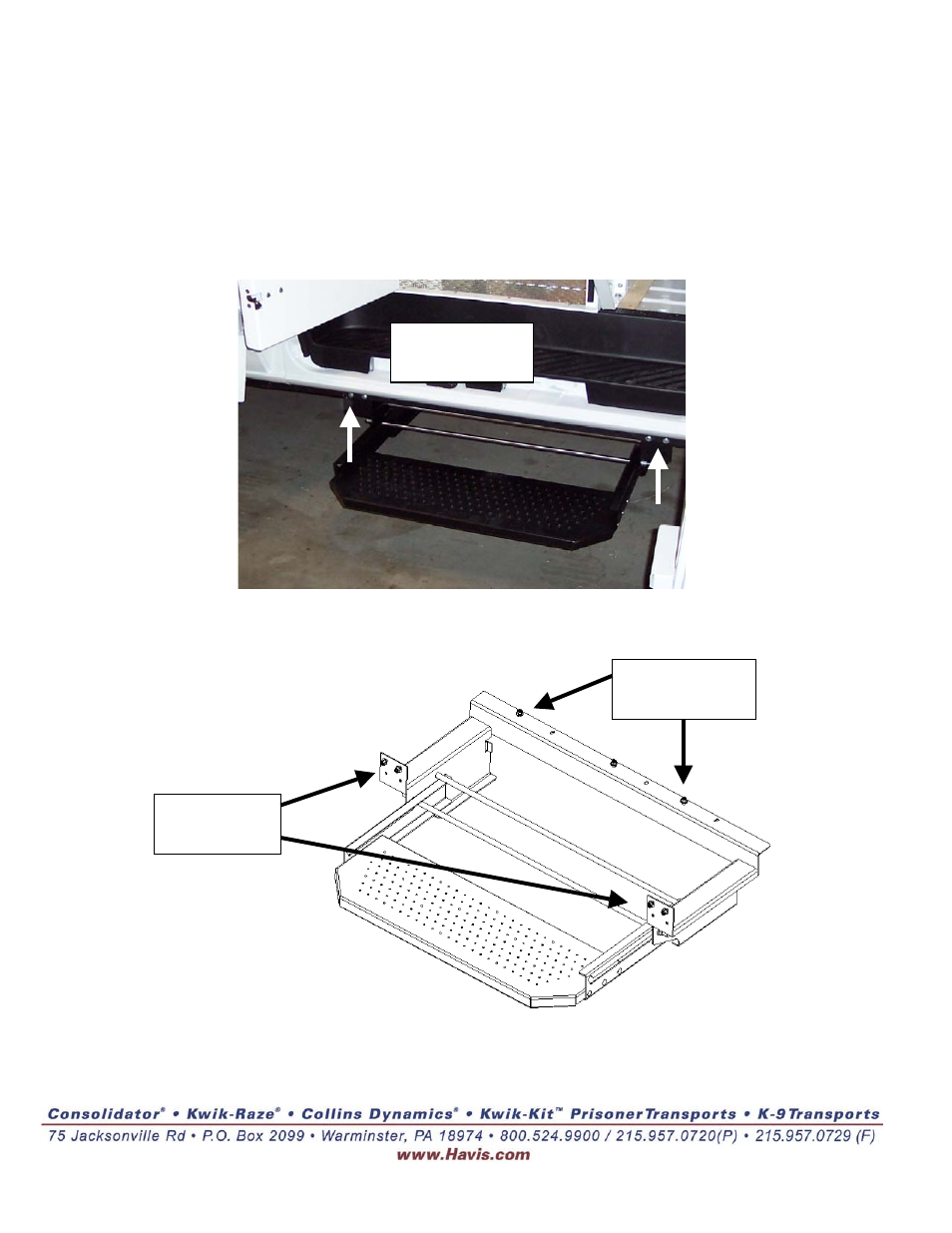

2. MARK & DRILL FENDER LIP MOUNTING HOLES:
• Raise outer side holes and attach step to fender lip using ¼” of step until level.
• Mark (4) mounting holes on fender lip.
• Drill ¼” holes on these marks.
• Attach using ¼-20 x ¾” Hex head bolts, washers and serrated nuts.
Fender lip
mounting
Frame
mounting holes
Fender lip
mounting
