Page 66
VLANs
66
b.

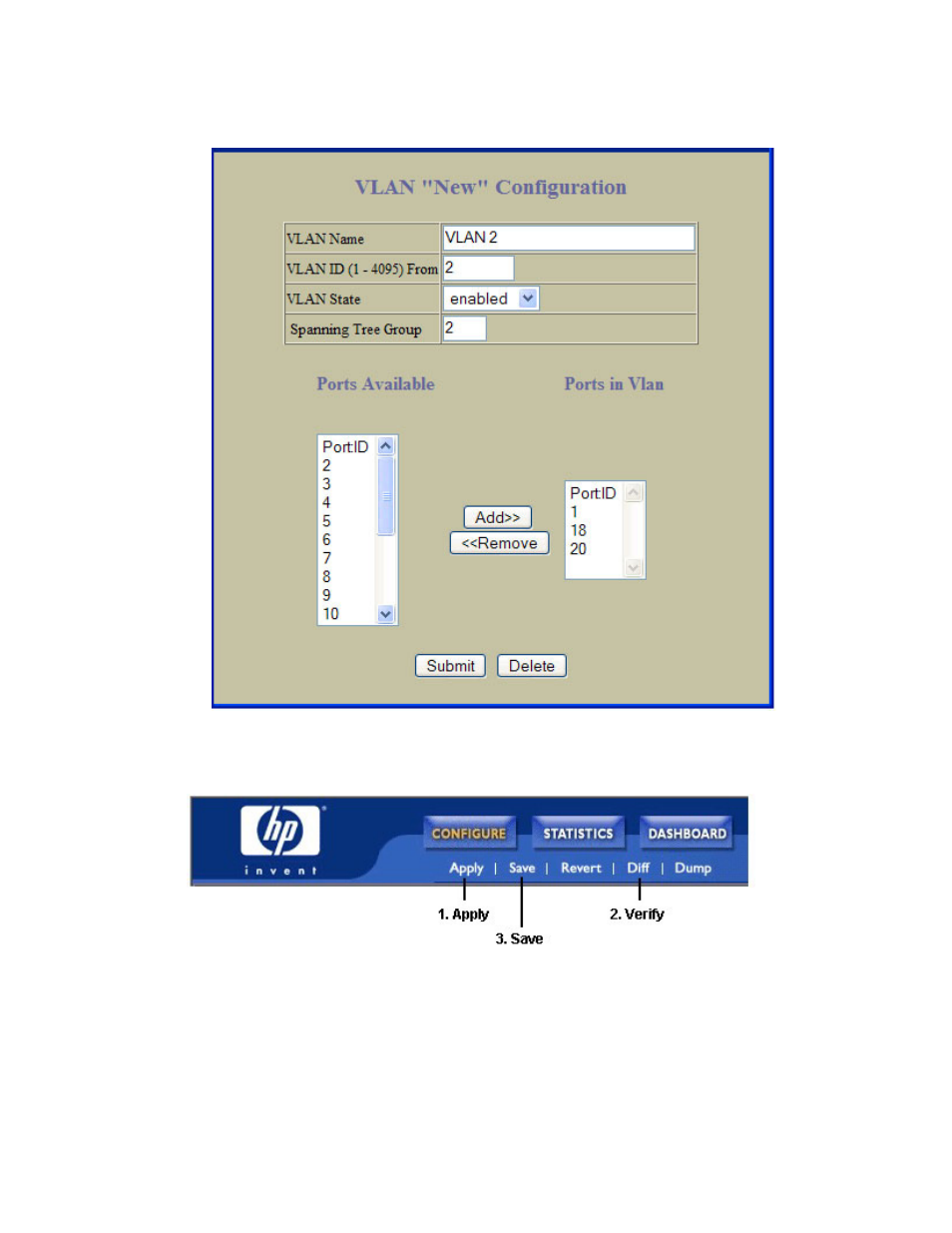

Enter the VLAN name, VLAN ID number, and enable the VLAN. To add ports, select each port in
the Ports Available list and click Add. Since all ports are configured for VLAN 1 by default,
configure only those ports that belong to VLAN 2.
c.
Click Submit.
The external Layer 2 switches should also be configured for VLANs and tagging.
3.
Apply, verify, and save the configuration.
FDB static entries
Static entries in the Forwarding Database (FDB) allow the switch to forward packets without flooding ports
to perform a lookup. A FDB static entry is a MAC address associated with a specific port and VLAN. The
switch supports 128 static entries. Static entries are manually configured, using the following command:
/cfg/l2/fdb/static
