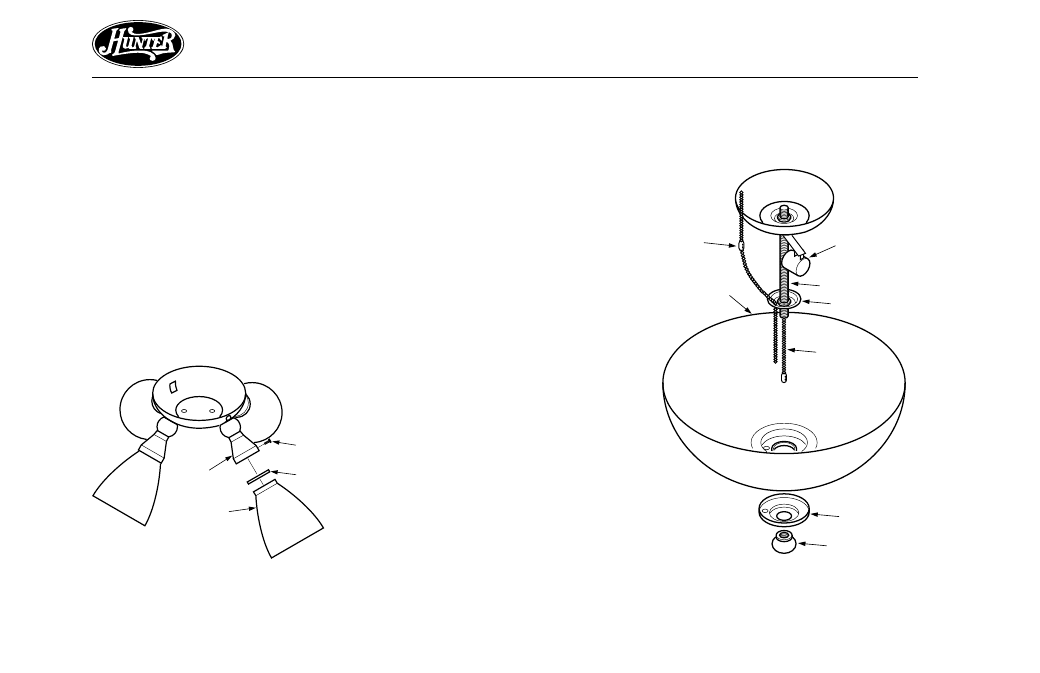

Figure 7f - Aurora Fixtures
AURORA FIXTURES
Refer to Figure 7f.
1. Install bulbs.
2. Remove the pull chain extension
from the metal disk and re-attach
it to the pull chain from the fan
switch housing. Thread the chain
through the hole in the metal
disk.
3. Place globe on pipe until flush
against metal disk.
4. Thread the light switch pull chain
through the large center opening
of the globe.
5. Thread the fan switch pull chain
through the small center opening
in the globe.
6. Place the cover plate up against
the underside of the globe. Pass
light and fan switch pull chains
through the appropriate holes.
Pipe Globe
Metal Disk
Bulb
Socket
Light
Switch
Pull Chain
Cover Plate
Finial
7. Thread the light switch pull chain
through the finial and screw the
cap onto the pipe end until tight.
Fan
Switch
Pull Chain
Silencer
Band
Thumb-
screw
Globe
Cup
Figure 7e - Basic/Colonial Fixtures
BASIC/COLONIAL FIXTURES
Refer to Figure 7e.
1. Place silencer band around neck
of each globe.
2. Insert globe in cup.
3. Install and tighten thumbscrews
manually. Do not overtighten.
4. Install bulbs.
SPOTLIGHT FIXTURES
1. Install bulbs.
