Hunter Fan 23970 User Manual
Parts guide, Hardware, Fan parts
Hardware

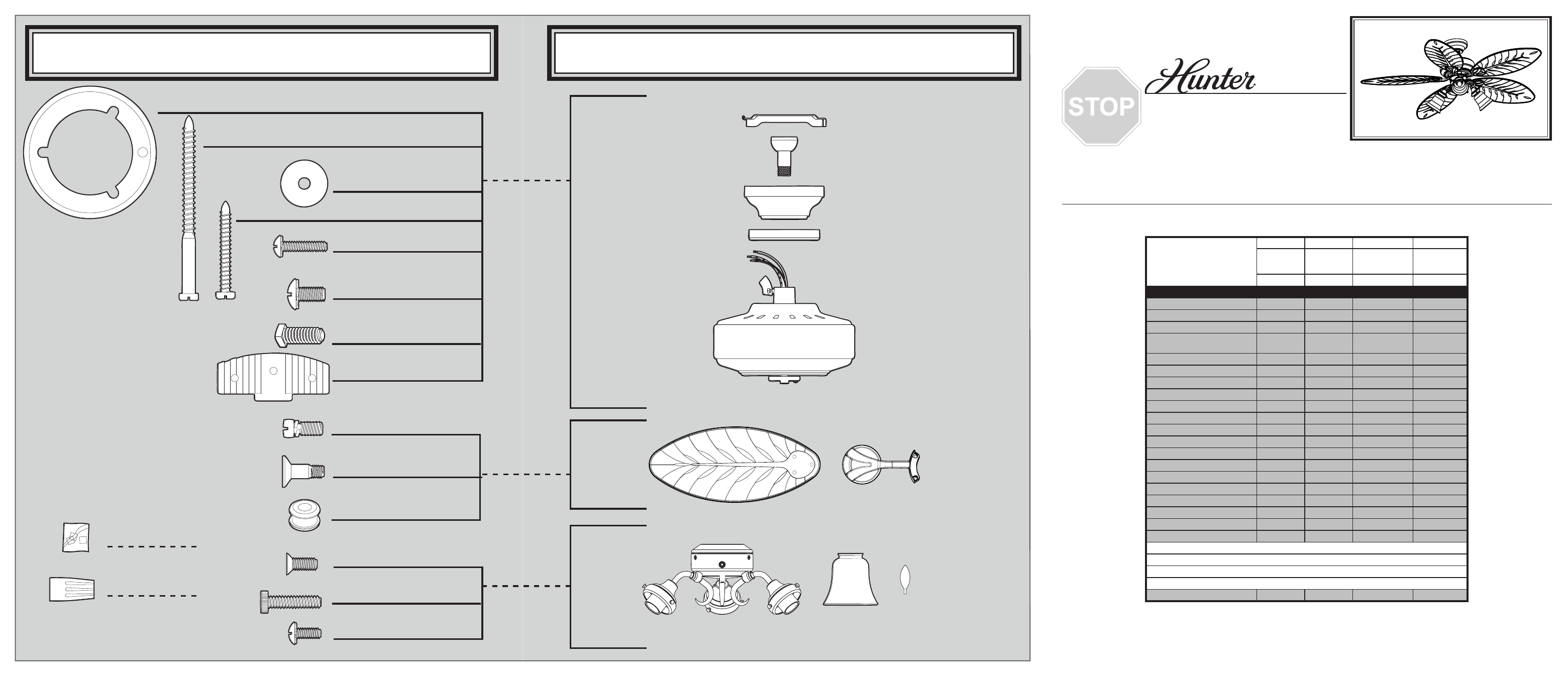

(Drawn to Scale)
Fan Parts
(Not Drawn to Scale)
PARTS GUIDE
PARTS GUIDE
Hunter Fan Company•7130 Goodlett Farms Pkwy. Suite 400•Memphis, TN 38016•www.hunterfan.com•98000-01-729 02-10-2009•
©
2009
Using this Parts Guide, make sure all
parts are included in the box.
If parts are missing, DO NOT RETURN
THIS ITEM TO THE STORE, call 888-830-1326 for assistance.
THIS PARTS GUIDE IS FOR REFERENCE ONLY.
REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS.
Using this Parts Guide, make sure all
parts are included in the box.
If parts are missing, DO NOT RETURN
THIS ITEM TO THE STORE, call 888-830-1326 for assistance.
THIS PARTS GUIDE IS FOR REFERENCE ONLY.
REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS.
Parts List
Model #
23970
23971
23972
Asm. Dwg. #
94850-01
94850-02
94850-03
Finish
New Bronze
Antique Pewter Antique Brass
Item Name
Qnty
Part #
Part #
Part #
Ceiling Plate
1
74090-02
74090-02
74090-02
Canopy
1
92697-01
92697-01
92697-01
Canopy Trim Ring
1
84512-01
84512-01
84512-01
Hanger Ball / Downrod
Assembly
1
74229-03
74229-03
74229-03
Setscrew
1
03009-06
03009-06
03009-06
Low Profile Washer
1
73788-01
73788-01
73788-01
Canopy Screw
2
74510-04
74510-04
74510-04
Wood Screw
2
03144-03
03144-03
03144-03
Wood Screw
2
06512-01
06512-01
06512-01
Flat Washer
4
06301-01
06301-01
06301-01
Mounting Isolator
2
74135-01
74135-01
74135-01
*
Screw, Low Profile
3
74508-36
74508-36
74508-36
Switch Housing Assembly
1
99171-30
99171-14
99171-05
Blade Iron Set
1
92792-05
92792-05
92792-05
Blade Set
1
75006-62
75006-63
75006-62
Screw, Blade Iron Armature
11
63755-05
63755-05
63755-05
Light bulb / Bulb
3
77646-04
77646-04
77646-04
Globe/Shade
3
84887-01
84884-07
84884-07
Thumb Screw
9
03077-08
03077-08
03077-08
Hardware Kit
1
94850-00-860
94850-00-861
94850-00-862
Blade Assembly Screw
Blade Grommet
Screw, Machine, 6-32
Wire Connector
Balancing Kit
1
07570-01
07570-01
07570-01
Hanger
Bracket
Assembly
Blade
Assembly
Switch
Housing
Assembly
Screw, Switch
Housing Assembly
Screw,
Machine, 6-32
Screw, Low
Profile
Setscrew
Mounting Isolator
Screw, Blade
Iron Armature
Canopy Screw
Flat Washer
Screw, Blade
Assembly
3” Wood Screw
Low Profile
Washer
Balancing
Kit
Wire
Connector
1.5” Wood Screw
Blade
Grommet
Thumbscrew
x 1
x 2
x 4
x 2
x 3
x 3
x 1
x 11
x 4
x 16
x 3
x 3
x 1
x 4
x 16
x 9
