23
Connecting to AV Devices
Connect external devices such as a VCR, VCD or DVD player, or
video game to the TV using the 4-IN-1 cable.
Connecting to a VCR/VCD/DVD Player

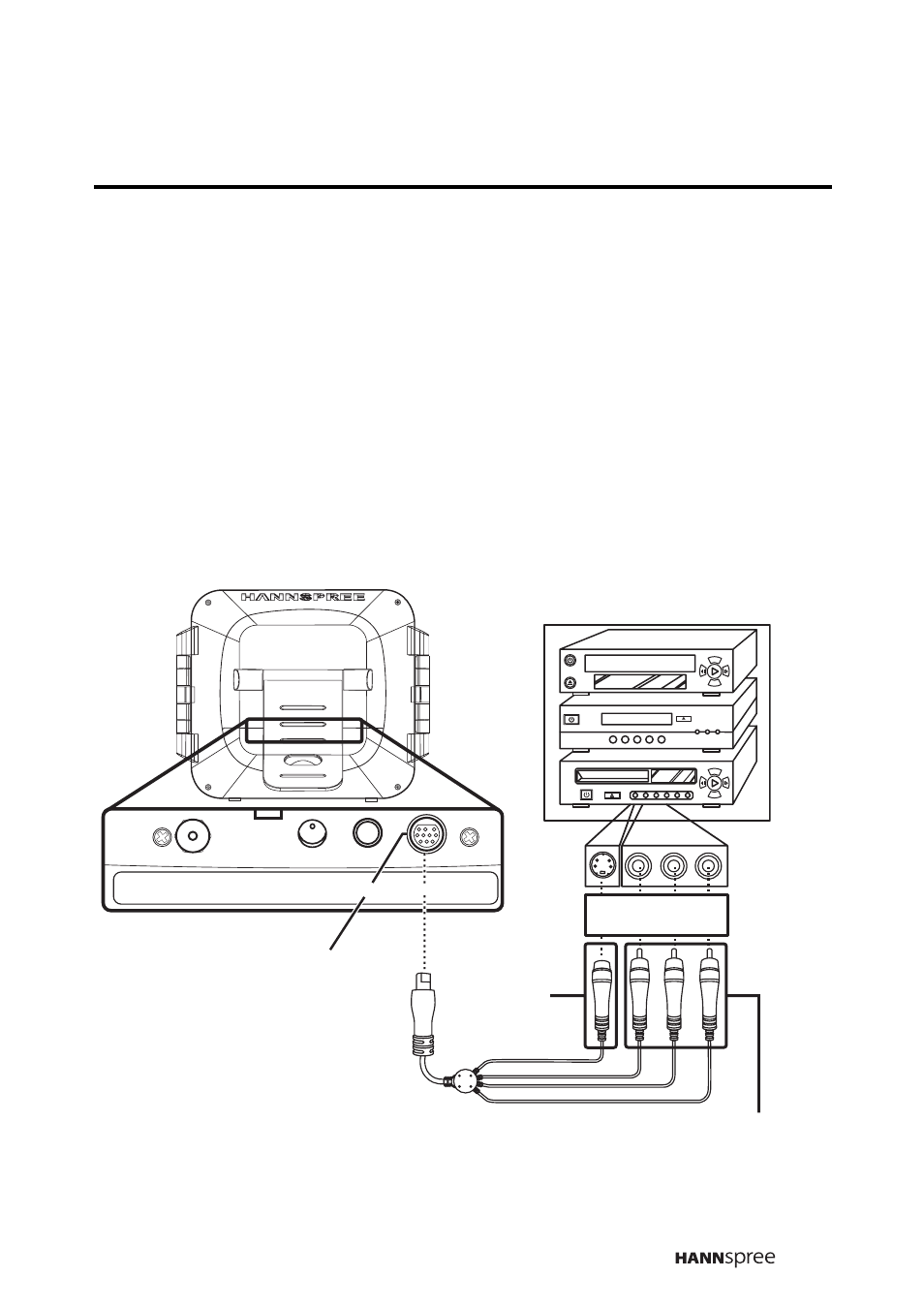

The illustration presented here shows how to connect the TV to a
VCR and VCD or DVD player. Actual connections may vary accord-
ing to the make and model of the device. Refer to the user’s manual
included with the device for more detailed instructions.
Note
The cables are color-coded (black, red, white, yellow). Connect each color-
coded cable to the appropriate connector on your device.
4-IN-1 cable
AV IN ANT DC-IN HEADPHONE
B R W Y
-20
0
10 20
30
4 0
50
THERMOMETER
60 50 40
30
2 0
10
-10
0
70 80
90
10 0
11
0 120
13 0
50 40 30 20 10 0
60 70 80
90
100 % HYGROMTER
CF
QUARTZ
05
10
1 5
20
25
30 35
40
45
50
55 XII
X
X
X I
II
III
IIII
I V V II V
III
I
I
V
VCR
DVD
VCD
S-Video
connector
4-IN-1 cable
4-IN-1 jack
AV connectors
