Shroud Removal
8 311772G

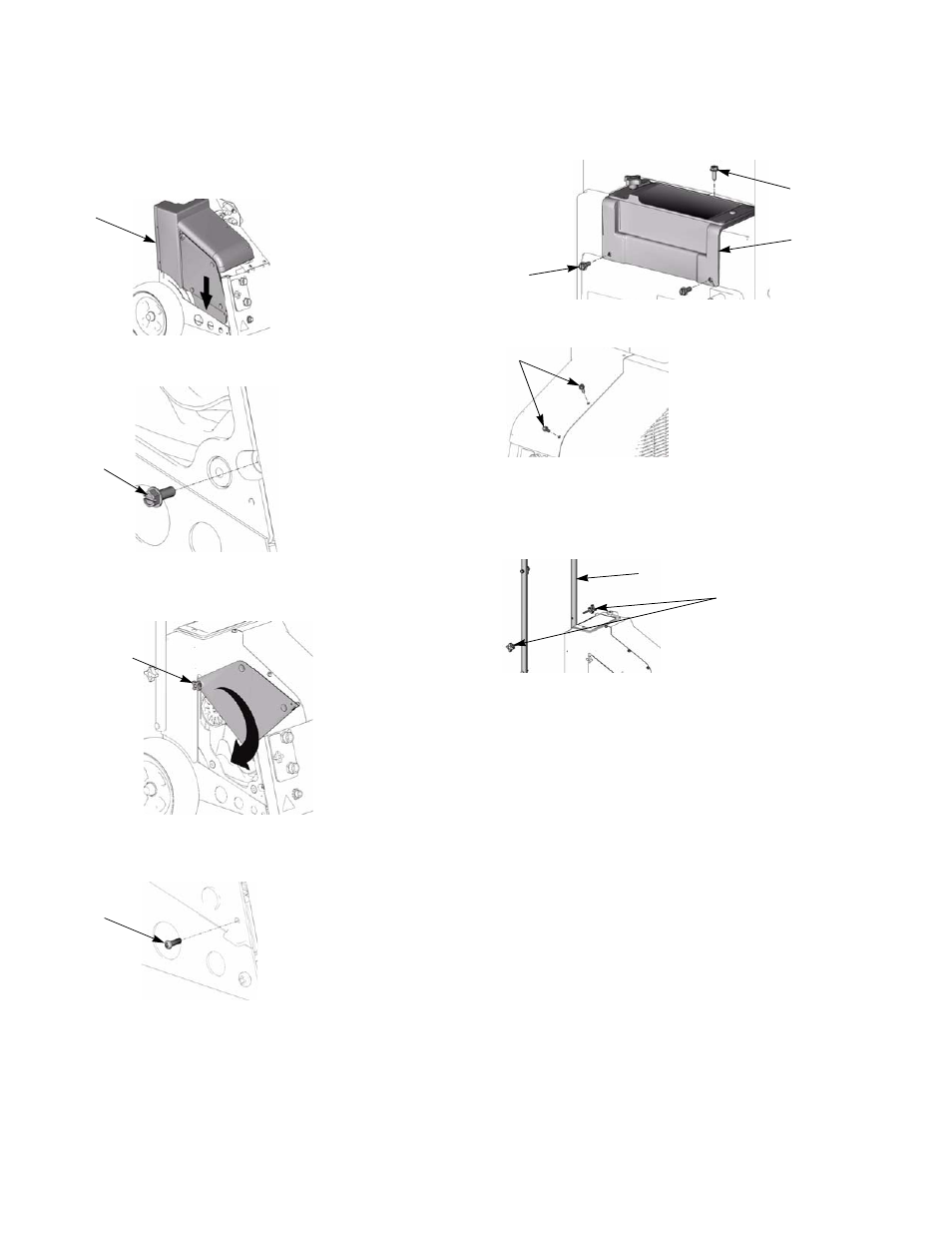

Reassembly
1. Angle left shroud half (5) into base and push down
into place. Then replace right shroud half (7).
2. Replace and tighten second screw (30).
3. Swing access door down (RTX 1250) and tighten
knob (42).
4. Tighten screw (70) into lower right corner of side
access plate.
5. Replace toolbox (2) and tighten screws (30) and
screw (31).
6. Tighten screws (31) on shroud.
7. Spread handle bars apart and slide handle down
into place.
8. Tighten 2 knobs (14) on sprayer handle (12).
9. Replace hopper and tighten hopper fitting by hand
until snug.
ti9015a
5
ti9283a
30
42
ti8938a
ti8874a
70
ti8884a
31
2
30
ti8882a
31
ti8875a
14
12
