Compressor
311772G 13

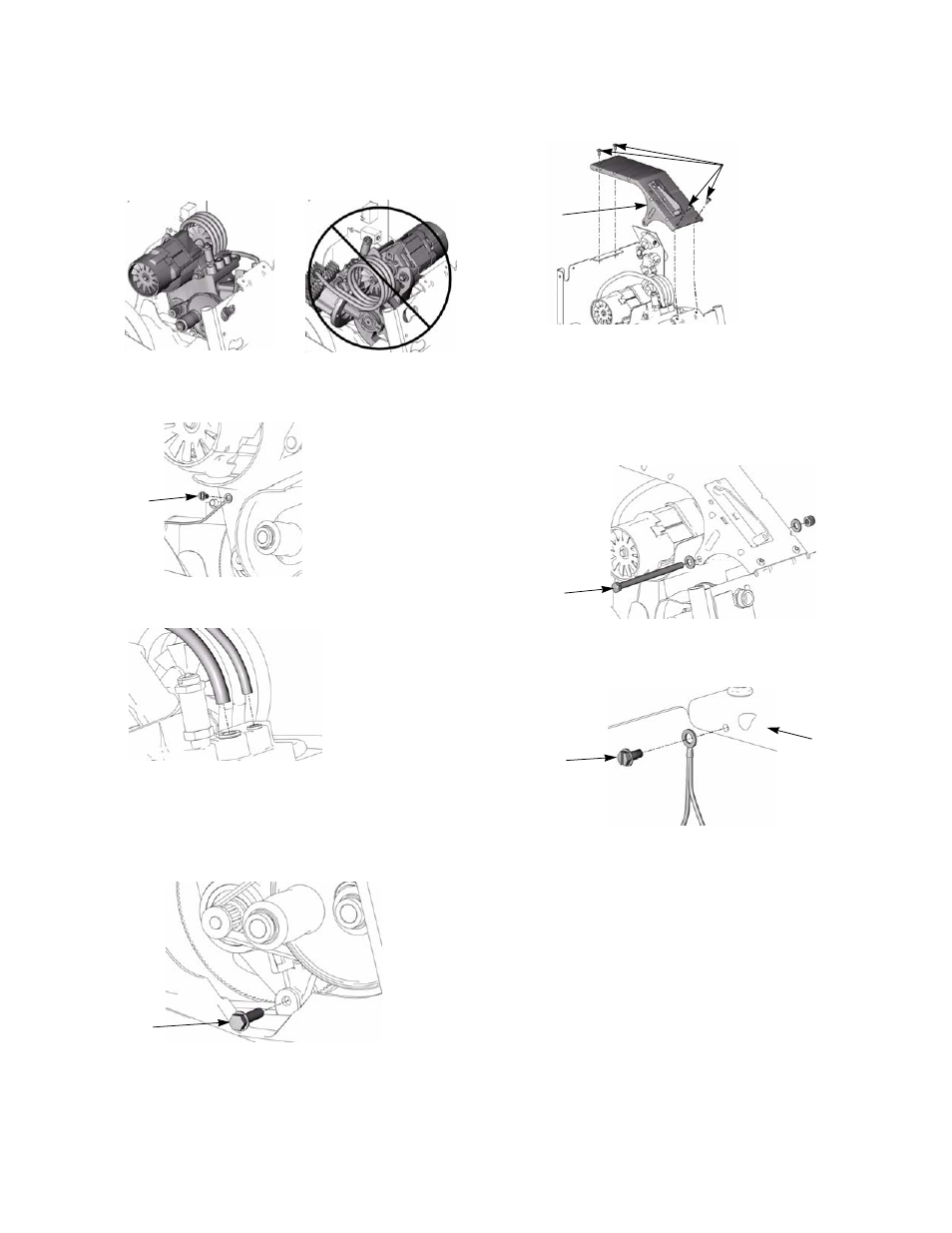

Reassembly
1. Carefully position compressor back into sprayer
body. Make sure piston head facing front of sprayer.
2. Replace and tighten grounding screw (49).
3. Reattach air lines to compressor.
4. Reattach 2 wires to compressor see Wiring
Diagram, page 27.
5. Replace air cylinder and tighten shoulder bolt (49) to
lock into place.
6. Replace bracket (21) and tighten 4 screws (29).
7. Replace grounding screw (49) and tighten onto
bracket (21).
8. Replace pivot bolt (26) and nut. Use 9/16 in. socket
and wrench to tighten into place. Tighten screw until
spring washers are flattened.
9. Replace and tighten second grounding screw (49) to
bracket (21).
10. Replace RotoFlex
™
II Pump hose; page 9 or 10.
11. Replace Shroud, page 7.
ti8940a ti8950a
49
ti8941a
ti8873a
ti8879a
49
ti8877a
29
21
ti8878a
26
49
ti9013a
21
