Shroud Removal
311772G 7

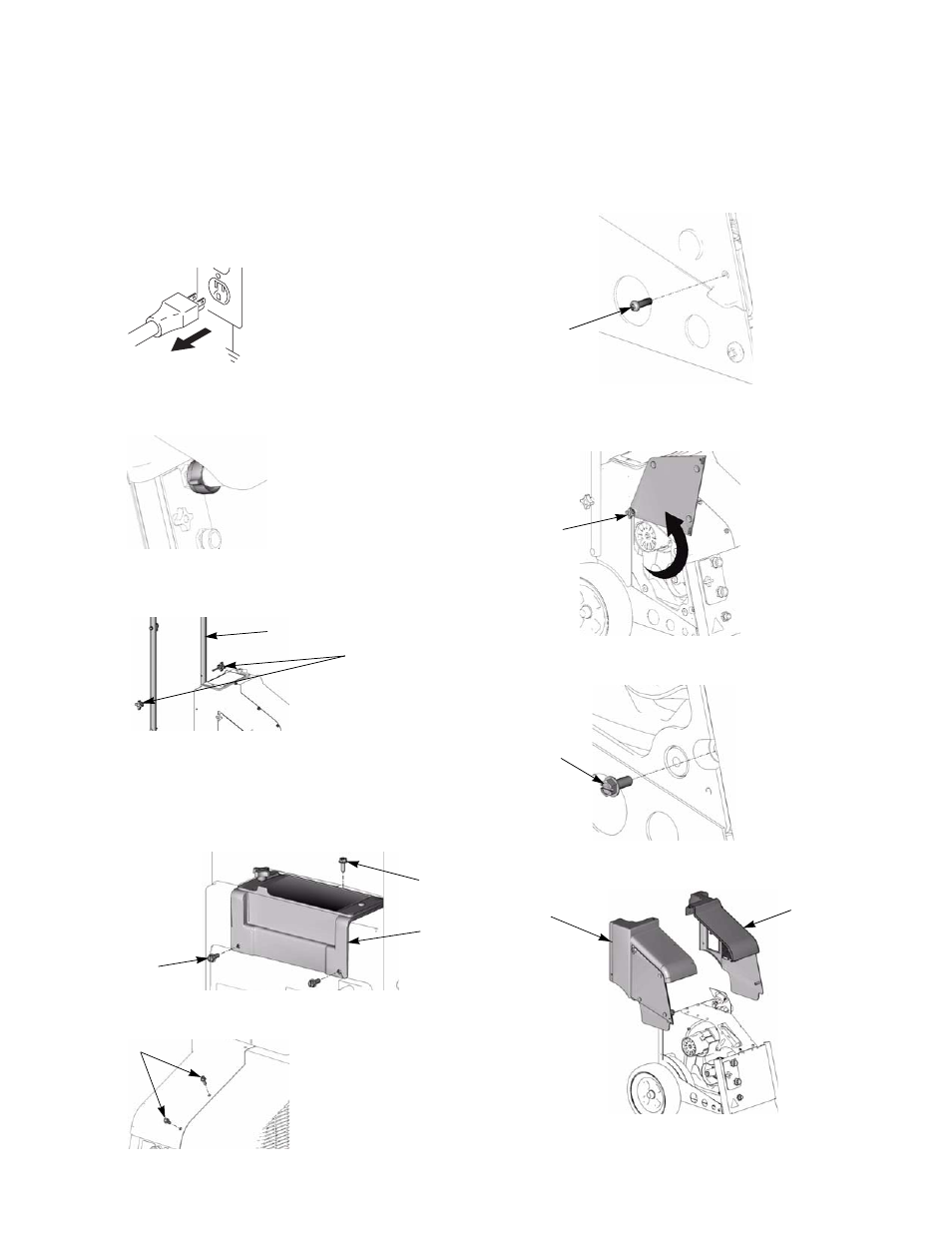

Shroud Removal
Disassembly
1. Relieve Pressure, page 6.
2. Unplug sprayer from outlet.
3. Loosen bottom hopper fitting by hand and pull
hopper up and off from handle.
4. Loosen and remove 2 knobs (14) on sprayer handle
(12).
5. Spread handle bars apart and pull up to remove
from sprayer.
6. Loosen screws (30) and screw (31) from toolbox
and remove toolbox (2) from sprayer.
7. Loosen screws (31) on shroud.
8. Loosen and remove screw (70) from lower right cor-
ner of side access panel (RTX1250) only.
9. Loosen knob (42) on side access panel and swing
open door.
10. Use screwdriver to remove second screw (30).
11. Remove two shroud halves (5 and 7) from sprayer.
ti2810b
ti8871a
ti8875a
14
12
ti8884a
31
2
30
ti8882a
31
70
ti8874a
ti8872a
42
ti9283a
30
ti8883a
5 7
