Huffy NETWORK PACK KA-DV300 - Manual (Page 26)

26 P/N 214326 8/98
Item #9 (3)
Item #8 (1)
Item #14 (1) Item #12 (4) Item #10 (1)

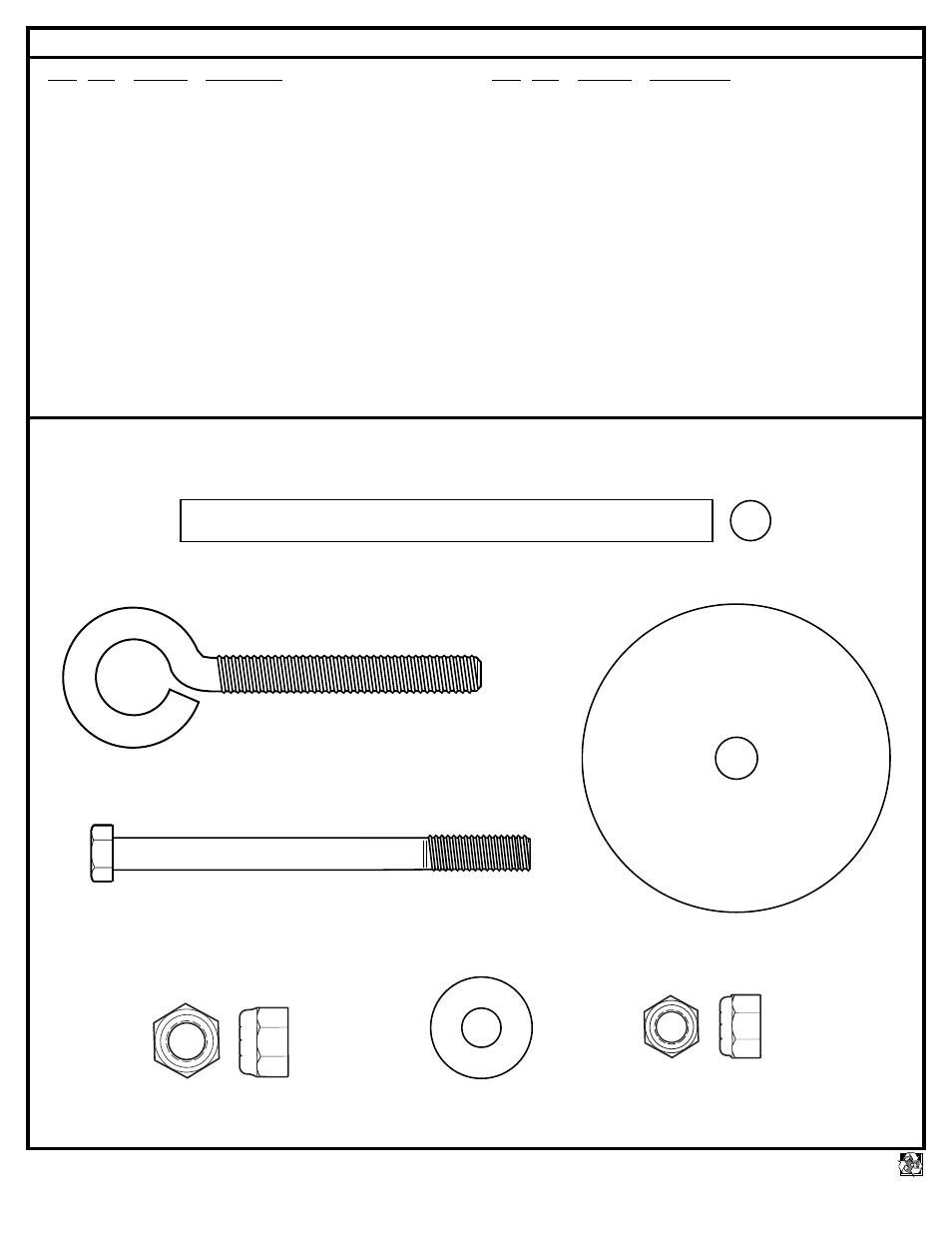

HARDWARE IDENTIFIER
Item #7 (1)
Item #11 (1)
PARTS LIST
Item Qty. Part No. Description
1 1 206325 Tank
2 2 206327 Wheel Axle, 4-1/4 Long
3 2 226401 Wheel 4”
4 1 900869 Top Pole Section
5 1 900869 Middle Pole Section
6 1 908332 Bottom Pole Section
7 1 202820 Rod, 3/8 O.D. x 4-3/4 Long
8 1 202822 Eyebolt, 3/8-16 x 3-3/4 Long
9 3 202821 Disk, 2-3/4 Diameter
10 1 203063 Nylon Insert Lock Nut, 3/8-16
11 1 202541 Bolt, Hex Head, 5/16-18 x 3-3/4
12 4 203218 Washer, 5/16, Flat
13 2 906324 Tank Strut
14 1 203220 Locknut, 5/16-18
15 2 203156 Bolt, Hex Head, 5/16-18 x 1 Long
16 13 203100 Nut, Hex Flange, 5/16-18
17 1 Rim
Item Qty. Part No. Description
18 12* 200121 Clips, Net Holders, (Black)
19 2 906208 Direct Mount Bracket
20 4 203309 Washer, 1 O.D.
21 6 201611 Bolt, Hex Flange, 5/16-18 x 3 Long
22 2 906207 Backboard Strut
23 2 203291 Spacer, Rubber
24 2 203038 Bolt, Carriage 5/16-18 x 2-3/4
25 1 Net
26 1 203113 Bolt, Hex, Flange, 5/16-18 x 2-1/2 Long
27 4 200516 Cover, Bolt
28 1 202814 Cap
29 2 906353 Bracket, (Black)
30 1 906354 Strap, (Black)
31 2 203153 Bolt, Hex Head, 5/16 -18 x 3/4
* You may have extra parts with this model.
