18 P/N 214326 8/98
USE OF THIS PRODUCT WITHOUT
PROPER INSTALLATION OF NET
CLIPS, OR WHEN ALL NET CLIPS
ARE NOT PRESENT COULD
RESULT IN BODILY HARM. BE
SURE TO FOLLOW DIRECTIONS
CAREFULLY.

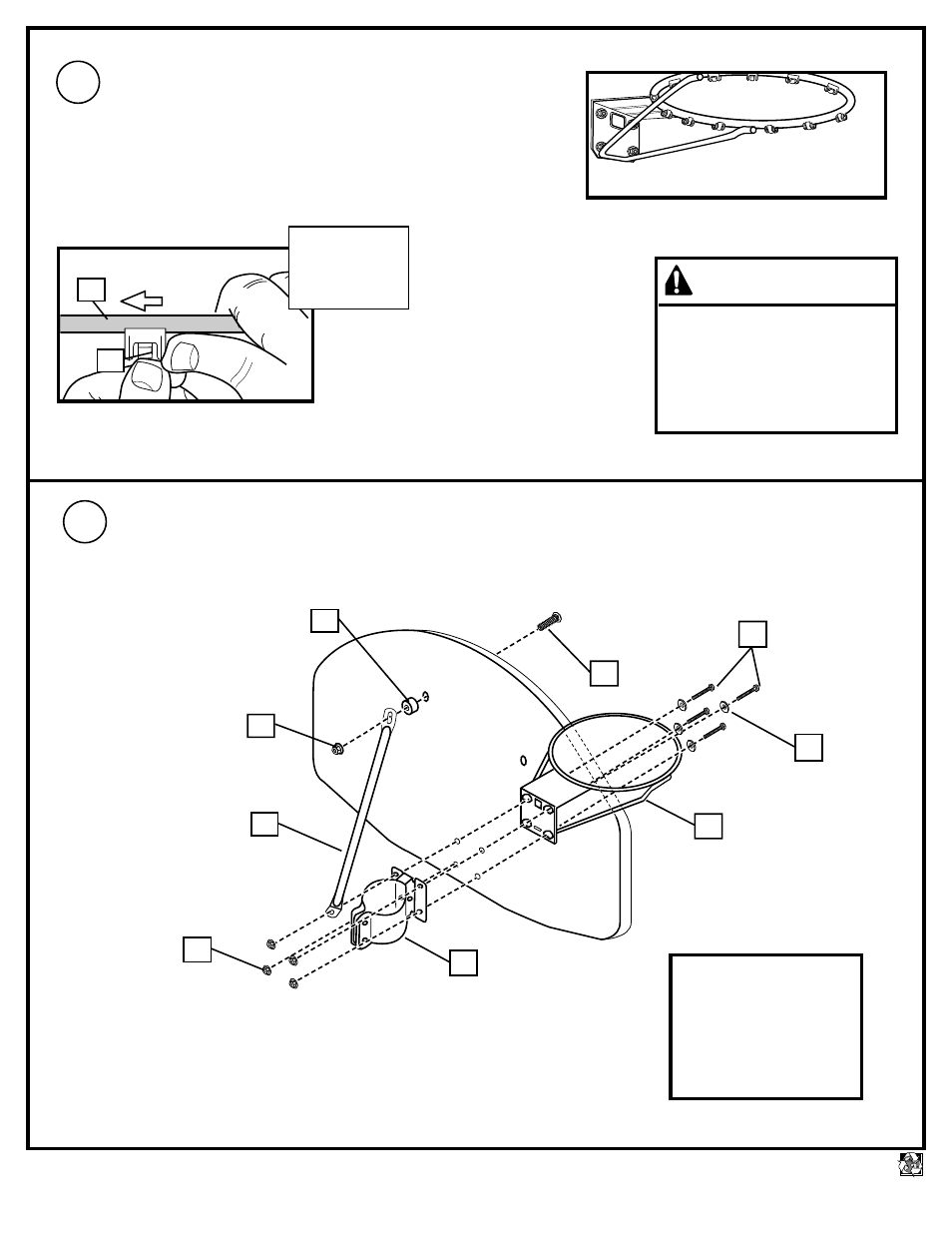

Install net clips (18).
11.
The two outer hooks on net clip must face
towards inside of goal rim. Insert larger
hole in net clip onto rim stud, then slide net
clip left, locking or snapping securely into
position. NOTE: Net clips should not
slide with ease. It is very important that
the net clips are in the locked position
before going on to next step.
OUTSIDE VIEW
The Quick Clip™ rapid release net system lets the net pull away from the rim.
This reduces the risk of player injury or property damage. However, improper
installation or a ball making contact at an odd angle may disengage the net clip
from the goal rim. Usually, the clip is reinstalled with little or no problem. We
hope that you agree this inconvenience is minor when compared to the safety of
the players.
17
18
WARNING
12.
Mount brackets (19) and rim (17) to backboard and finger tighten. Then secure backboard strut (22)
to backboard and repeat for opposite side. NOTE: Final adjustments will be made in Step 17.
16
17
20
21
16
22
24
23
19
IMPORTANT!
For spring loaded rim
assembly, refer to
instructions included with
rim hardware.
• Vue extérieure
• Vista exterior
• Außenansicht
• Vista dall’esterno
• Buitenaanzicht
