1.
IMPORTANT! WRITE DOWN MODEL NUMBER FROM BOX ON PAGE 1 OF THIS OWNERS MANUAL
Correctly identify poles sections and
mark with tape as shown.
3.
1
5 6
4
3
2
4.
1
TOP
MIDDLE
BOTTOM
5”
(13 cm)

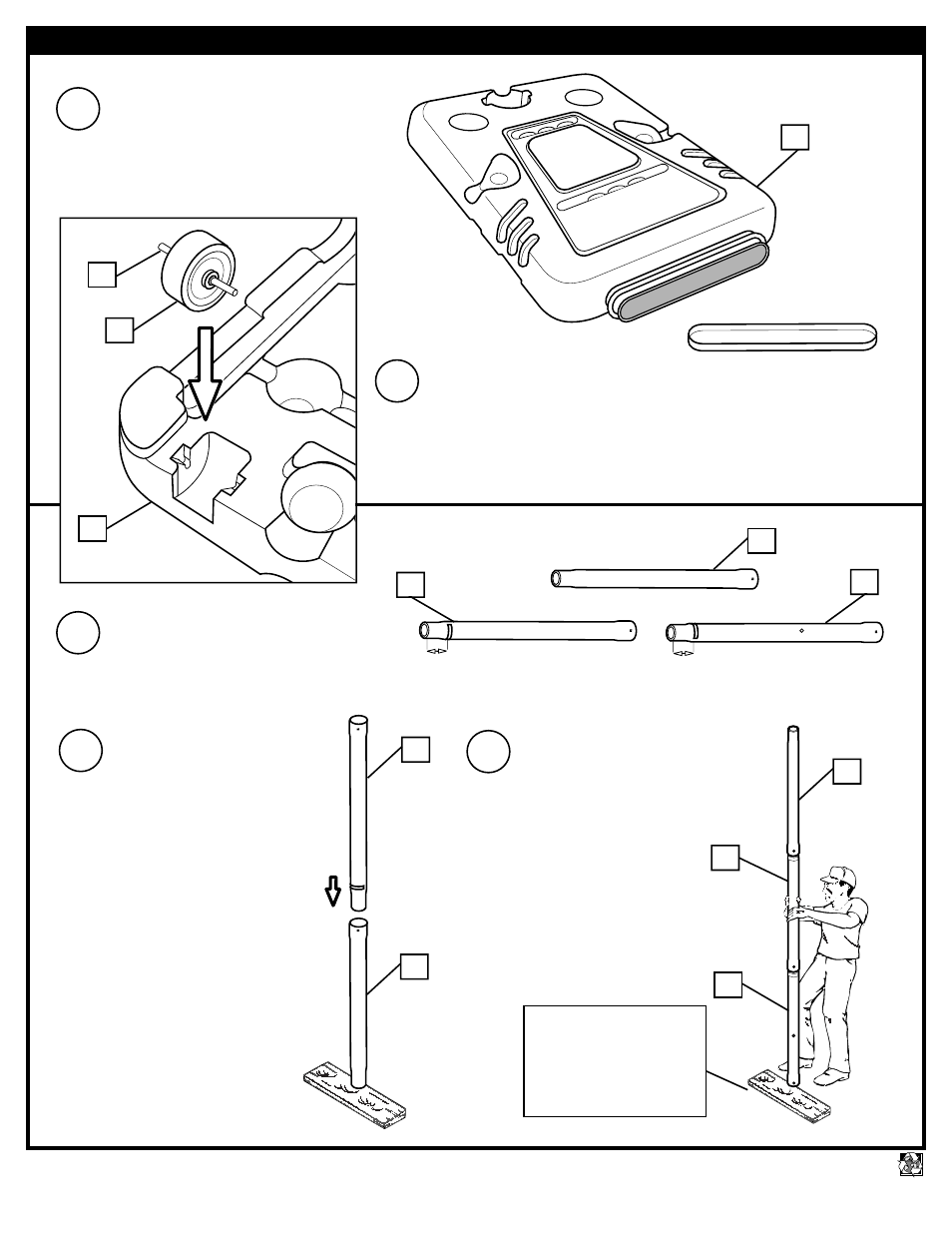

Remove end cap at end of tank (1) to
remove contents.
5. IMPORTANT! Add
bottom pole section (6) to
assembly as shown and
bounce until completely
tight.
NOTE: Pole sections
should have a 3-1/2"
(9 cm) minimum overlap.
5”
(13 cm)
IMPORTANT! Bounce
pole top (4) and middle
section (5) together as
shown until they no longer
move toward taped
reference mark. Upright
assembly.
NOTE: Pole sections
should have a 3-1/2"
(9 cm) minimum overlap.
4
5
4
5
6
Turn tank bottom side up. Insert axle rod (2) through
wheel (3), as shown. Secure wheel assembly to tank by
tapping wheel assembly downward with hammer. It will
snap into position. Repeat for opposite side, then
carefully, turn tank (1) over.
2.
WOOD SCRAP
•Chute de Planche
•Madera Sobrante
•Holzbrett (Abfallstück)
• Tavolozza di legno
• Stukje hout
