SPECIFICATIONS
Range . . . . . . . . . . . . . Up to 60 ft. (18.3 m); [varies with
surrounding temperature]
Sensing Angle . . . . . . . Up to 110°
Electrical Load . . . . . . . Up to 300 Watts Maximum
Tungsten
Power Requirements . . 120 VAC, 60 Hz
Operating Modes . . . . . TEST, AUTO and MANUAL
MODE
Time Delay . . . . . . . . . 1, 5, or 10 minutes
Sensitivity . . . . . . . . . . Adjustable
Replacement lamp . . . . T 300W (or less) halogen 120
VAC
HeathCo LLC reserves the right to discontinue prod-
ucts and to change specifications at any time without
incurring any obligation to incorporate new features in
products previously sold.
TEST AND ADJUSTMENT
❒ Turn on the circuit breaker and light switch.
Maximum
Range
110°
Maximum
Coverage Angle
NOTE: Sensor requires about 1 1 /
2
minutes to calibrate
before it will detect motion. When first turned
on, wait about 1
1 /
2
minutes.
Avoid aiming the control at:
• Objects that change temperature rapidly, such as
heating vents and air conditioners. These heat
sources could cause false triggering.
• Areas where pets or traffic may trigger the control.
• Nearby large, light-colored objects reflecting light may
trigger the shut-off feature. Do not point other lights
at the sensor.

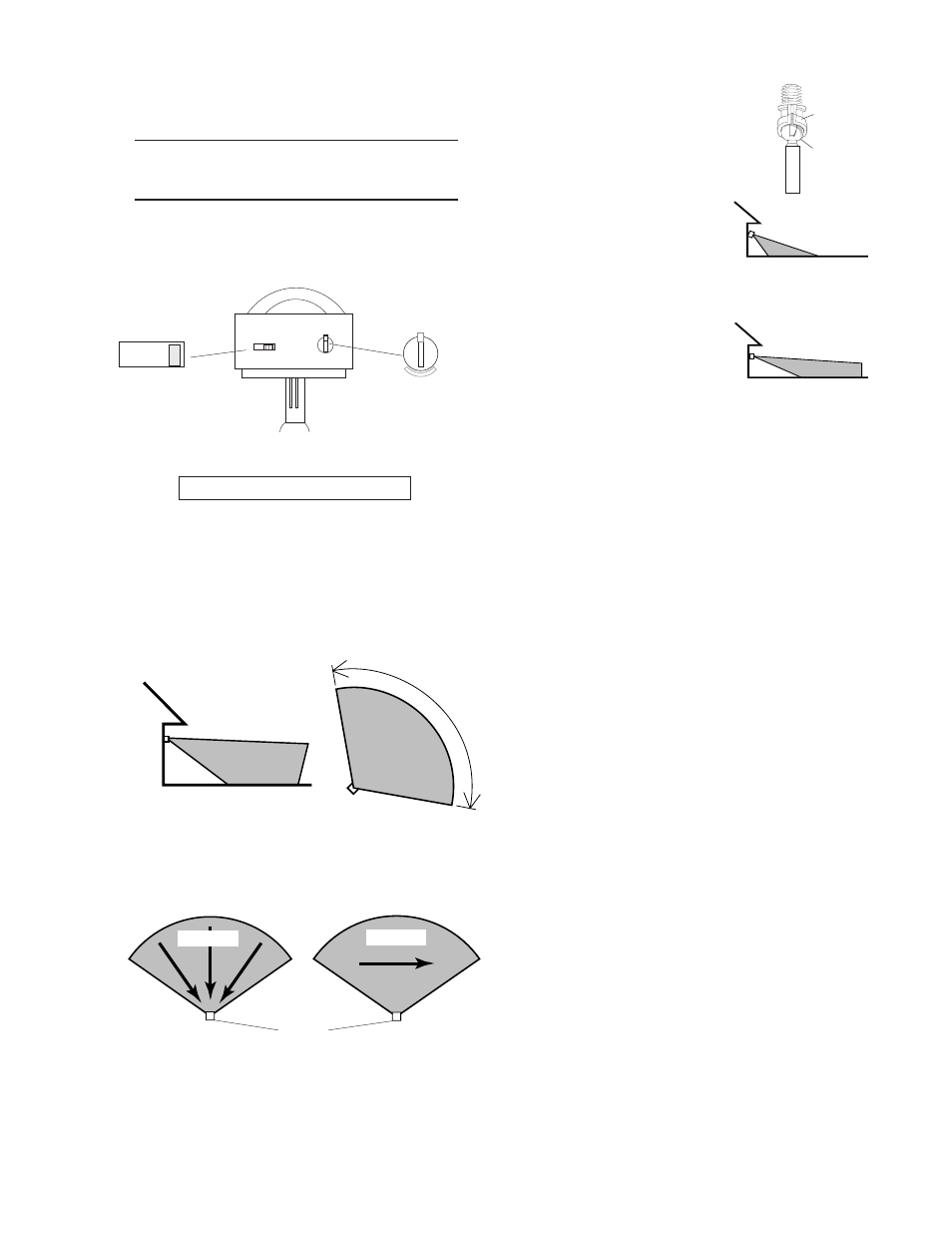

60 ft.
(18.3 m)
The control is most sensitive to motion across it.
Least Sensitive Most Sensitive
Motion
Sensor
Motion
❒ Loosen the clamp screw in
the sensor ball joint and gently
rotate the sensor to aim.
❒ Walk through the coverage
area noting where you are
when the lights turn on. Move
the sensor head up, down,
or sideways to change the
coverage area.
❒ Set SENSITIVITY as needed.
Too much sensitivity may in-
crease false triggering.
❒ Secure the sensor head
into position by tightening
the clamp screw. Do not
overtighten the screw.
❒ Set the amount of TIME the
lights stay on after motion is
detected. It is selectable from
1, 5, or 10 minutes.
Bottom of Sensor
ON-TIME
10 5 1 TEST MIN MAX
SENS
8 ft.
(2.4 m)
❒ Turn the SENSITIVITY (SENS) control to the mid
position and the ON-TIME control to the TEST
position.
Clamp
Screw
Ball
Joint
Aim Sensor
Down for Short
Coverage
Aim Sensor
Higher for Long
Coverage
