Heath Zenith Motion Sensor Quartz SL-5309 User Manual

Page 2

598-1267-01

❒

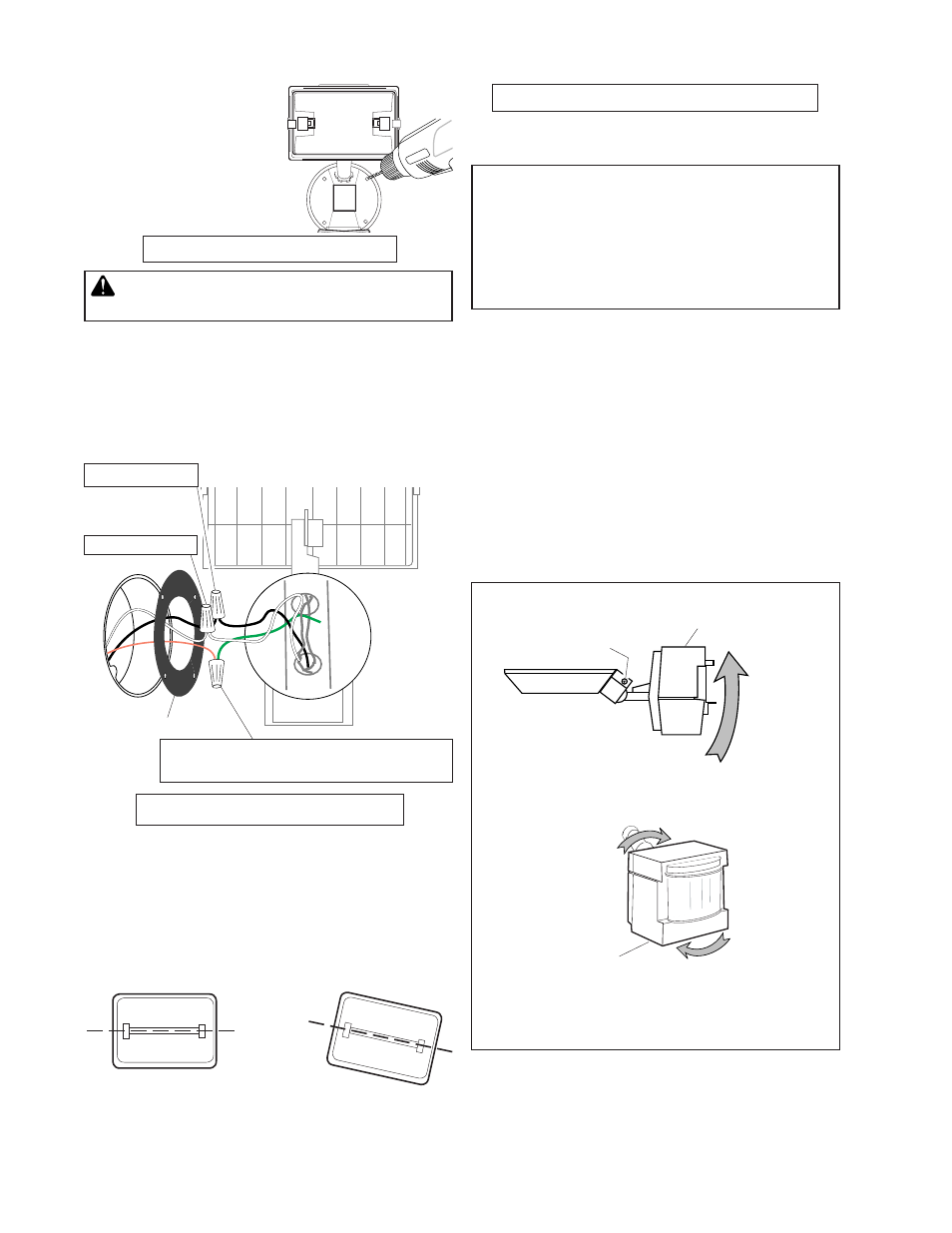

Remove the existing light fixture.

❒

Strip about 5/8" (16 mm) insulation from the existing

junction box wiring.

❒

Route the Light Control’s wires through the large

hole in the gasket.

❒

Twist the junction box wires and fixture wires together

as shown. Secure with a wire connector.

For proper operation and safety, the light fixture
must be above the sensor.
❒

Align the Light Control cover plate and cover plate

gasket and the junction box. Insert and tighten the
mounting screws.

❒

If not installed on a weatherproof box or if an adaptor

plate is used,

caulk the wall plate and mounting

surface with silicone weather sealant.

ount

the

ight

ontroL

Cover Plate Gasket

The halogen light must be
mounted horizontally (+/- 4°).

RIGHT

WRONG

uLB

nstaLLation

eLaMping

❒

When re-lamping,

turn power off and let the fixture

cool.

CAUTION to avoid fire or burn hazards:

• Allow fixture to cool before touching. The bulb and

fixture operate at high temperatures.

• Keep fixture at least 2" (51 mm) from combustible materi-

als. Do not aim at objects closer than 3 feet (1 m).

• Re-lamp with type T 300W (or less) halogen 120

VAC lamp only.

❒

Drill out the holes if
needed to mount the
backplate to the junction
box.

Black to Black

White to White

❒

Rotate the sensor head towards the clamp screw

joint.

Clamp Screw

Controls

❒

Then rotate the sensor head clockwise 180° so

the controls face down.

Controls

Junction box ground wire to green
ground wire on fixture.

❒

Remove glass cover and remove the old bulb by

pushing the bulb towards the right until the left side
of the bulb is clear of the left socket.

❒

To insert the new bulb, push the bulb into the right

socket so the bulb fits completely into the left
socket.

❒

Check that the bulb is seated properly.

❒

Re-install the glass cover.

For under eave installation, the sensor head must
be rotated as shown in the next two steps for proper
operation and to avoid the risk of electrical shock.

For eave mount only:

If the sensor pops out of the ball joint, loosen the
clamp screw and push the sensor back into the ball
joint. Tighten the clamp screw when done.

WARNING: Turn power off at circuit breaker

or fuse.

ire

the

ight

ontroL
