Havis-Shields C-VS-800-CV User Manual
Page 2
C-VS-800-CV_INST_9-07
2

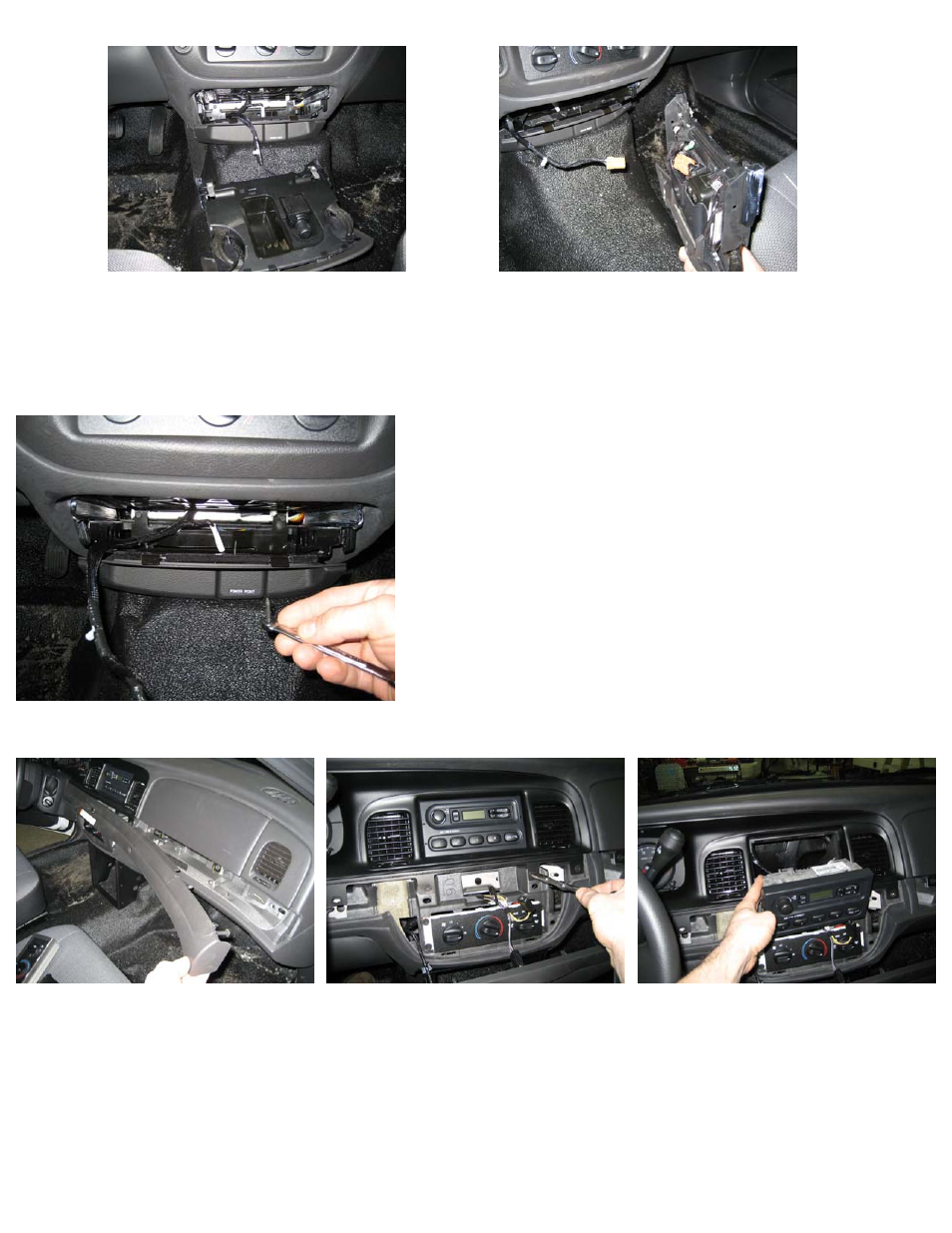

With the tray removed, wire
harnesses for the lighter outlet and
ashtray light will need to be
removed
Unplug from the accessories.
Remove the ashtray frame from the dashboard by removing the
hex head screws located in the back of the frame.
This is not necessary. If desired, you can cut the power point
bracket out of the ashtray/power point assembly.
Note: This must be removed in order for the console to slide into
the ashtray slide rails.
Note: The next few steps are for application requiring the
relocation of the AM/FM radio and/or the HVAC controls. If
the removal of these controls is not required, proceed to page 3
Remove trim panel as shown above
Remove the AM/FM radio from the
dash. Unplug the wire harness and
antenna. Re-route harness to OEM
ashtray location
Remove the (2) screws above the
HVAC controller to ease the removal
of the AM/FM Radio. Remove the
hex head screws holding the
controller to the dash. (If necessary)
