Havis-Shields Flip Down Rear Step Option KK-ST-FLIP User Manual
Page 2
KK-ST-FLIP-INST-6-07
• Start with the Frame Brackets and then check for square again.
• Proceed to tighten Support Channels to Frame Brackets then Frame Brackets to Step
Plate.
Note: There are numerous holes in the step brackets for other Vehicle applications.
IF FLIP PORTION OF STEP WAS ODERED SEPARATELY USE THE FOLLOWING:
INSTALLATION:

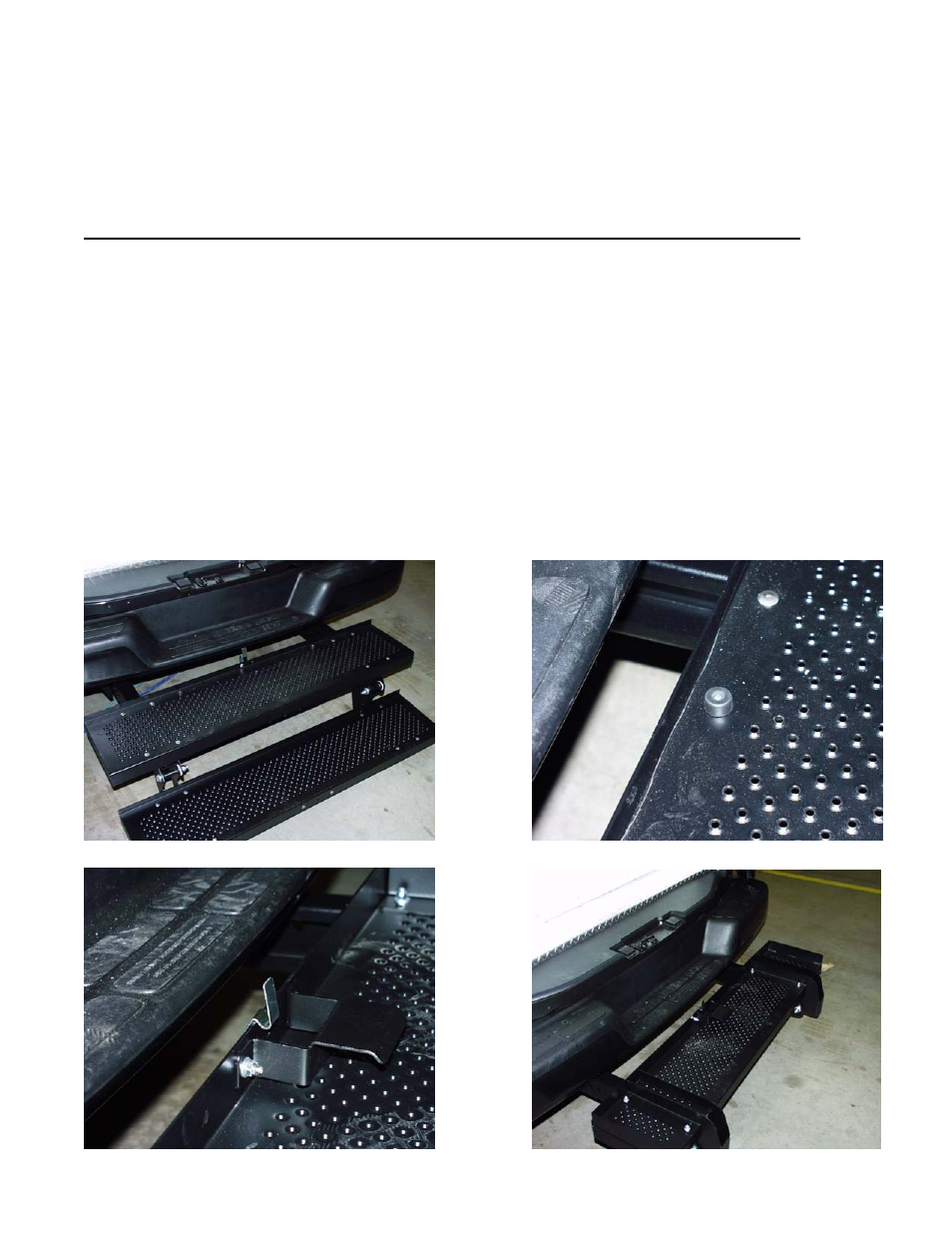

1. MOUNT FLIP DOWN STEP:
• Remove ½” hardware located on frame brackets of existing step.
• Install (4) flip down step adapter plates reusing ½” hardware removed from
permanent rear step.
• Attach 2
nd
step to existing adapter plates using (2)-1 per side-½” x 3 ½” Hex bolt,
washer, nylon spacer and nylock nut.
• Tighten hardware.
• Attach spring latch onto existing rear step using ¼” x ¾” Stainless Carriage bolt and
nylock nuts. Some models do not contain prepunched hole for spring latch..
• Mount rubber bumbers to existing step.
• Using outer pre-punched holes, attach rubber bumbers to existing step using #10 x ¾”
machine screw and nylock nuts. Do not overtighten.
