Connecting Through a Router
You can connect the HP Digital Entertainment Center to a
LAN network and then to a DSL modem or Cable modem.
You can use your HP Digital Entertainment Center as a
client if you already have a home network functioning.
Refer to your router, DSL/cable modem, and ISP
documentation to establish a connection.
To connect to the Internet, through a router and a
broadband connection, to the HP Digital Entertainment
Center:
1 Connect an RJ-45 network cable (not provided) from
the HP Digital Entertainment Center back panel
Ethernet connector to a 10BaseT, 100BaseT, or
1000BaseT port on the router.
2 Check the following:
a The router is connected to the DSL/cable modem.
b The DSL/cable modem is connected to an outside
Internet connection.
c The router power LED and connect LEDs are on.
d The DSL/cable modem power LED and connect
LEDs are on.

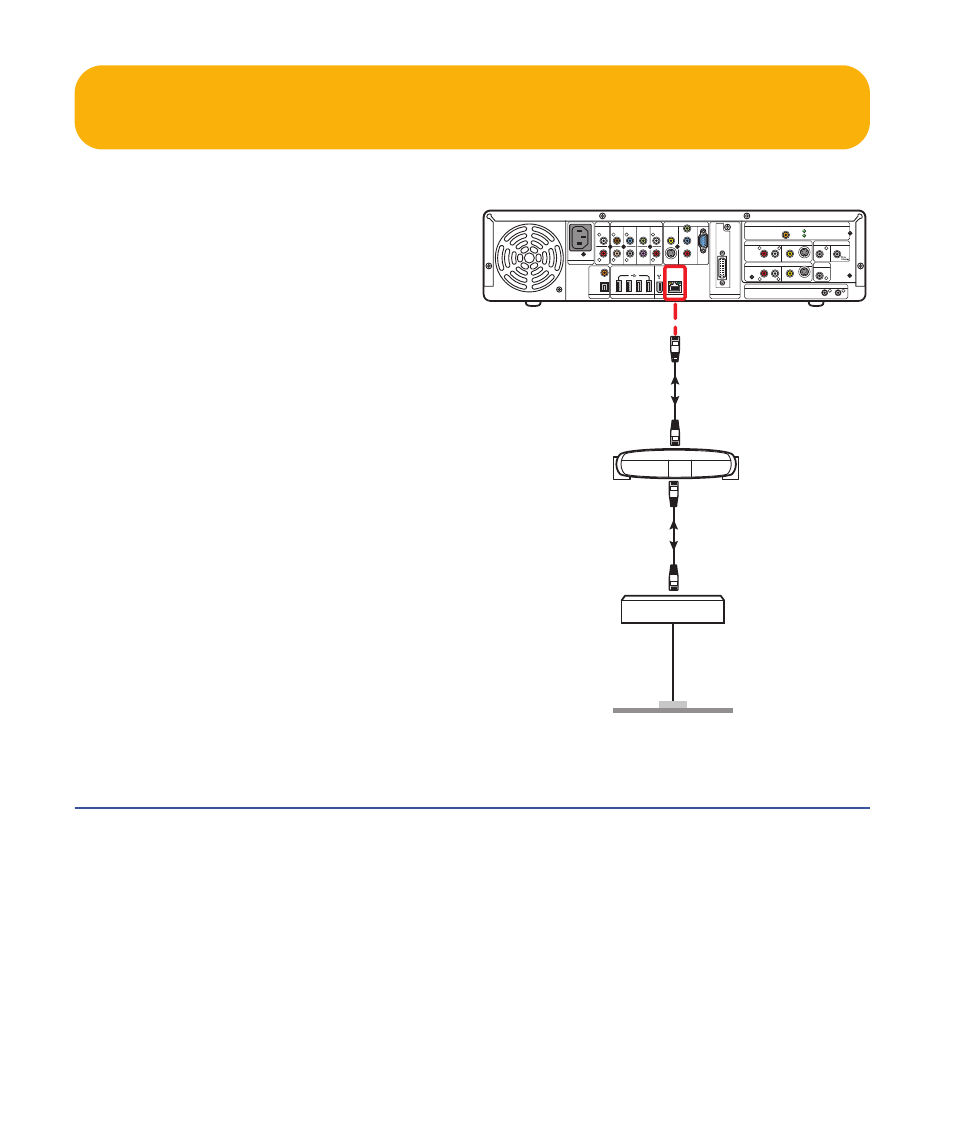

Router Internet connection
