3C905B-TX NIC Specifications
16 English
3C905B-TX NIC Specifications

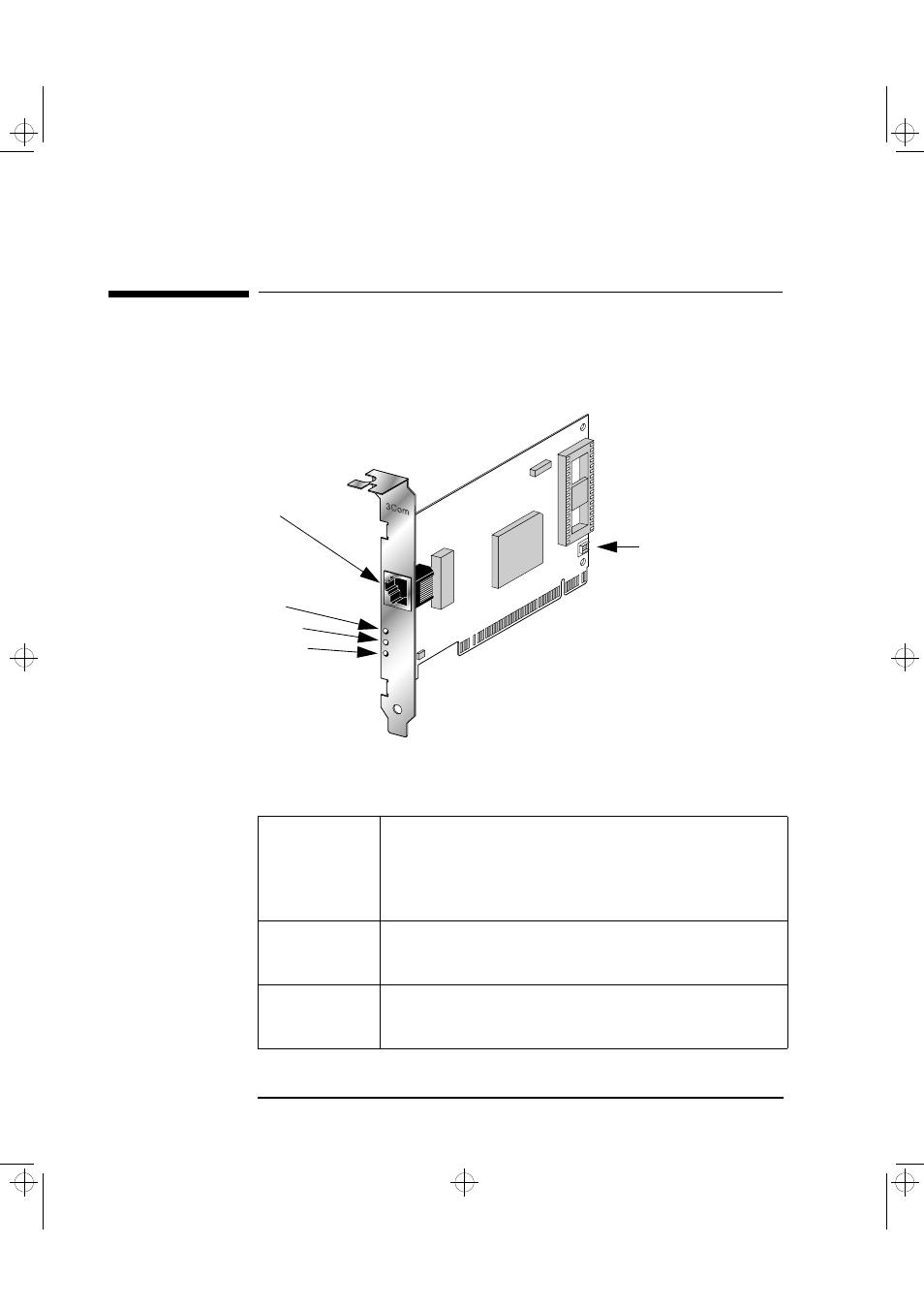

Physical Layout
Specifications
Network Interface • 10 Mbps Ethernet 10BASE-T: Ethernet IEEE 802.3 industry standard
for a 10 Mbps baseband CSMA/CD local area network.
• 100 Mbps Ethernet 100BASE-TX: Ethernet IEEE 802.3u industry
standard for a 100 Mbps baseband CSMA/CD local area network.
Physical Dimensions • Height: 8.57 cm (3.75 in.)
• Length: 12.07 cm (4.75 in.)
Environmental
Operating Range • Operating temperature: 0° to 70° C (32° to 158° F)
• Humidity: 10 to 90% noncondensing
DATA
TX
ACT
10
100
L
N
K
Wake on LAN
(WOL) Connector
LAN Connector
Refer to “LAN Connection Status LEDs”
on page 17 for more information
100 LNK LED
10 LNK LED
ACT LED
