Heat & Glo • SL-550 / 750 / 950TR-D • InD • 2044-985 Rev. M • 10/06

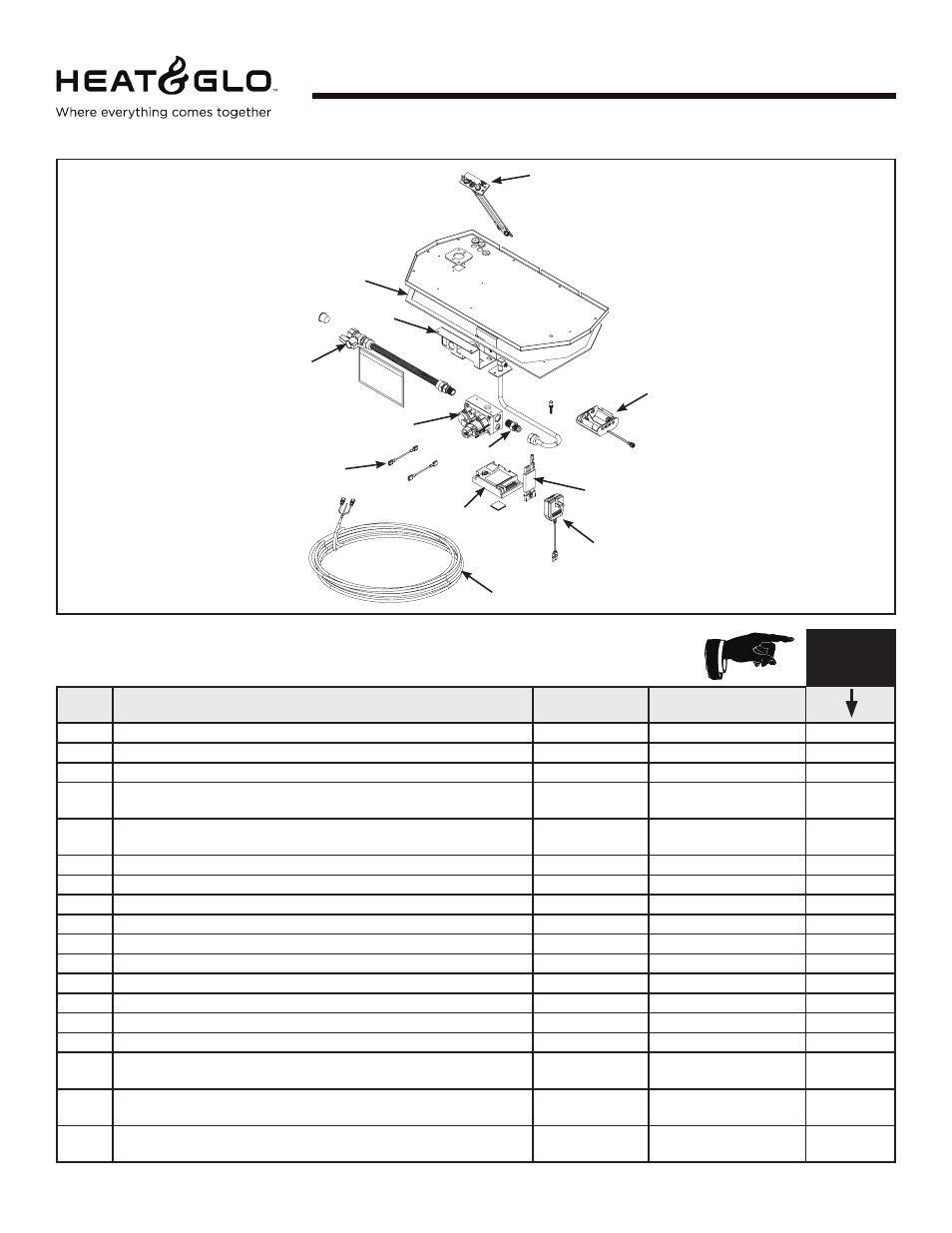

(NG, LP) Exploded Parts Diagram
Service Parts
SL-550 / 750 / 950TR-D-IPI
Beginning Manufacturing Date: 1-06
Ending Manufacturing Date: ______
Intermittent Pilot Ignition
Valve Assembly
2
5
4
11
9
7
8
AVAILABLE
TO SHIP IN
24 HOURS
ITEM COMMON PARTS SERIAL # PART NUMBER
1 Jumper Wires 2012-206 Y
2 Thermostat Wire Assembly 2045-024 Y
3 Burner Neck Gasket 2045-407
4 Pilot Assembly NG
PRE 10-06
POST 10-06
385-510A
2090-012 Y
Y
4 Pilot Assembly LP
PRE 10-06
POST 10-06
385-511A
2090-013 Y
Y
5 Valve Bracket 2025-101
6 Valve Plate Gasket 530-431
7 Flex Ball Valve Assembly 302-320A Y
8 Valve NG 750-500 Y
8 Valve LP 750-501 Y
9 Flexible Gas Connector 530-302A Y
10 Module 593-592 Y
11 Wire Assembly 593-590A Y
12 Battery Pack 593-594A Y
13 3 Volt Transformer 593-593A Y
Pilot Bracket
PRE 10-06
POST 10-06
530-164
N/A
Pilot Assembly Support
PRE 10-06
POST 10-06
397-121
N/A
Ground Strap
PRE 10-06
POST 10-06
385-512
N/A
10
12
13
6
1
