Control Keypad
53(96)
7
7.2
Keypad push-buttons
The NXL seven-segment control keypad features 7 push-buttons that are used for the control of the
frequency converter (and motor) and parameter setting.

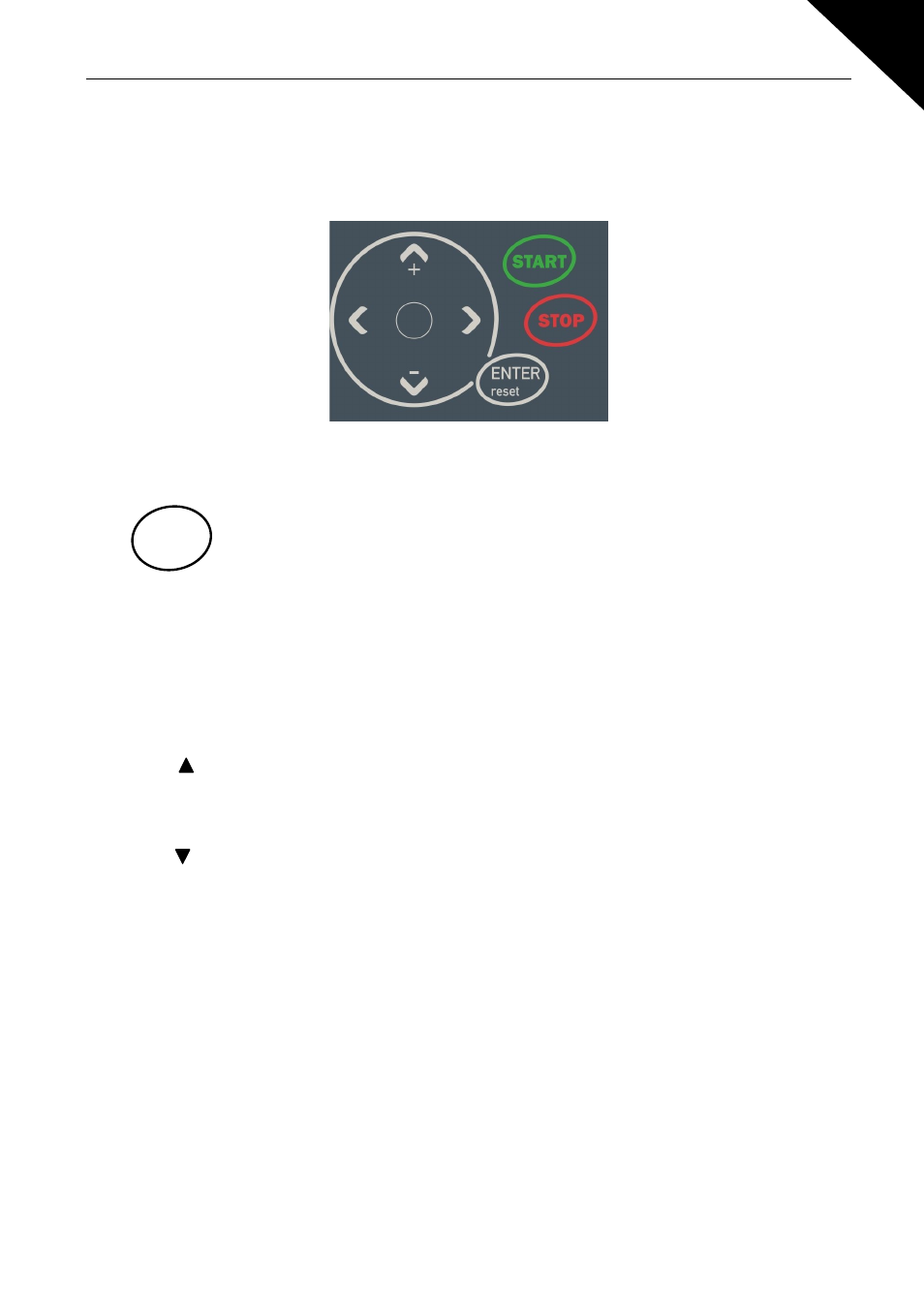

Figure 7-2. Keypad push-buttons
7.2.1 Button descriptions
ENTER
reset
=
There are two operations integrated in this button. The button operates
mainly as reset button except in the parameter edit mode. The button
operation is shortly described below.
ENTER
=
The Enter button serves for:
1) confirmation of selections
2) fault history reset (2…3 seconds)
reset
=
This button is used to reset active faults.
Note! The motor may start immediately after resetting the faults.
=
Browser button up
Browse the main menu and the pages of different submenus.
Edit values.
=
Browser button down
Browse the main menu and the pages of different submenus.
Edit values.
=
Menu button left
Move backward in menu.
Move cursor left (in parameter edit mode).
Exit edit mode.
Hold down for 5 seconds for quick change of control place;
manual (keypad)
remote (fielbuds or I/O).
=
Menu button right
Move forward in menu.
Move cursor right (in parameter edit mode).
Enter edit mode.
–
