Installation
23(96)
5

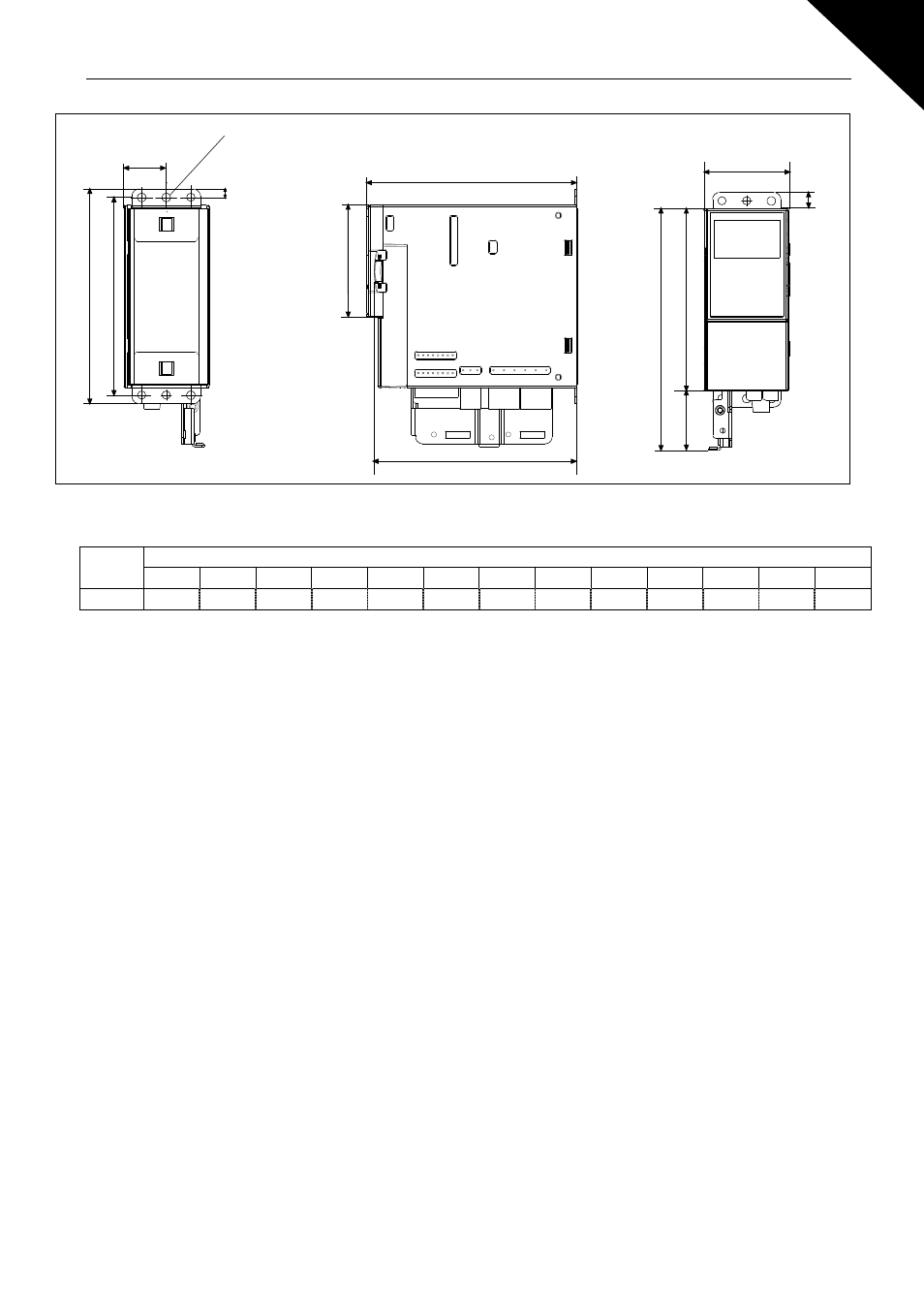

Figure 5-3. NXL Compact dimensions, MF2
Table 5-1. Dimensions of NXL, MF2
Dimensions (mm)
Type
W1
W2
H1
H2
H3
H4
H5
H6
H7
H8
D1
D2
∅
MF2
30
60
172
152
140
130
80
42
11
6
150
144
6
W1
Ø
H2 H3
H8
H5
D1
D2
H1
H4
H6
H7
W2
nxlk7.fh8
