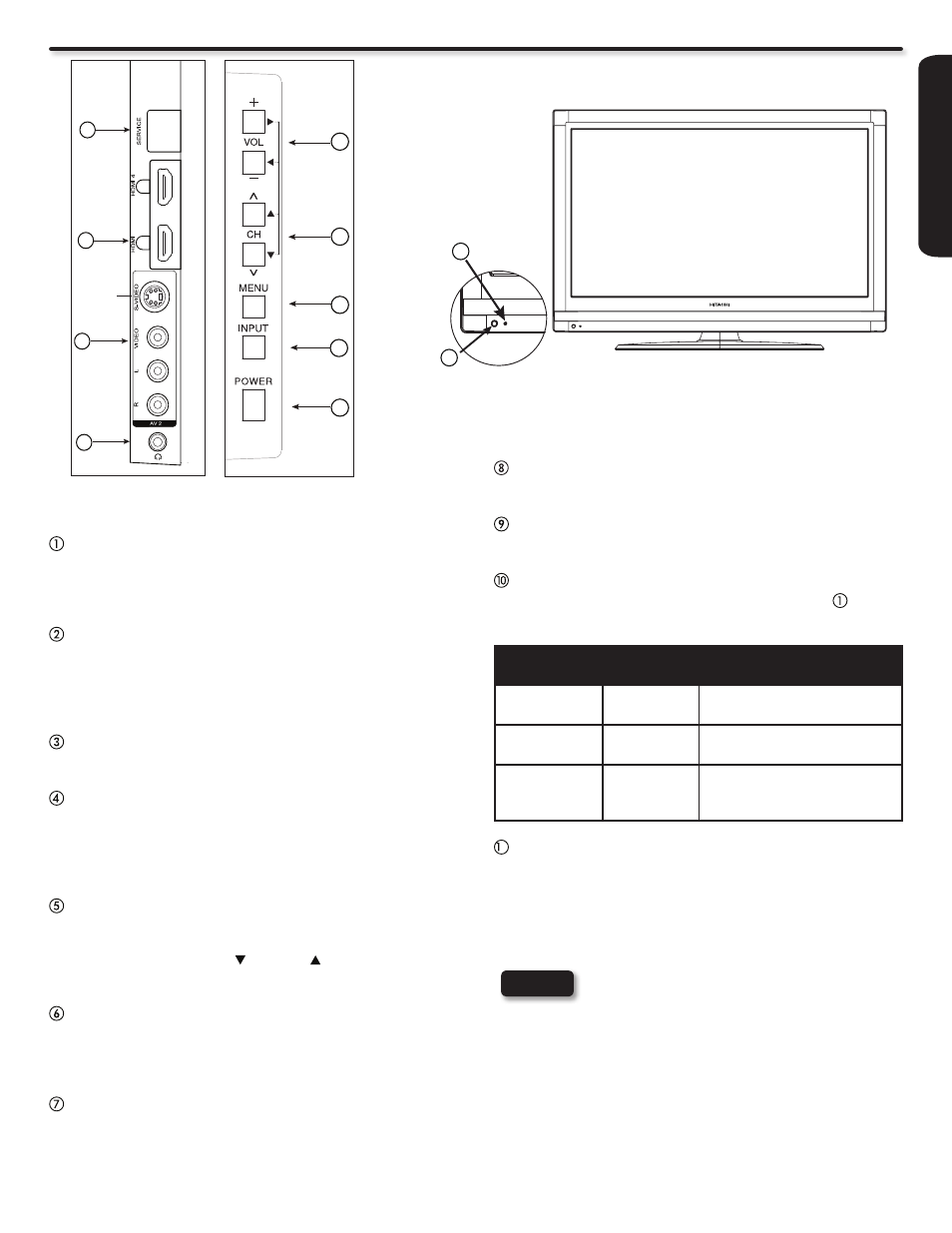

Side Panel Jacks & Controls
USB SERVICE Slot
This USB slot is for future software upgrades.
HEADPHONE Jack
Use this jack to connect headphones.
POWER LIGHT Indicator
To turn the TV ON, press the POWER button ( ). A blue
indicator lamp located on the lower left corner of the front
bezel illuminates to indicate the TV power is ON.
Indicating
Lamp
Power Sta-
tus
Operating
Lights
Red
OFF
(Stand-by)
When the LCD TV is plugged
to the AC outlet.
Lights
Blue
ON
TV Power is ON; picture is
shown.
Quickly
Blinking Red
ON
The TV is powering OFF.
It will soon be in the Off
(Stand-by) state.
1 REMOTE CONTROL Sensor
Point your remote control at this area when selecting channels,
adjusting volume, etc.
NOTES
• Your HITACHI LCD TV will not show any
picture if there is no video input when AV1,
AV2, Component1 or 2, or HDMI 1, 2, 3 or 4 is
selected. Instead, a message will indicate “No
Signal”, and the Power Light will remain Blue
until the TV is turned off or in Stand-by mode
(lights red) when not in use.
• The remote control can turn the TV ON/OFF
as well as control various devices and any
compatible HDMI CEC devices.
• Please do not put anything around the remote
control sensor.
FRONT VIEW
POWER Button
This button is for turning ON the LCD TV, in order to turn the TV
On, the standby indicator must be lit red. If the indicator is off, plug
the power cord into the AC outlet.
MENU Button
This button allows you to enter the MENU, making it possible
to set TV features to your preference without using the remote
control. This button also serves as the Return button when in
the MENU system.
INPUT Button
Press this button to access the INPUT menu.
VOLUME (+/-) Level
Press these buttons to adjust the sound level. The volume
level will be displayed on the TV screen. These buttons also
serve as the CURSOR left (◄) and right (►) buttons when in
the Menu system.
CHANNEL Selector
Press these buttons until the desired channel appears in the
top right corner of the TV screen. These buttons also serve
as the CURSOR down ( ) and up ( ) buttons when in the
MENU system.
AV2 (SIDE) Jacks
AV2 input provide composite Video and S-Video(Only for
L42A404) jacks for connecting equipment with this capability,
such as a DVD player , Game Console or Camcorders.
HDMI 3 & HDMI 4
Use these side HDMI inputs for AV device such as set
top boxes or DVD players equipped with an HDMI output
connection (see page 14 for reference).
