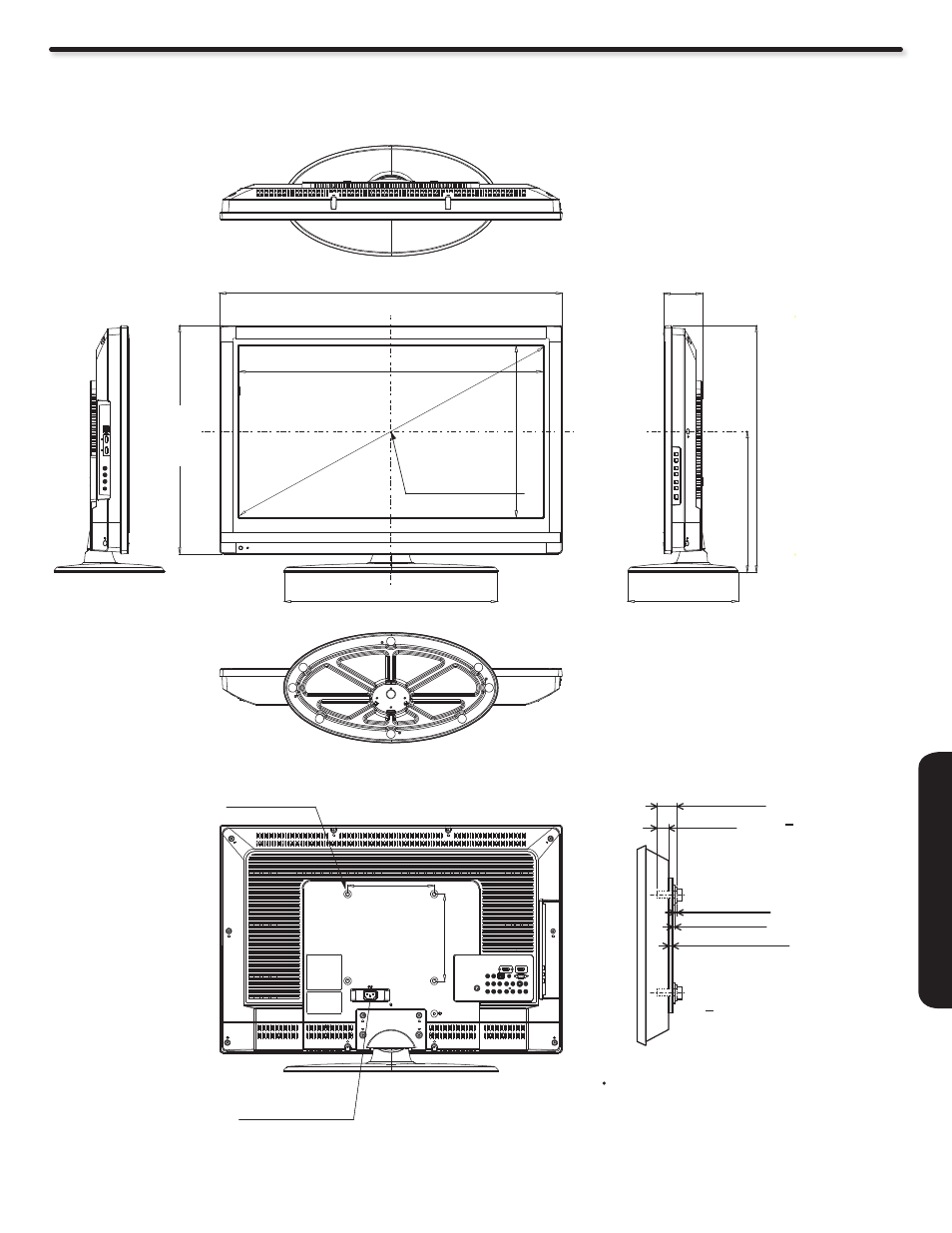

Set Dimensions
L32A404 model (Includes Table Top Stand) Weight (lbs./kg): 26.4/12
Rear View
Use as Reference for Wall Mount Bracket
Units : Inches (mm)
The screw type : Thread ISO M6 (Metric
type, do not use Standard type).
Side View
Wall Mount Screw specification
20 3/4 (527.2)
27 1/2 (698.4)
(ACTIVE AREA)
19 1/2 (495.4)
15 15/32 (392.9) 31.51 (800.3) (ACTIVE AREA)
12 25/32 (325.0)
22 7/16(569.6)
CENTER OF THE SCREEN
3 9/16 (90.1)
10 1/16 (255.4)
LOCATION OF THE
POWER CORD
HOLE FOR
WALL MOUNT
(4 PLACES)
31 1/8 (790.5)
7 7/8 (200.00)
7 7/8 (200.00)
Screw Length (A)
Insertion Length (B)
Spring Washer (C)
Plane Washer (D)
Wall Mount Bracket (E)
Example :
A = B+C+D+E
A: 13.5~15.5 mm.
B: 8.5~10.5 mm.
C: 1 mm.
D: 1 mm.
E: 3 mm.
