14
Side Panel Connections

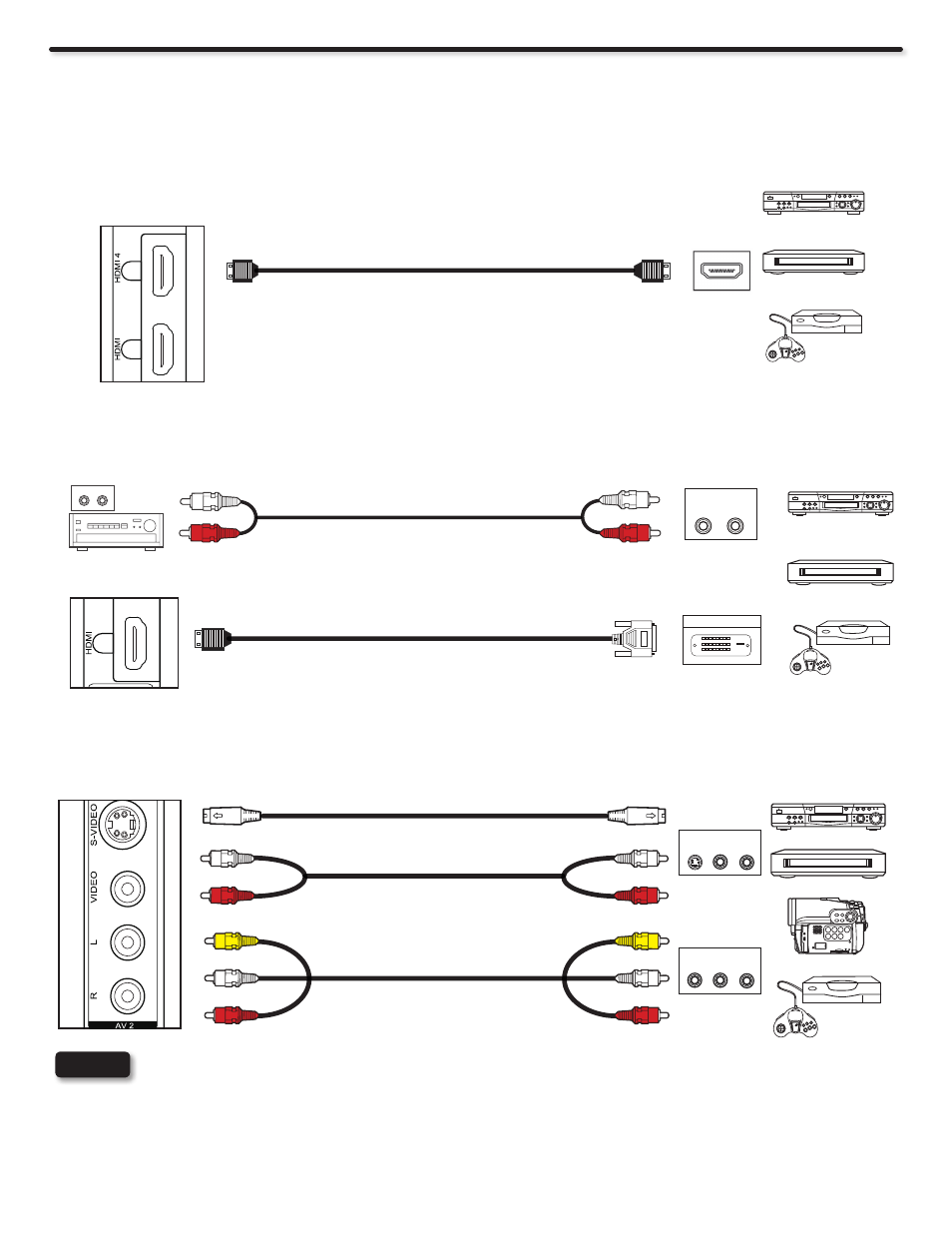

The following connection diagrams are offered as suggestions. However, you may need to modify them to accommodate your particular
assortment of devices and features. For best performance, video and audio cables should be made from coaxial shielded wire.
There are two SIDE panel HDMI jacks provided as a convenience to allow you to easily connect HDMI or DVI signals from a DVD, set top
box, Video Game as shown in the following examples (When a DVI product is connected, the use of a separate audio device is necessary
for audio, use an Audio Amplifier and connect to the Audio In jacks).
A) CONNECTING HDMI SIGNAL
DVD player
Set-Top Box
Home video game system
HDMI OUT
3
USB/
HDMI HDMI
HDMI DIGITAL
OUTPUT CAPABILITY
SIDE INPUT PANEL
B) CONNECTING DVI SIGNAL
DIGITAL OUTPUT
OUTPUT
L R
3
USB/ DVD player
Set-Top Box
Home video game system
DVI to HDMI Cable
HDMI DVI
R (Red)
L (White)
R (Red)
L (White)
DVI DIGITAL
OUTPUT CAPABILITY
Audio Amplifier
AUDIO IN
L R
SIDE INPUT PANEL
The SIDE panel VIDEO and S-VIDEO (Only for L42A404) jacks are provided as a convenience to allow you to easily connect a Camcorder,
DVD, Video, Game and a VCR as shown in the following examples. (When connecting an S-VIDEO device, also connect the audio output
into theSide Audio Input jacks).
OR
COMPOSITE VIDEO or
S-VIDEO OUTPUT CAPABILITY
R (Red)
L (White)
VIDEO (Yellow)
R (Red)
L (White)
VIDEO (Yellow)
OUTPUT
VIDEO L R
SIDE INPUT PANEL
DVD player
VCR
Home video game system
Camcorder
L (White)
R (Red)
L (White)
R (Red)
OUTPUT
S-VIDEO L R
*S-Video Input Only for L42A404
NOTES
• Completely insert connection cord plugs when connecting to side panel jacks. If you do not, the picture and/or sound
may be abnormal.
• Cable plugs are often color-coded. Match colors of plugs and jacks, i.e. connect red to red, white to white, etc.
The exact arrangement you use to connect the VCR, Camcorder, DVD player, or HDTV set top box to your LCD TV is dependent on the model
and features of each device. Check the owners guide of each device for the location of video and audio inputs and outputs.
