10

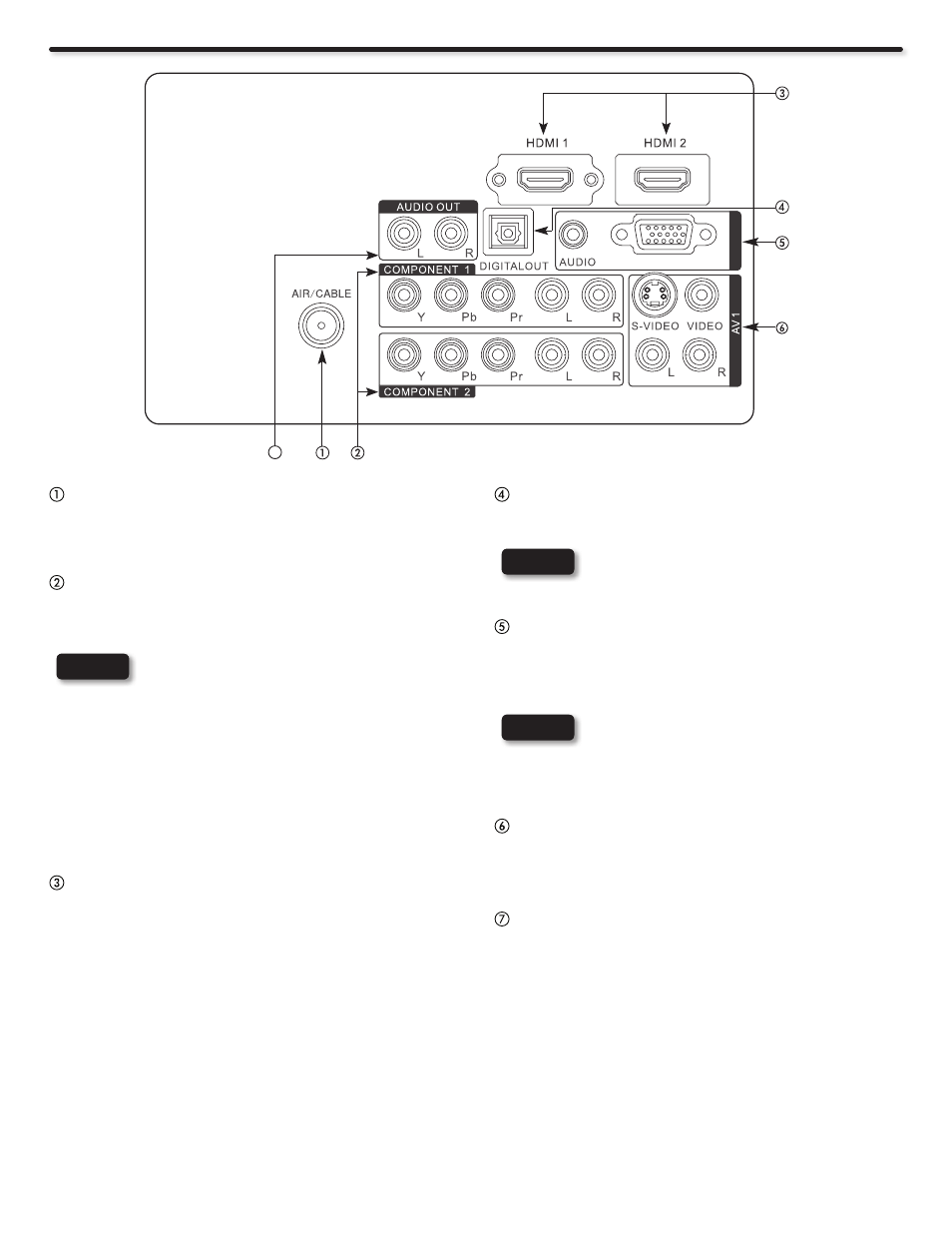

Rear Panel Jacks
AIR/CABLE Terminal
To switch between Cable and Air, go to the Channels Menu
option to change the signal source CABLE or AIR (see page
33).
COMPONENT: Y-P b P r and AUDIO Inputs
Component 1 and 2 provide Y-P b P r and Audio jacks for
connecting device with this capability, such as a DVD player
or set top box.
NOTES
• Your component outputs may be labeled
Y, B-Y, and R-Y. In this case, connect the
components B-Y output to the TV’s P
b
input
and the components R-Y output to the TV’s
P r input.
• Your component outputs may be labeled
Y-C b C r . In this case, connect the component
C b output to the TV’s P b input and the
component C
r
output to the TV’s P
r
input.
• It may be necessary to adjust Tint to obtain
optimum picture quality when using the Y-P b P r
inputs (see page 24).
HDMI 1/DVI & 2 (High Definition Multimedia
Interface)
HDMI input for your AV device such as set top boxes or DVD
players equipped with an HDMI output connection.
RG
B
RGB
7
DIGITAL OUT (Optical Digital Audio)
This jack provides Digital Audio Output for your audio device that is
RAW and PCM compatible, such as an audio amplifier.
NOTE
The Digital Output option will grayout with all input
sources, except with a digital program channel on
the Air/Cable input source.
RGB and AUDIO Input
This jack provides RGB Audio Input for connecting a PC using
RGB cable. This jack also provides Audio Input from a DVI
device when connected to the HDMI 1 Input. A DVI (device) to
HDMI (TV) connection must be made to HDMI 1.
NOTES
• It is not neccessary to connect the DVI Audio
Input when the connection to HDMI 1 is a
HDMI to HDMI connection.
• The DVI Audio Input is only compatible with
the HDMI 1 Input.
COMPOSITE AV1 Jacks
AV1 input provides composite Video and S-Video jacks for
connecting device with this capability, such as a DVD player,
Game Console, or Camcorders.
AUDIO OUT Jack
This jack provides stereo audio output from your TV to your
audio device, such as an audio amplifier.
