15

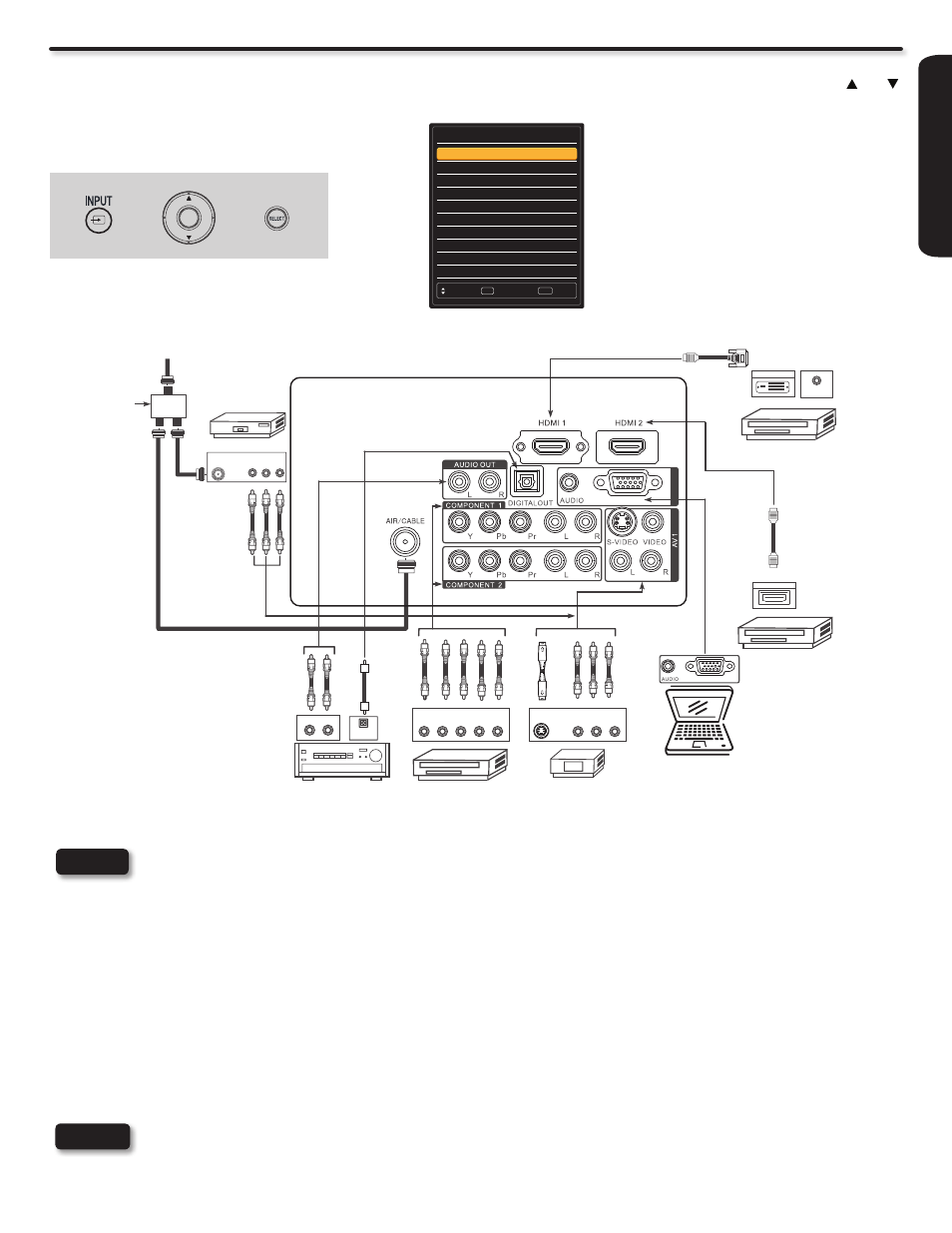

Rear Panel Connections
Before Operating External Video Devices
Connect an external device to one of the INPUT jacks, then press the INPUT button to show the Inputs List. Use the CURSORS ( and )
to select the Input of your choice. Then press the SELECT button to confirm your choice (see page 19).
+ +
Input List
0. TV
1. HDMI 1
2. HDMI 2
3. HDMI 3
4. HDMI 4
5. Component 1
6. Component 2
7. AV1
8. AV2
9. RGB
Move Select SEL Exit EXIT
Example: Selecting the
TV (Air/Cable) Input and
highlight “0.TV”.
RGB
RGB
RGB
Outside antenna
or
Cable TV coaxial cable
2-Way
signal
splitter
HDMI
to
HDMI
HDMI
to
DVI
HDMI DIGITAL
OUTPUT CAPABILITY
DIGITAL
OUTPUT CAPABILITY
DVD PLAYER
VIDEO GAME
with Composite
video capability
HDTV SET TOP BOX
DVD PLAYER
with Component
Output capability
HDMI OUTPUT
DIGITAL OUTPUT
AUDIO OUT
OUTPUT
S-Video Video L R
OPTICAL
IN
VCR
V L R
ANT
IN
STEREO SYSTEM
AMPLIFIER
OUTPUT
Y P
B
/C
B
P
R
/C
R
L R
Personal Computer
NOTE Cables are not included.
TIPS ON REAR PANEL CONNECTIONS
♦ COMPONENT Y-P b P r (COMPONENT 1 & 2) or HDMI (1 & 2) connections are provided for high performance DVD players, VCRs etc.
that have this feature. Use these connections in place of the standard video connection if your device has this feature.
♦ For additional information on connecting your other electronic devices, please refer to the device’s owners guide.
♦ Connect only 1 component (VCR, DVD player, camcorder, etc.) to each input jack.
♦ Your component outputs may be labeled Y, B-Y, and R-Y. In this case, connect the components B-Y output to the TV’s P
b
input and the
components R-Y output to the TV’s P r input.
♦ Your component outputs may be labeled Y-C b C r . In this case, connect the components C b output to the TV’s P b input and the components
C r output to the TV’s P r input.
♦ It may be necessary to adjust TINT to obtain optimum picture quality when using the Y-P b P r inputs. (See page 24).
♦ When using a HDMI input from a set top box, it is recommended to use a 1080p, 1080i or 720p input signal.
♦ When the HDMI input is a 1080p signal, it is recommended that the length of the cable should be less than 5 meters.
NOTES
• Completely insert connection cord plugs when connecting to side panel jacks. If you do not, the picture and/or sound
may be abnormal.
• Cable plugs are often color-coded. Match colors of plugs and jacks, i.e. connect red to red, white to white, etc.
