2 How to Install Accessories In Your PC
Installing Accessory Boards
28 English
6 Align the board’s connector with the slot’s socket. Firmly press the
board into the socket. Ensure that the board’s connector engages
completely with the socket and does not touch components on other
boards. The connector is fully in the socket when the board is aligned
with the other slot covers.
7 Secure the board by replacing the slot cover screw.
If you loosened the screws on adjacent slots, tighten them.
8 If you have installed a VESA-standard video adapter board, connect
the accessory board’s cable to the VESA pass-through connector on
the Matrox MGA Millinnium video board.
9 Install any other accessories before replacing the cover and
reconnecting the cables.

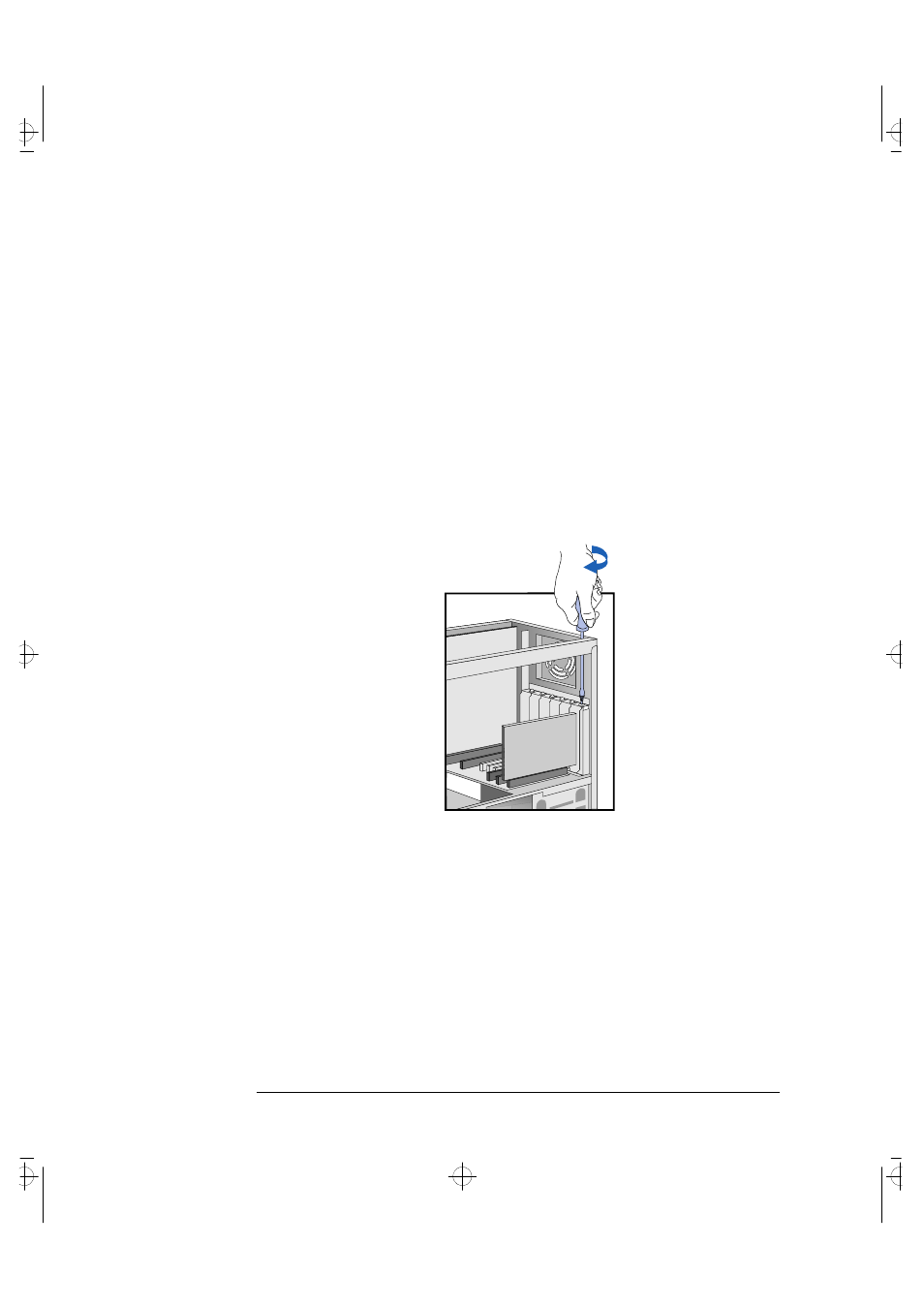

Step 7: Secure the board.
