F. Positioning the Logs
While still breakable, the logs do not become fragile until
after the appliance is burned and they have cured. After
curing, any handling must be done with care as breakage
can easily occur.
PLEASE NOTE: Logs have been designed to work
specifically with the burner of this appliance. Exact
placement will ensure proper operation of your gas
appliance and reduce sooting.

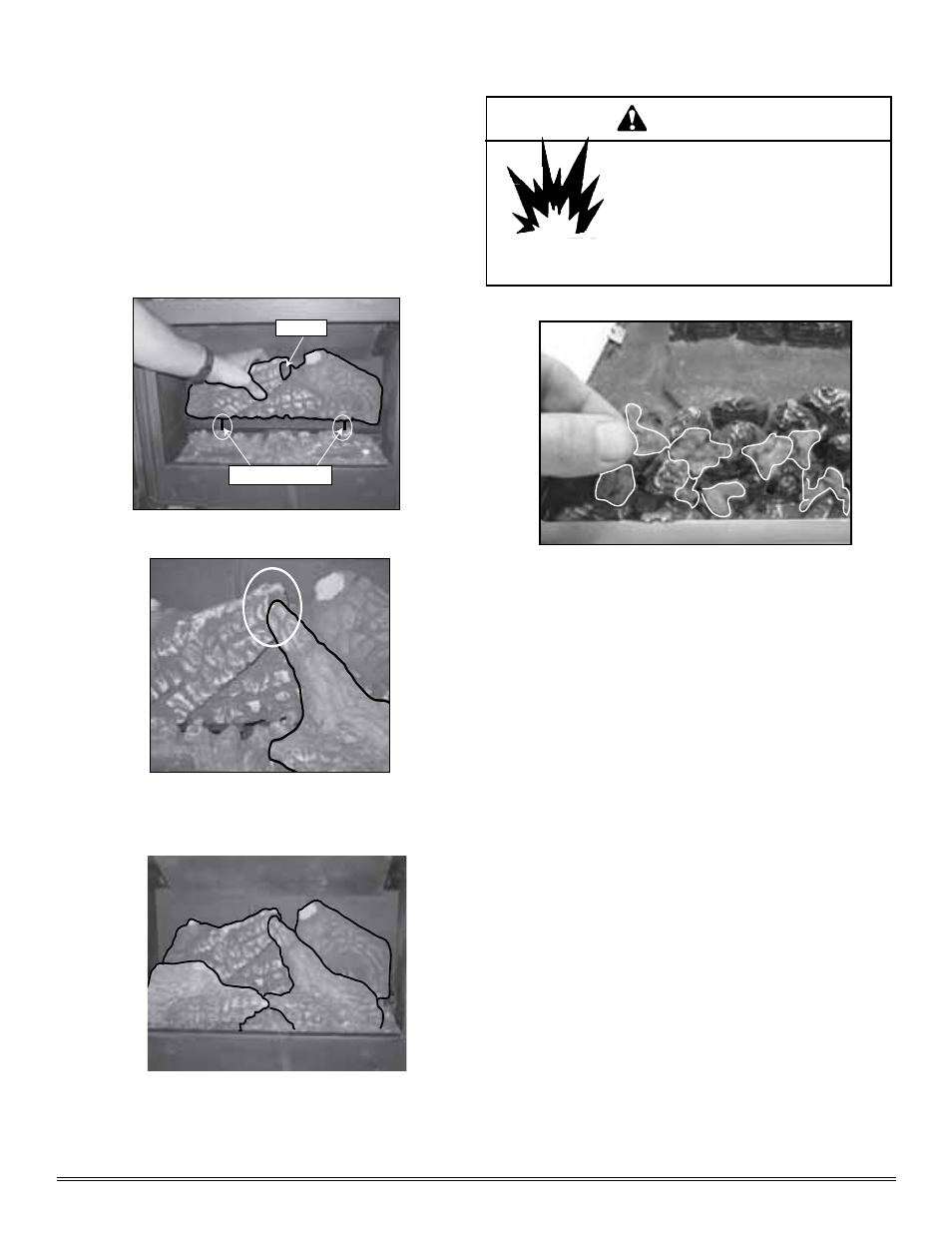

Figure 8.11 Position rear log (#1) over the two locating pins.
#1
Notch
Location Pins
#2
Figure 8.12 Put right front log (#2) into place on burner. Lean
log back towards rear log until it fits into notch in rear log.
#1
#2
#3
Figure 8.13 Place left front log (#3) into place on burner.
G. Mineral Wool
Improperly placed embers interferes with proper burner
operation.
• Follow ember placement instructions in
manual.
• Do NOT place embers directly over
burner ports.
• Replace ember material annually.
Explosion Risk.
WARNING
Figure 8.14 Place individual pieces of embers in front of and
around the gas log where they can be seen. Space them so
that gas can contact them on all sides. Avoid stacking the
embers on top of each other.
NOTE: Do not block gas ports.
H. Opening Front Door
The front door is held closed by a magnet. To open the door,
pull gently from the right side as you face the appliance.
