September 1, 2008 Page 23 Quadra-Fire · Castile Gas Stove · 7023-111E
6
Gas Information
A. Fuel Conversions
Before making gas connections ensure that the appliance
being installed is compatible with the available gas type.
Any natural or propane gas conversions necessary to meet
the appliance and locality needs must be made by a quali-
fied technician using Hearth & Home Technologies specified
and approved parts.
1. Converting to LP Gas
5/32 in. (4mm)
Allen wrench
Millivolt Generator
Thermocouple
Pilot Hood
KIT CONTENTS: Replacement orifice; replacement pilot
injector; valve regulator; conversion label.
TOOLS REQUIRED: #2 phillips screwdriver, slotted screw-
driver or Torx TH20, 5/32 in. Allen wrench, 3/32 in. Allen
wrench, 5/8 in. open end wrench, 7/16 in. socket, socket
wrench, and extension.

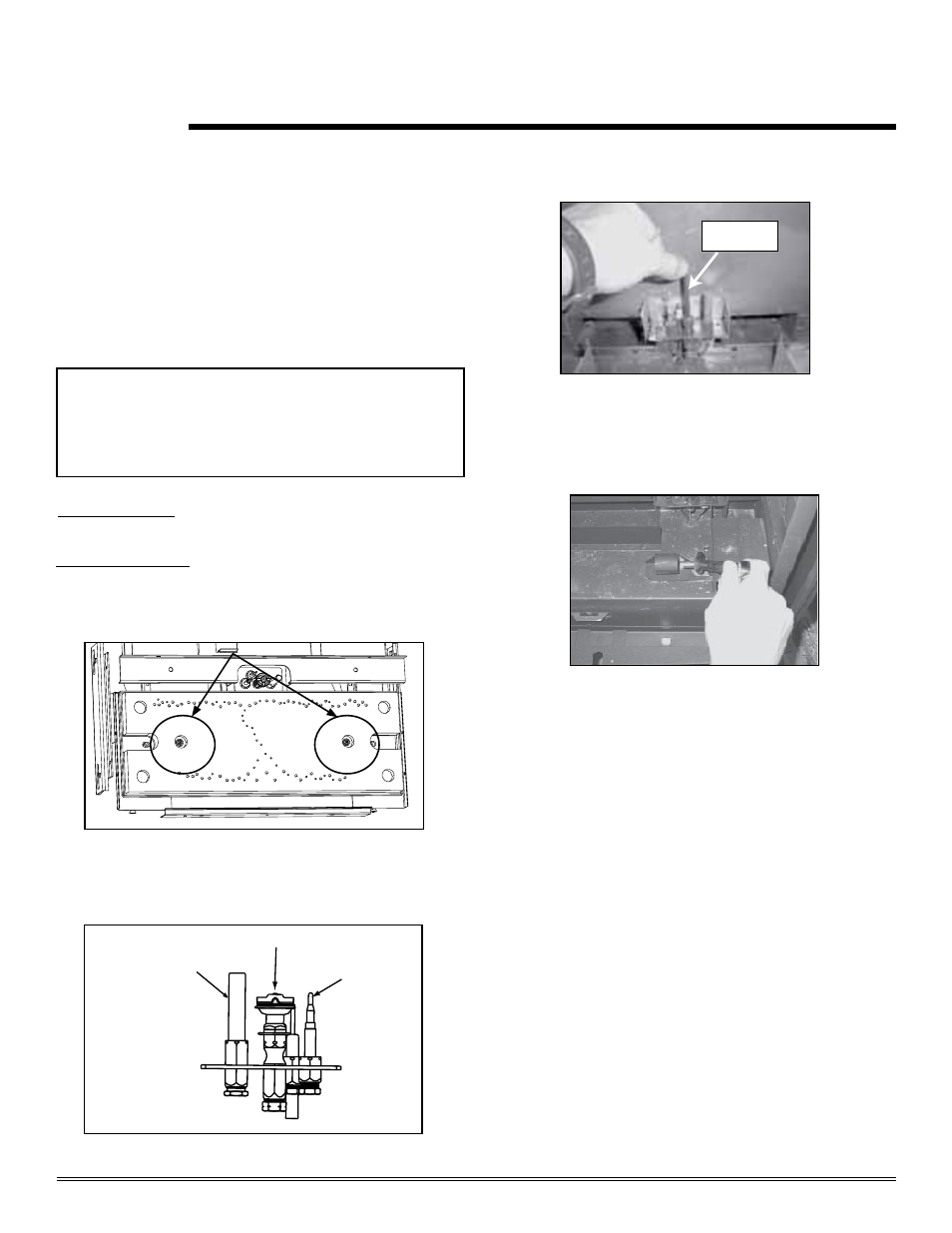

Figure 6.1 Remove front, glass, and logs (if installed).
Remove the optional brick set, if installed. Remove the two
screws, one on each side of burner. Retain fasteners for rein-
stallation. Lift burner up and out of the firebox.
Figure 6.2 Pull off the pilot hood and set it aside.
Figure 6.3 Use a 5/32 in. Allen wrench to remove the pilot
injector. Replace pilot injector with the one supplied with the
appliance (#35 for Propane, #62 for Natural Gas). Replace
the pilot hood, snapping into position.
Figure 6.4 Remove the main burner orifice using a 5/8 in,
wrench. Replace orifice with the proper size as indicated for
your gas type and venting.
PROPANE NATURAL GAS
.063 .106
Reinstall burner by placing it into the firebox.
Installation is the reverse of the removal. Tighten thumb-
screws only finger tight. DO NOT OVERTIGHTEN. Reinstall
the optional brick set, if applicable.
Reinstall logs, glass and front.
NOTE: Gas conversions should only be performed by a
qualified service person, and/or where required by state
and local codes, licensed installer/service technician. In
the Commonwealth of Massachusetts, installation must
be performed by a licensed plumber or gas fitter.
NOTE: Do not remove the retaining clip from the hood.
