Appliance Setup
A. Remove Shipping Materials
Remove shipping materials from inside or underneath the
firebox.
KIT CONTENTS: Rear vent grill.
TOOLS REQUIRED: Power drill; #2 Phillips bit; high-temp
silicone sealant (optional.)

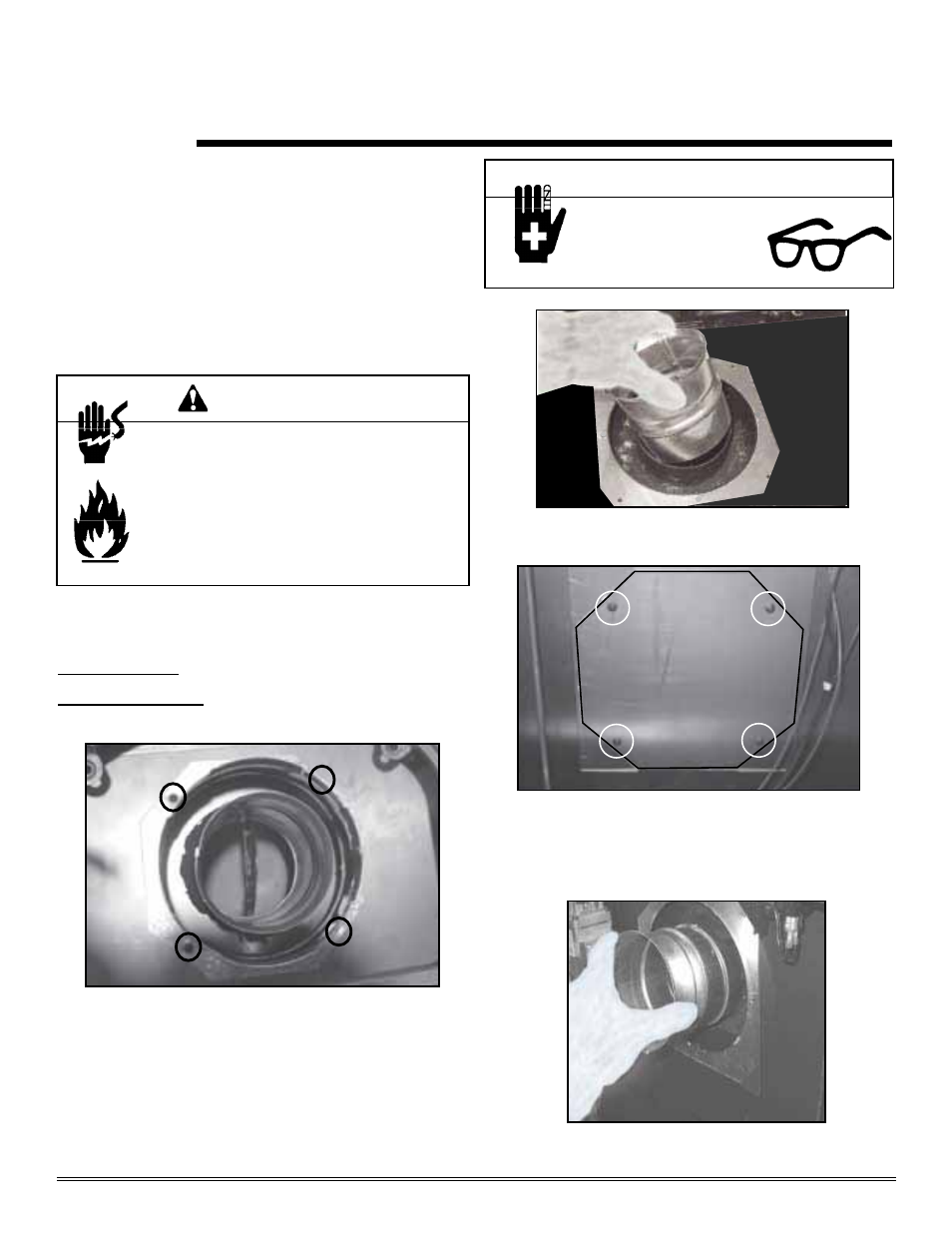

C. Top to Rear Vent Conversion
Figure 8.1 Remove top trivet, if installed. Remove vent pipe
adapter and gasket by removing 4 screws as indicated. (If
gasket breaks, apply high-temp silicone to bottom of adapter
before installing (shown in Figure 8.4).
Figure 8.2 Remove the inner collar adapter.
Figure 8.3 Remove the rear valve cover shield. Remove the
rear access plate and gasket by removing four screws. Save
the screws. Place the cover shield and gasket over the top
vent and attach with the four screws previously removed.
Figure 8.4 Insert the inner collar adapter to the rear vent
flue.
CAUTION
Sharp Edges
• Wear protective gloves
and safety glasses during
installation.
B. Accessories
Install approved accessories per instructions included with
accessories. Refer to Section 12 for appropriate accesso-
ries.
Shock or fire risk.
Use ONLY optional accessories approved for
this appliance.
• U s i n g n o n - l i s t e d a c c e s s o r i e s v o i d s
warranty.
• Using non-listed accessories may result in a
safety hazard.
• Only Hearth & Home Technologies approved
accessories may be used safely.
