Page 30 September 1, 2008 Quadra-Fire · Castile Gas Stove · 7023-111E

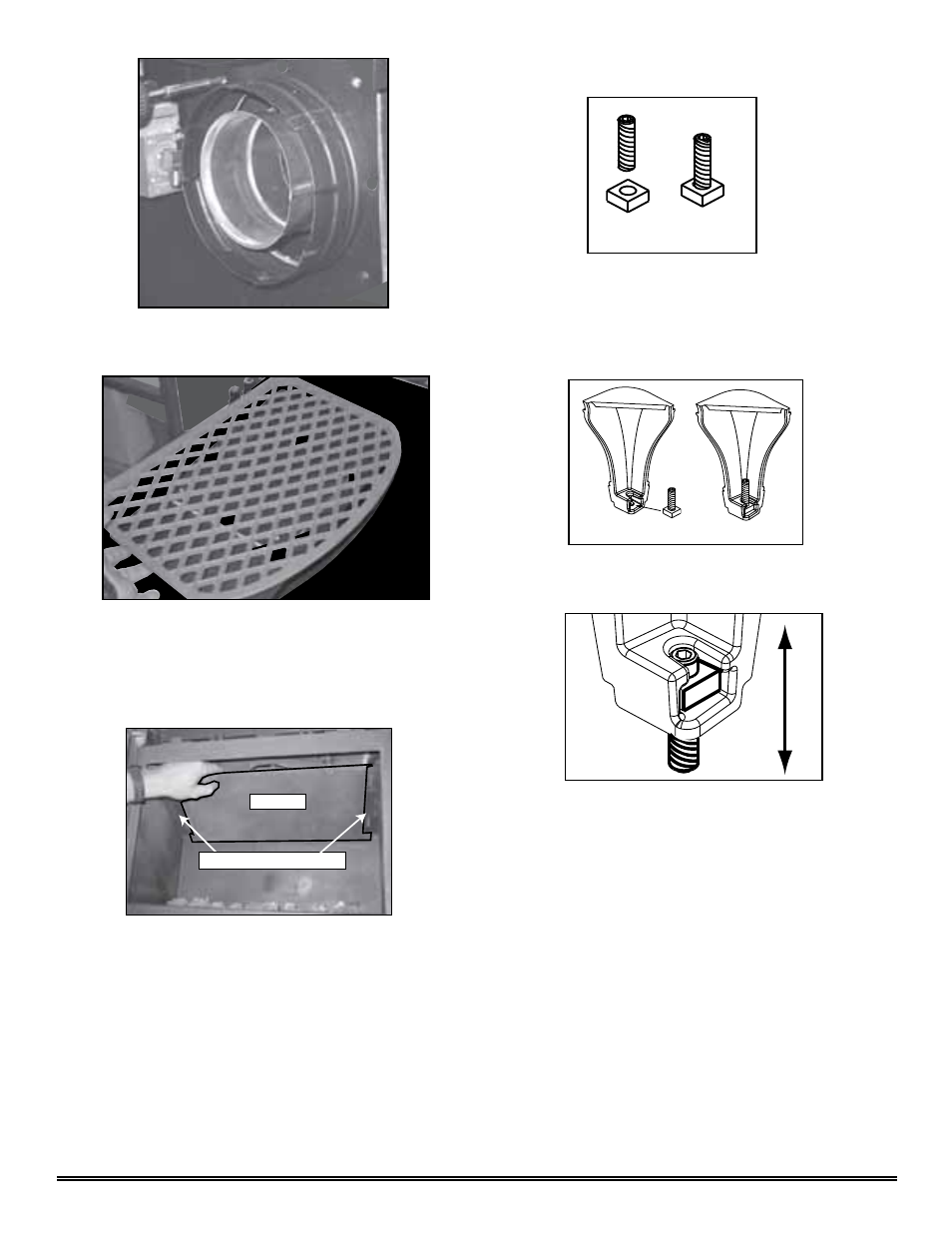

D. Baffle Installation/Adjustment
BAFFLE
BAFFLE RETAINERS
Figure 8.7 Position baffle on top of baffle retainers on left and
right sides. Centering baffle on retainers, ensure that the dark
painted bevelled edge and darker painted baffle bottom side
faces toward the front viewing area of the firebox. Bend the
center tabs up to prevent the baffle from sliding out.
Figure 8.5 Install the vent pipe adapter with gasket or high-temp
silicone to the rear vent opening.
Figure 8.6 Place the grille gently into the opening on top of
the appliance.
Figure 8.8 Thread Allen bolts through nuts until flush.
NOTE: Two Allen bolts and two nuts are included in the
component bag. Normally, only one is required on the leg
not touching the floor.
E. Leg Leveling System
Figure 8.9 Slide assembled nuts and bolts into slots on legs
with the nuts on the bottom.
Figure 8.10 Use a 5/32 in. 4mm) Allen wrench to adjust legs
up and down to desired level.
