Heat & Glo • Bravo • 704-902 Rev. F • 10/08 7

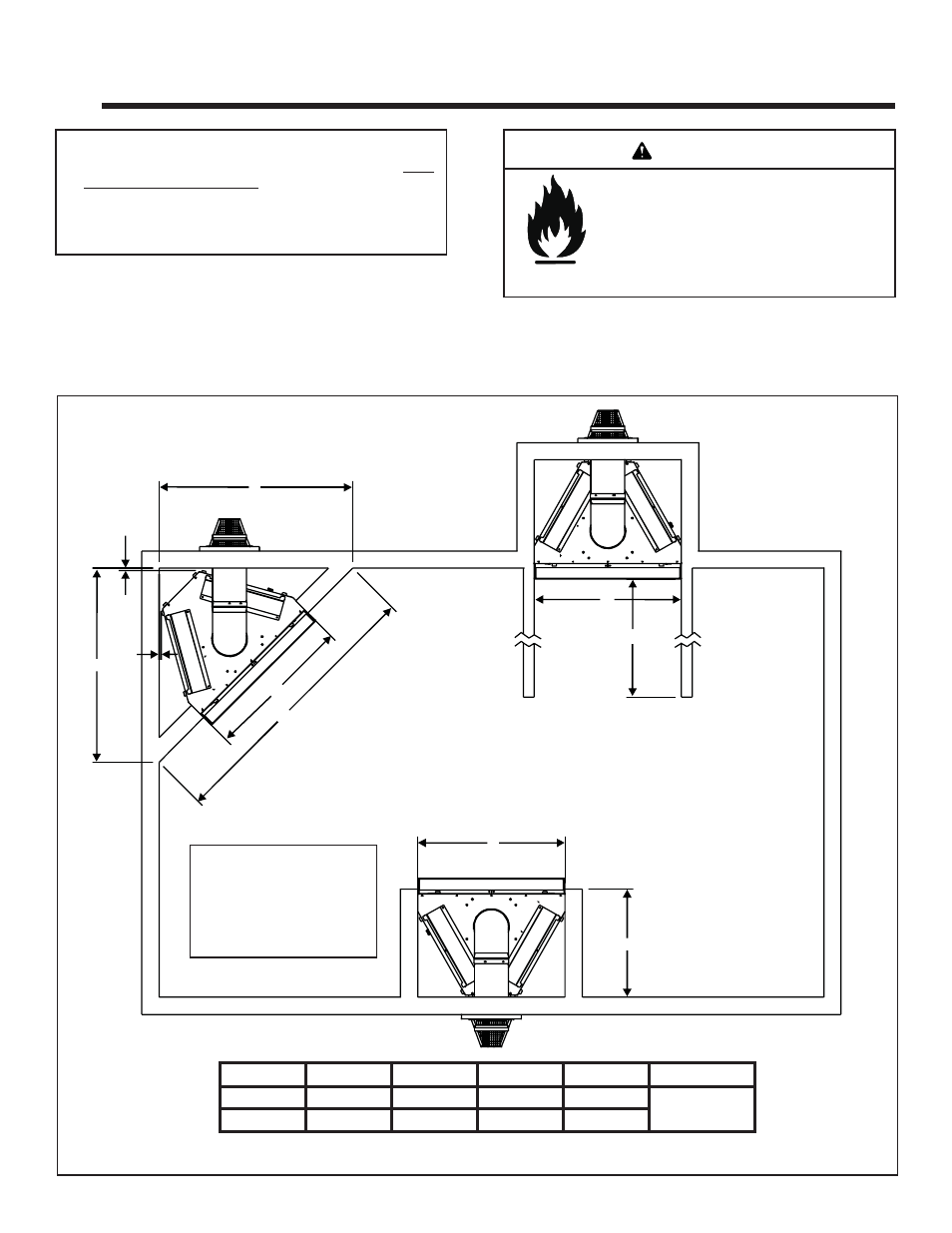

Figure 3.1 Appliance Locations
A B C D E
Inches 45-1/8 34-3/8 63-7/8 25-1/4
No maximum
Millimeters 1146 873 1622 641
A
½
½
A
B
C
B
E
B
D
In addition to these framing dimensions, also reference the following sections:
• Clearances and Mantel Projections (Section 3.C and 3.D)
• Vent Clearances and Framing (Section 6).
Note: These dimensions
are for fl ush wall fi nishing
method. For a recessed
arch fi nishing method refer
to Option B in Finishing
(Section 11).
3 3
Framing and Clearances
Note:
• Illustrations reflect typical installations and are FOR
DESIGN PURPOSES ONLY.
• Illustrations/diagrams are not drawn to scale.
• Actual installation may vary due to individual design
preference.
Fire Risk
Provide adequate clearance:
• Around air openings
• To combustibles
• For service access
Locate appliance away from traffi c areas.
A. Selecting Appliance Location
When selecting a location for your appliance it is important to
consider the required clearances to walls (see fi gure 3.1).
Note: For actual appliance dimensions refer to Section 16.
WARNING
