WHT

BLK

GRN wire
inside box

Copper
ground attached
to GRN screw with
GRN wire

14/2WG

Cover Plate
outside firebox

Romex
Connector

If the box is being wired from the OUTSIDE of
the appliance:

• Remove the cover plate located on the outer

shell - right side (see Figure 10.3).

• Install the supplied Romex

™

connector in the

cover plate.

• Feed the necessary length of wire through the

connector.

• Make all necessary wire connections and reat-

tach the cover plate to the outer shell.

If the box is being wired from the INSIDE of the

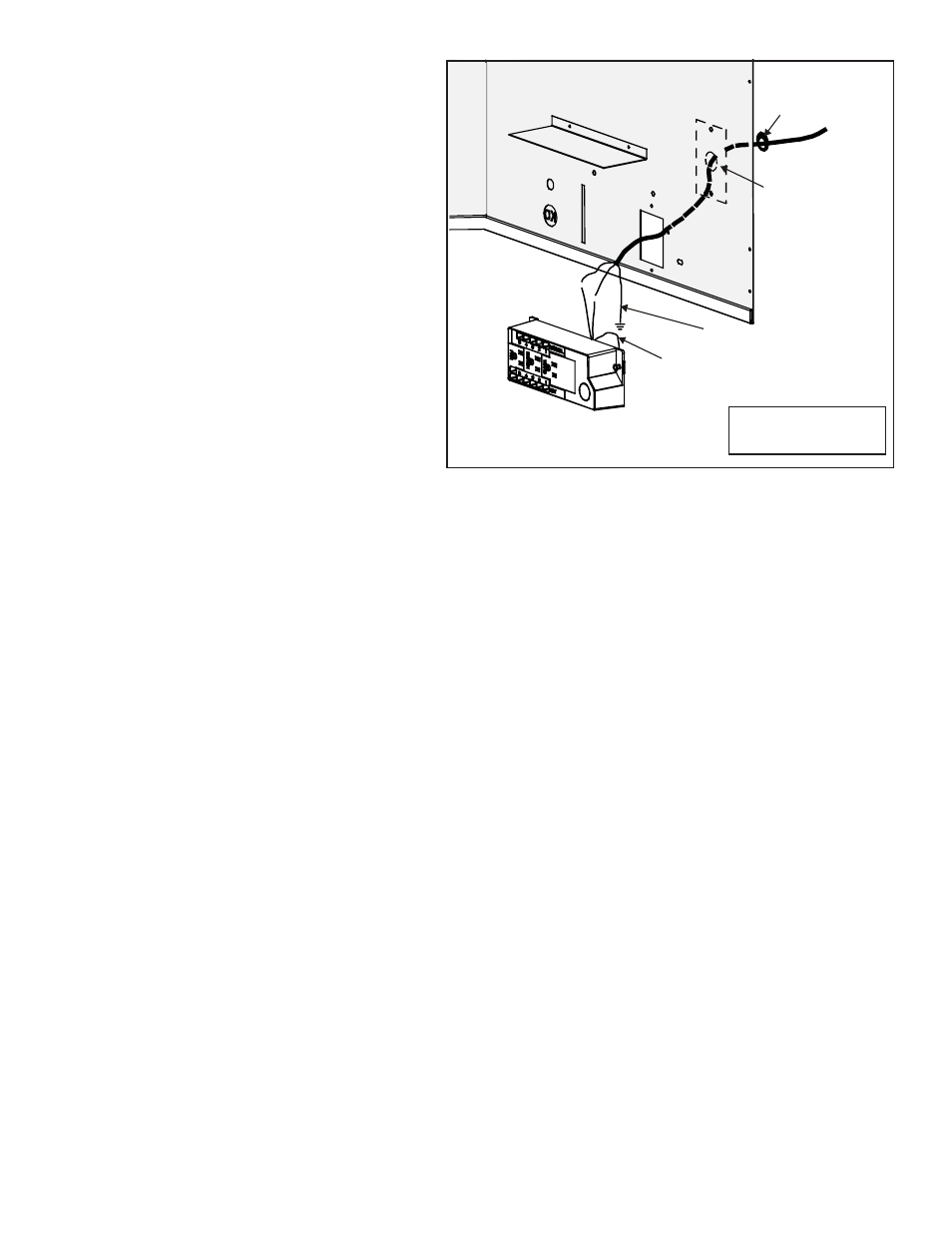

Figure 10.3 Junction Box Detail

• Feed the necessary length of wire through the connector.

• Make all necessary wire connections to the junction box/re-

ceptacle and assemble the junction box/receptacle to the outer
shell.

appliance:

• Remove the screw attaching the junction

box/receptacle to the outer shell, rotate the
junction box inward to disengage it from the
outer shell (see Figure 10.3).

• Pull the electrical wires from outside the ap-

pliance through this opening into the valve
compartment.

Note: Do NOT wire
110VAC to wall switch.

E. Junction Box Installation
