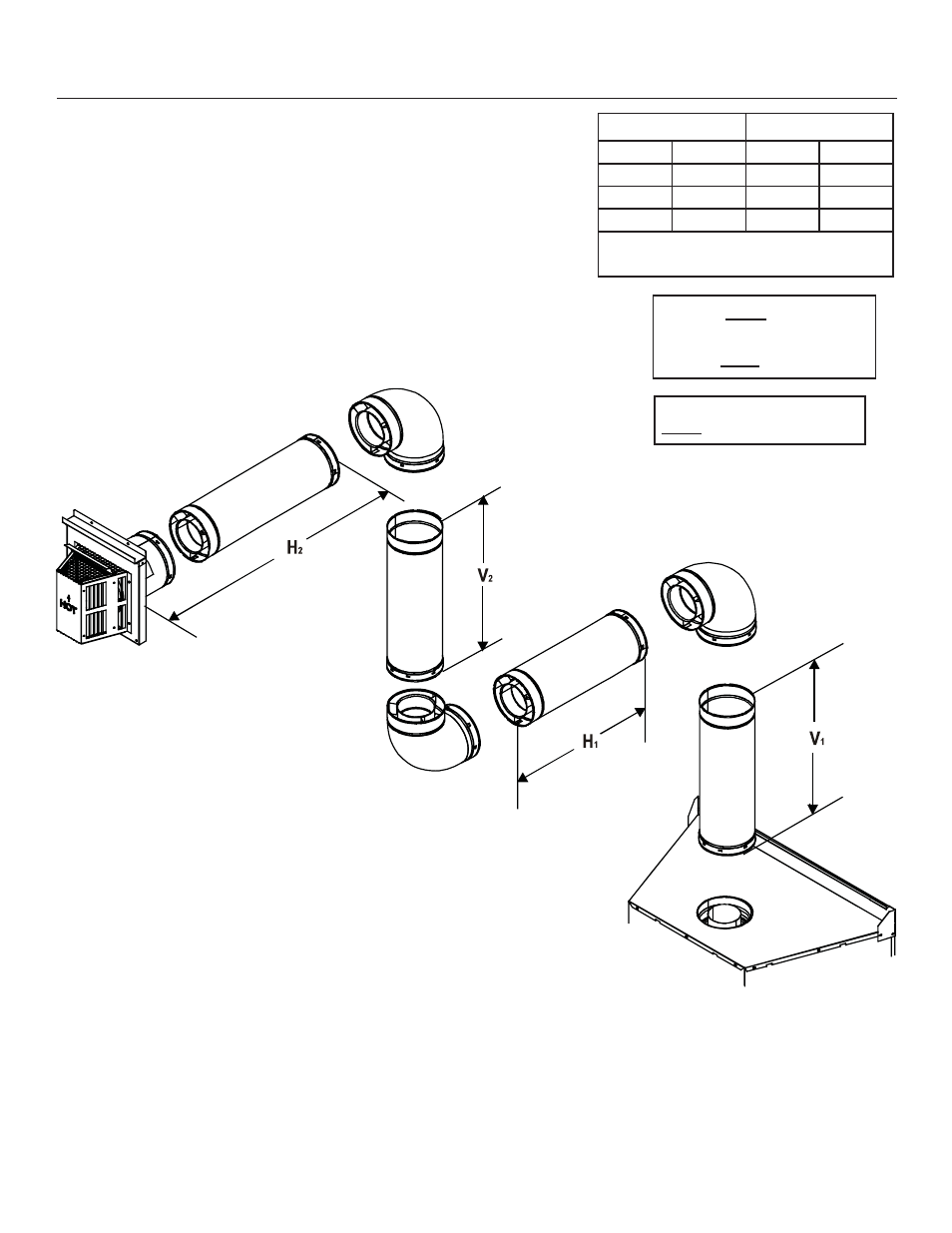

Figure 5.5
1. Top Vent - Horizontal Termination - (continued)
Three Elbows V
1
+ V
2
Minimum H
1
+ H
2
Maximum
3 ft. 0.9 m 2 ft. 0.6 m
4 ft. 1.2 m 4 ft. 1.2 m
5 ft. 1.5 m 6 ft. 1.8 m
12 ft. 3.7 m 20 ft. 6.1 m
V
1
+ V
2
+ H
1
+ H
2
= 40 ft. (12.2 m) Maximum
H
1
+ H
2
= 20 ft. (6.1 m) Maximum
Note: The first elbow used
MUST always be DVP90ST.
Note: V
1
MUST be a minimum
of 3 feet unless using the TAOS
surround. For TAOS surround, V
1
minimum MUST be 30 in.
