How to remove the stand, How to attach the stand – Hitachi L19D103 User Manual

Page 39

ENGLISH

NOTE:
• Unplug the AC cord from the AC INPUT terminal.
• Before beginning this process, assure that TV is laid on a clean, safe, and cushioned space to avoid any damage to the unit.
• Do not touch or press the TV-screen, glass might break under pressure.

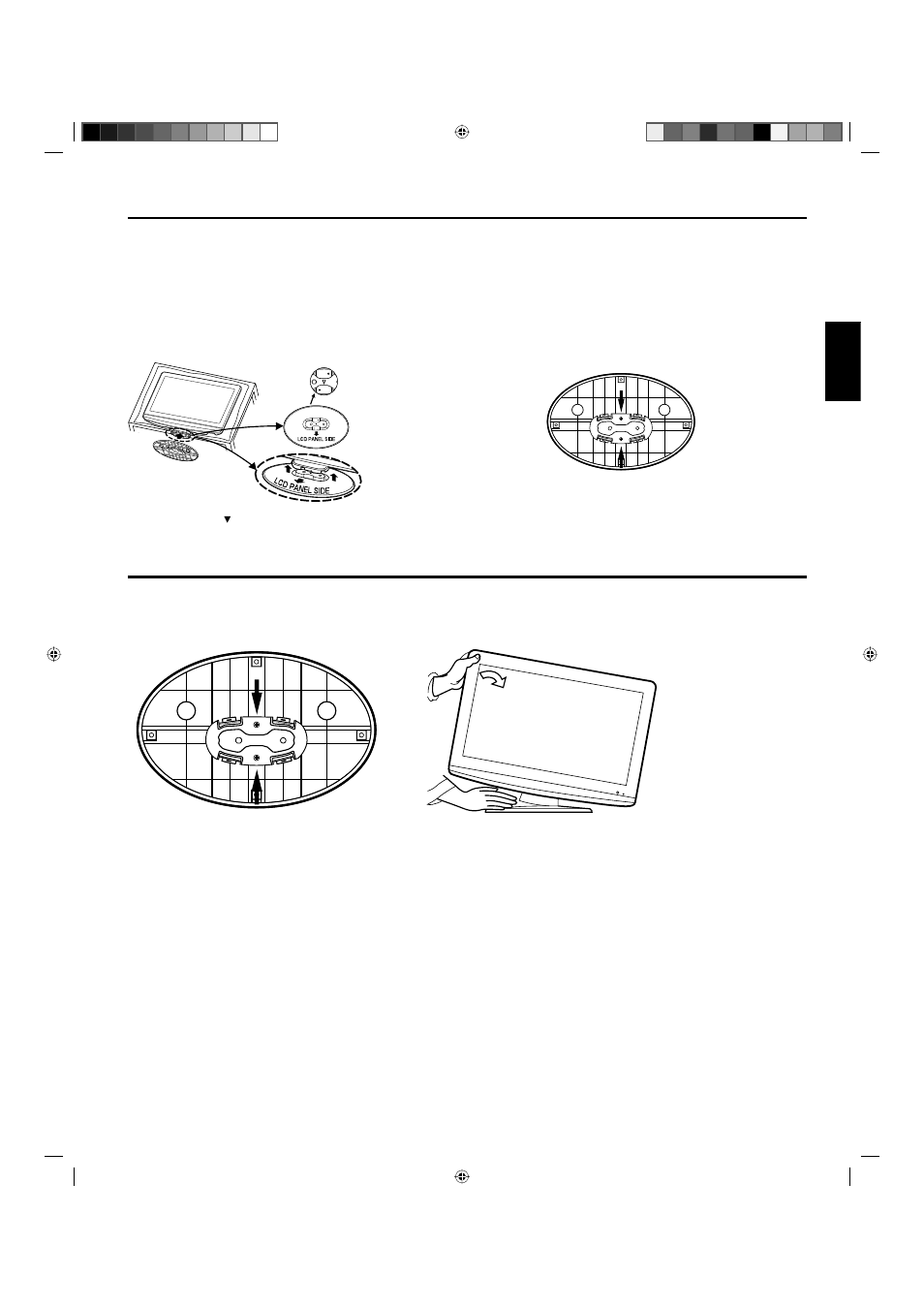

Place the TV on its back onto a table.
Align the stand’s bottom-plate as seen here.
It will fi t in only one direction.
Press it in direction of arrow until you hear a ‘click’.

How to remove the stand

When you transport this product, remove the stand and pack fl at against the back of the unit in the carton. To remove the stand,
remove the two (2) screws from the bottom (see A), and hold the stand on a fl at surface lifting one side of the unit until stand
disconnects (see B).

For wall mounting, the base must be removed. To disconnect the base/stand remove the two (2) screws from the back (see page 6).

Finally secure the bottom-plate with 2 screws.

Please assure the “ ” mark on the stand is facing the LCD panel side.

How to attach the stand
