Capabilities: With this hookup, you should now be able to perform all the basic functions
provided by this equipment.
External or Internal 300 Ohm Antenna
If you have either an external or internal (rabbit ears) antenna rather than cable, you may have
300 ohm connectors like these.
In this case, you will need special adapters to make the 75 ohm round wire connection shown
below. (You may already have one on your TV.)
1. Remove the antenna line from the back of your TV if it is already connected there, or take it
from where it comes in on the wall.
2. Considering the three pictures below, determine which adapter you will need to hook it into
your VCR.

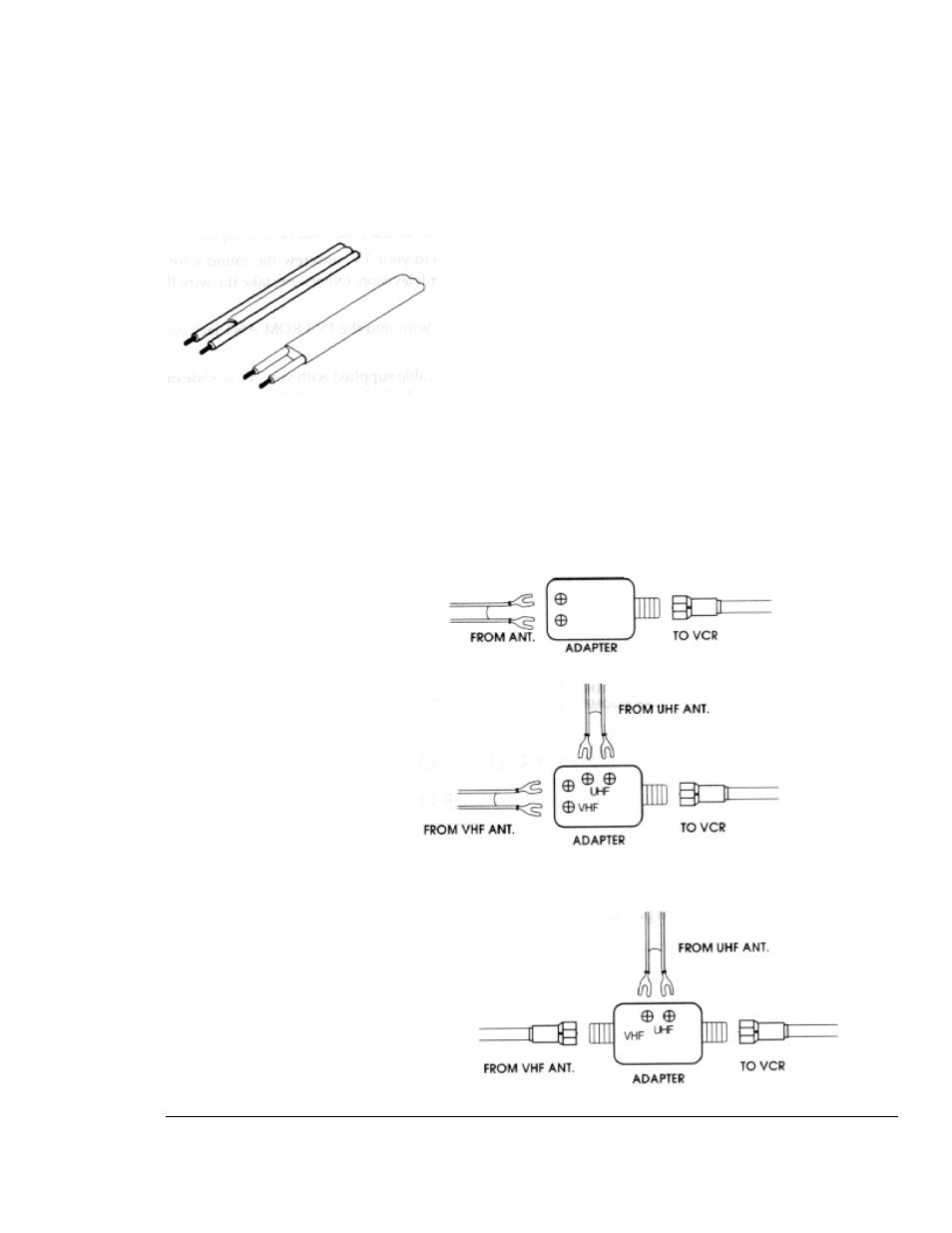

If you have Use this adapter
Single 300 ohm flat wire
Separate UHF and VHF
antenna wires, both 300 ohm
flat wire
300 ohm flat UHF and 75 ohm
round VHF
If you have "rabbit ears" (an antenna on top of your TV), you will need an additional adapter and
